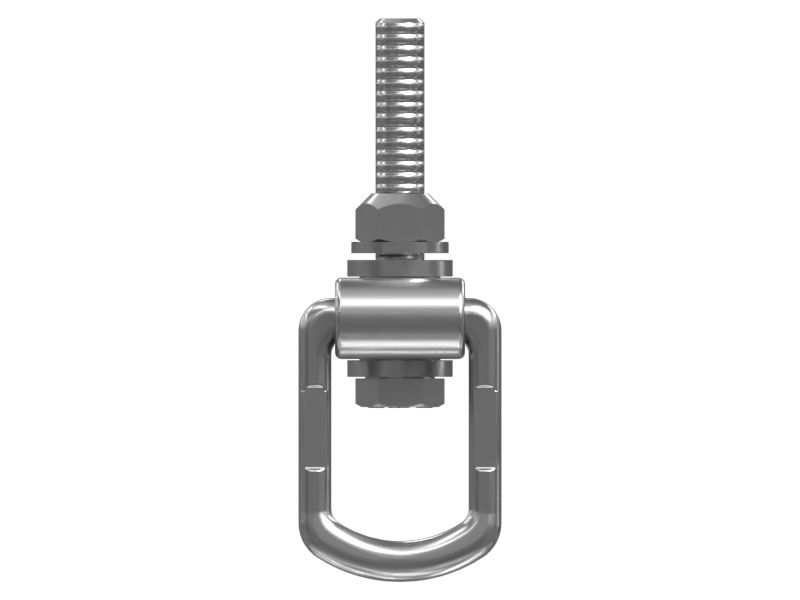

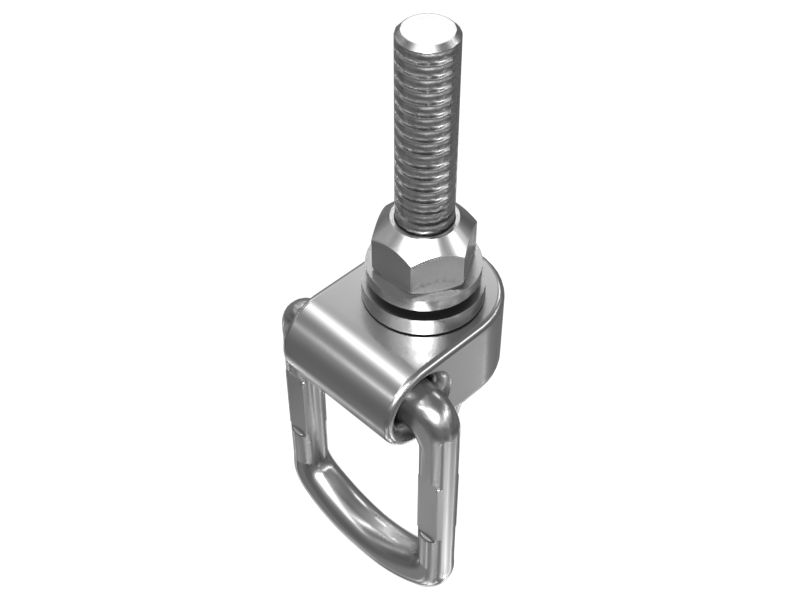

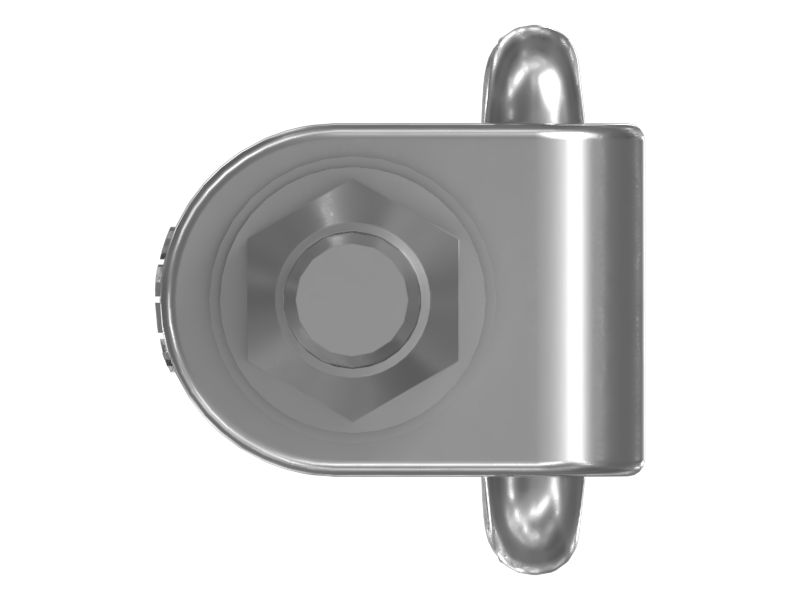

422-1782: M12 VLBG Load Ring

The Variable Length Load Ring provides a secure attachment point for loads in different lifting and rigging operations. Built to swivel and rotate under load, the load ring ensures optimal alignment with the lifting direction, reducing the risk of side loading and enhancing safety during lifting operations. It is equipped with a bolted connection to be firmly secured to structural elements, providing a reliable lifting point capable of withstanding weight and dynamic forces.

Attributes:
• Rotates 360 degrees for optimal load alignment during lifting operations.
• Provides a working load limit of 1000 kilograms (2205 pounds).
• High load-bearing capacity supports substantial weights safely.

Applications:
The Variable Length Load Ring is used to provide an adjustable and secure attachment point for lifting slings, chains, and hooks, facilitating the safe and efficient handling of loads.

• Overall Width (mm): 54

• Overall Width (in): 2.126

• Overall Height (mm): 201

• Overall Height (in): 7.913

• Thread: M12x1.5

• Weight (kg): 0.43

• Weight (lb): 0.948

• Material: Carbon Steel
