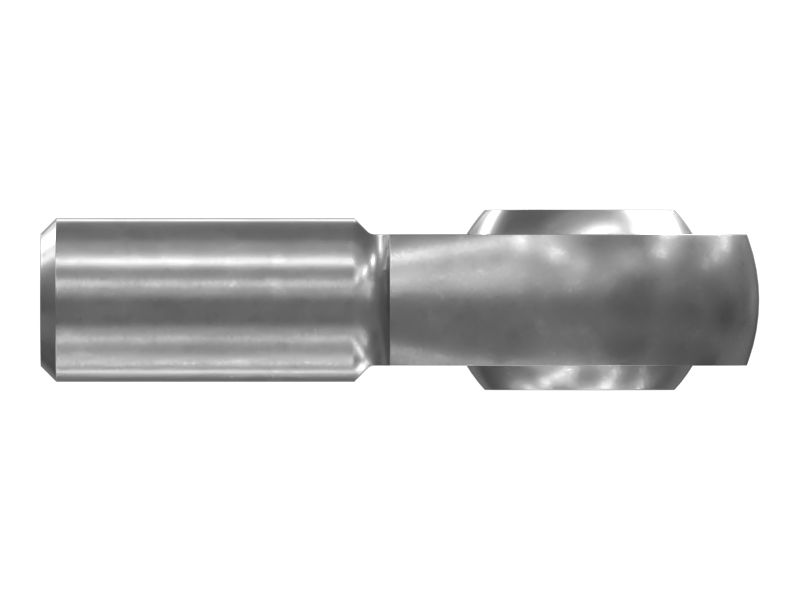

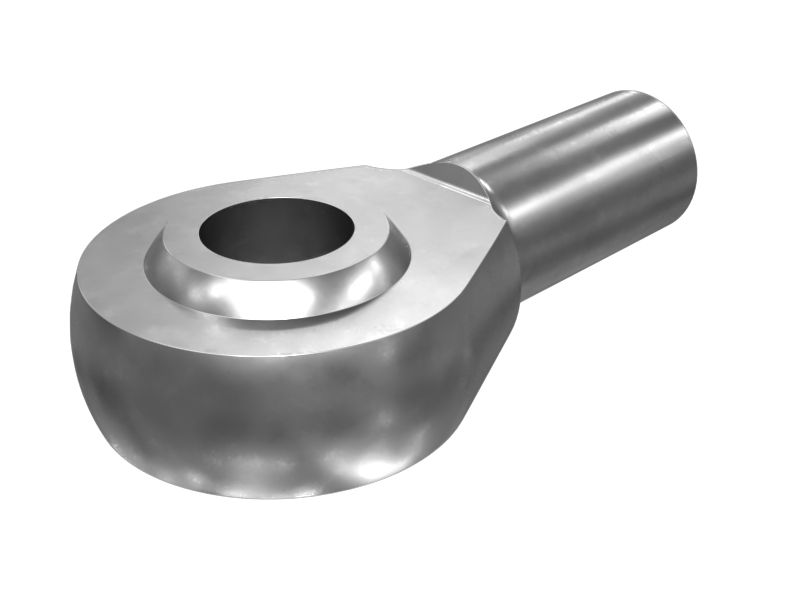

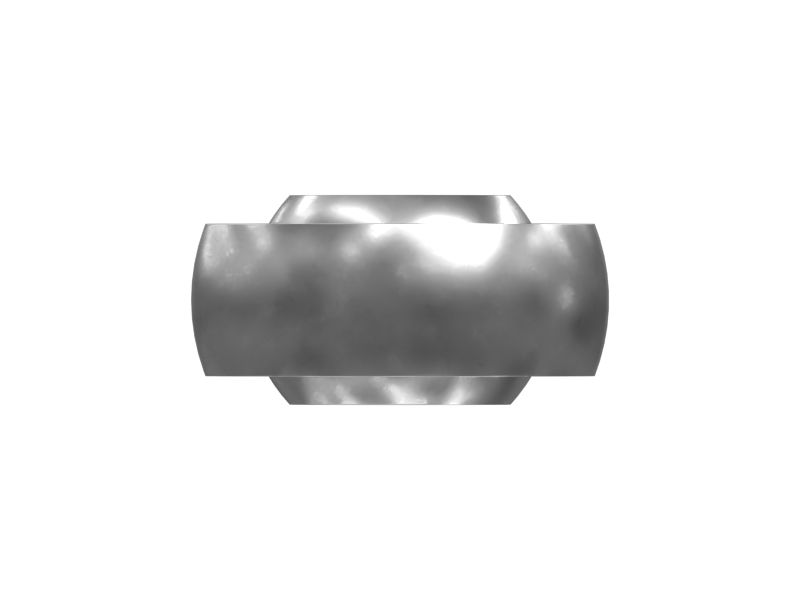

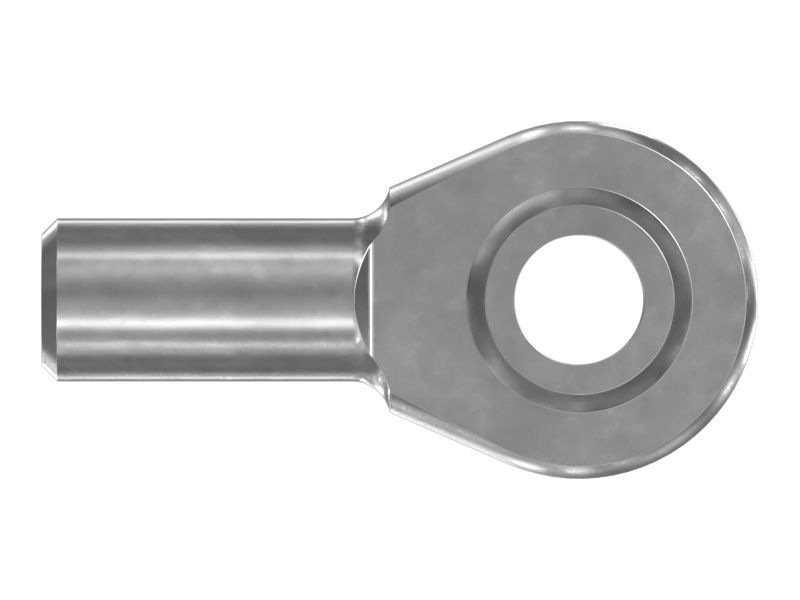

417-8958: ПОДШИПНИК — ШТОК

Description:
Cat® spherical rod ends are manufactured for long service life, minimal maintenance, and high operational reliability. Spherical rod ends provide a mechanical articulating joint that accommodates oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the attached shaft. Spherical rod ends consist of an eye-shaped head with an integral shank that forms the housing for a spherical bearing. Bearings reduce friction and provide protection between mating parts. They are specifically designed for low to medium speed, high load applications with little to medium side thrust.

Attributes:
• Length: 104.8 mm (4.125 in)
• Thread Size: 1-1/4-12
• Thread Length: 54 mm (2.125 in)
• Material: Steel
• Zinc plated body
• Large load capacity
• Easy mounting and dismounting
• Suitable for heavy static or alternate loads, and shock loads

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Length to Pin Hole - A (mm): 104.8

• Rod End Diameter - B (mm): 69.8

• Thread Size (in): 1-1/4-12

• Length to Pin Hole - A (in): 4.125

• Rod End Diameter - B (in): 2.748

• Material: Low Alloy Steel
