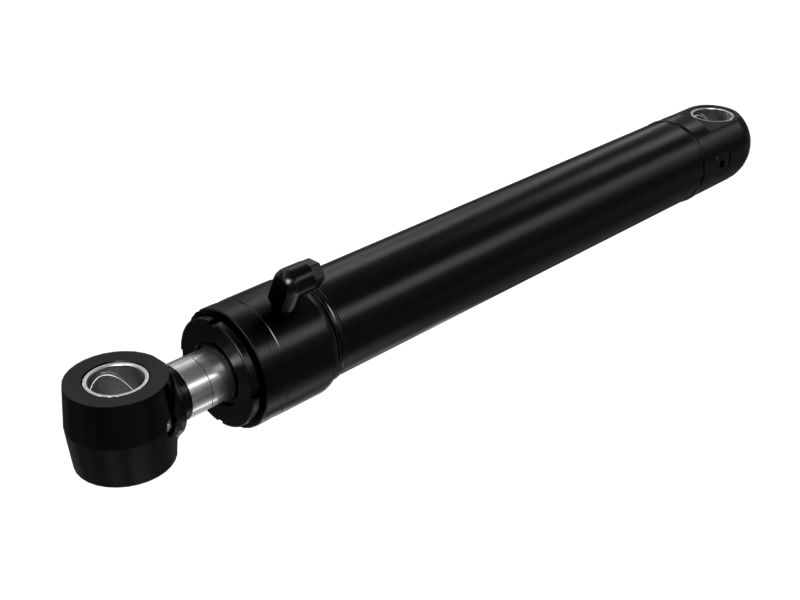

417-4786: Cylinder Group

Description:
Cat® Cylinder Groups are used to service hydraulic systems of heavy-duty equipment. Quality for your rugged work environment. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.
Stroke Length : 698 mm (27.480 in)
Closed Length : 1040 mm (40.944 in)
Open Length : 1738 mm (68.425 in)
Port Thread Size : 1-1/16-12 (in)
Grease Hole Thread Size : 1/8-27 (in)
Test Pressure : 380 bar (5511.434 in)

Application:
Cat® Hydraulic cylinder arrangements are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 1155

• Overall Length (in): 45.47

• Overall Width (mm): 183

• Overall Width (in): 7.2

• Overall Height (mm): 135

• Overall Height (in): 5.31

• Bore Diameter (mm): 105

• Bore Diameter (in): 4.13

• Rod Diameter (mm): 60

• Rod Diameter (in): 2.36

• Thread Size (in - TPI) (in): 13/16-16

• Working Pressure (kPa): 24500

• Working Pressure (psi): 3553.424

• Weight (kg): 59

• Weight (lb): 130.07

• Material: Carbon Steel
