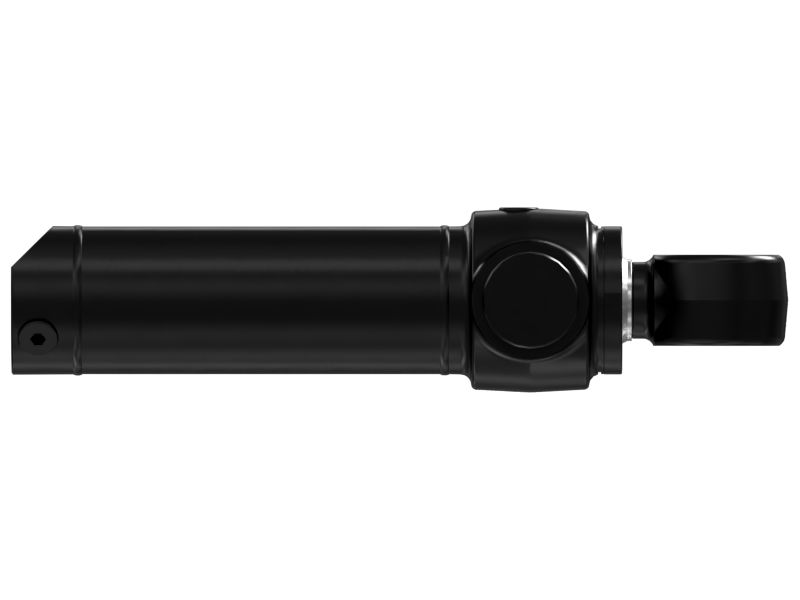

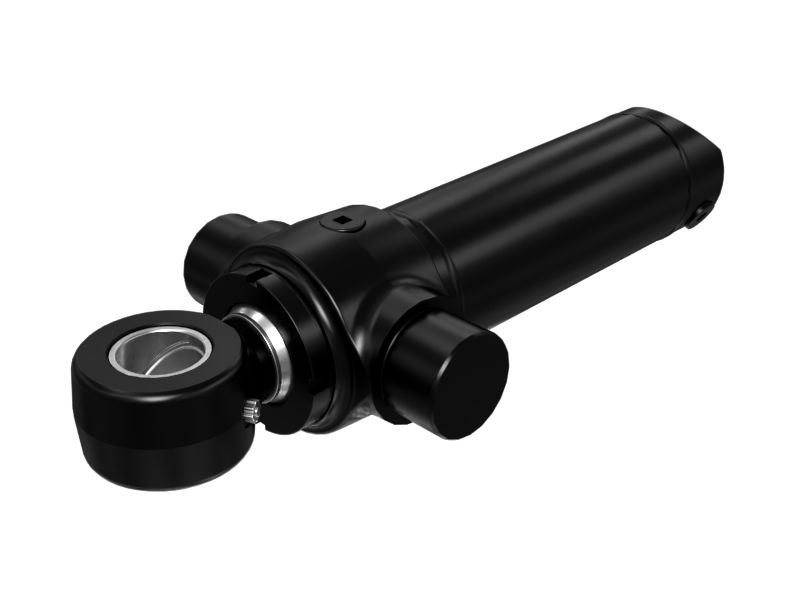

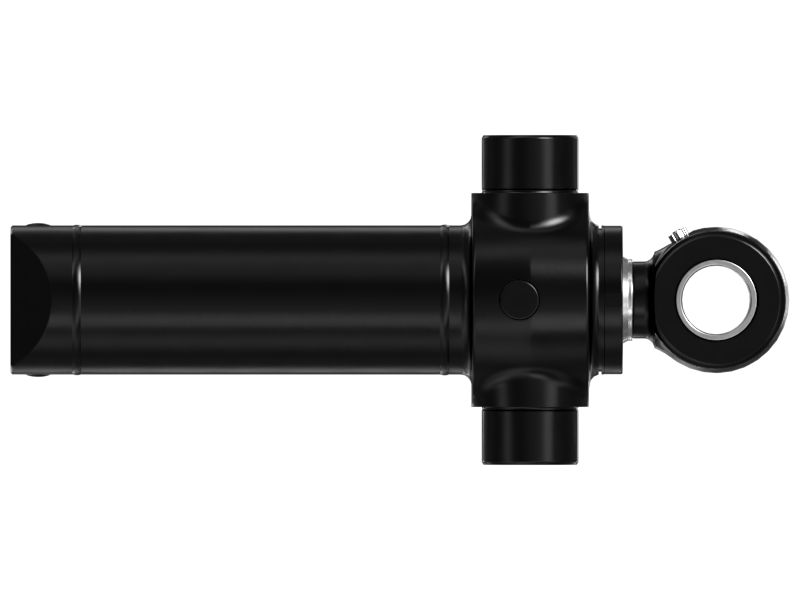

417-4783: Cylinder Group

Description:
Cat® Cylinder Groups are used to service hydraulic systems of heavy-duty equipment. Quality for your rugged work environment. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.
Stroke Length : 249 mm (9.803 in)
Closed Length : 135 mm (5.314 in)
Open Length : 384 mm (15.118 in)
Port Thread Size : 1-1/16-12 (in)
Test Pressure : 380 bar (5511.434 in)

Application:
Cat® Hydraulic cylinder arrangements are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 565

• Overall Length (in): 22.24

• Overall Width (mm): 239

• Overall Width (in): 9.41

• Overall Height (mm): 134.5

• Overall Height (in): 5.3

• Bore Diameter (mm): 90

• Bore Diameter (in): 3.54

• Rod Diameter (mm): 55

• Rod Diameter (in): 2.17

• Thread Size (in - TPI) (in): 1/8-27

• Working Pressure (kPa): 24500

• Working Pressure (psi): 3553.424

• Weight (kg): 36.5

• Weight (lb): 80.47
