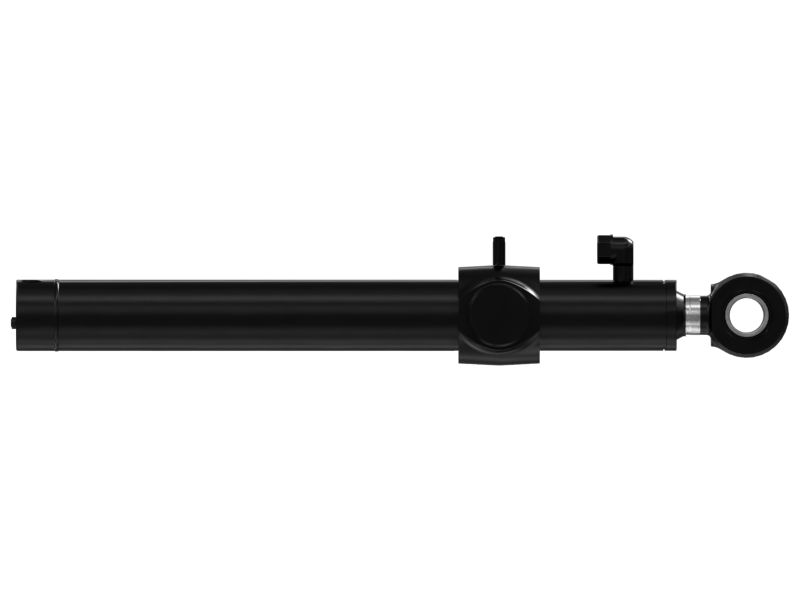

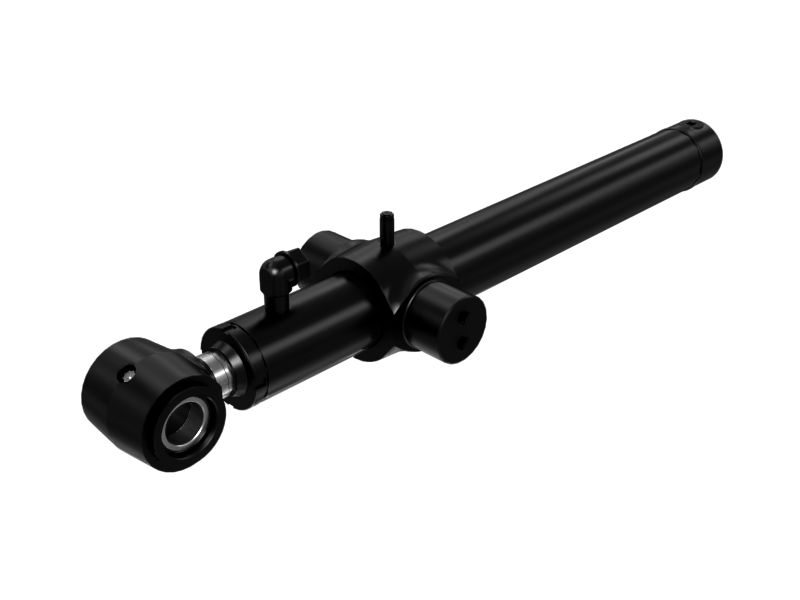

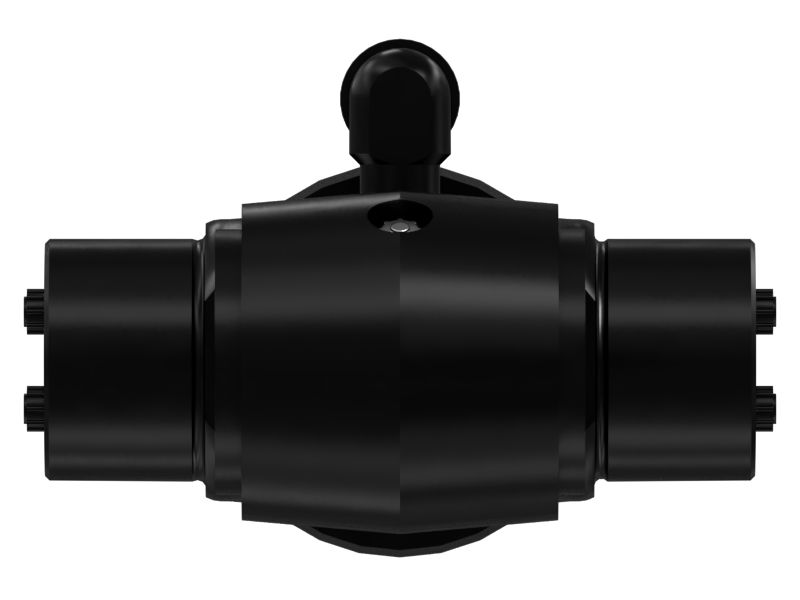

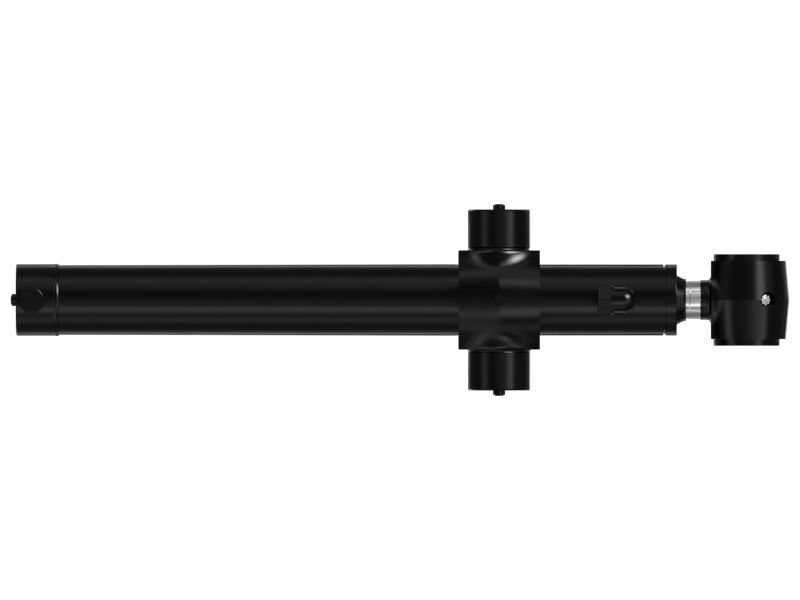

417-4781: Cylinder Group

Description:
Cat® Cylinder Groups are used to service hydraulic systems of heavy-duty equipment. Quality for your rugged work environment. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.
Stroke Length : 642 mm (25.275 in)
Closed Length : 321 mm (12.637 in)
Open Length : 963 mm (37.913 in)
Port Thread Size : 7/8-14 (in)
Grease Hole Thread Size : 1/8-27 (in)
Test Pressure : 380 bar (5511.434 in)

Application:
Cat® Hydraulic cylinder arrangements are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 1009

• Overall Length (in): 39.72

• Overall Width (mm): 170

• Overall Width (in): 6.69

• Overall Height (mm): 248

• Overall Height (in): 9.76

• Bore Diameter (mm): 80

• Bore Diameter (in): 3.15

• Rod Diameter (mm): 50

• Rod Diameter (in): 1.97

• Thread Size (in - TPI) (in): 1-14

• Working Pressure (kPa): 24500

• Working Pressure (psi): 3553.424

• Weight (kg): 44

• Weight (lb): 97
