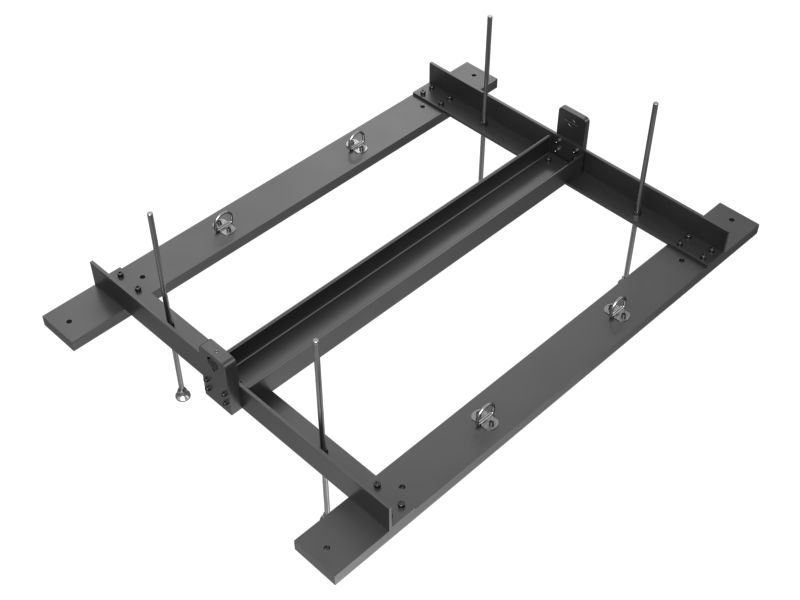

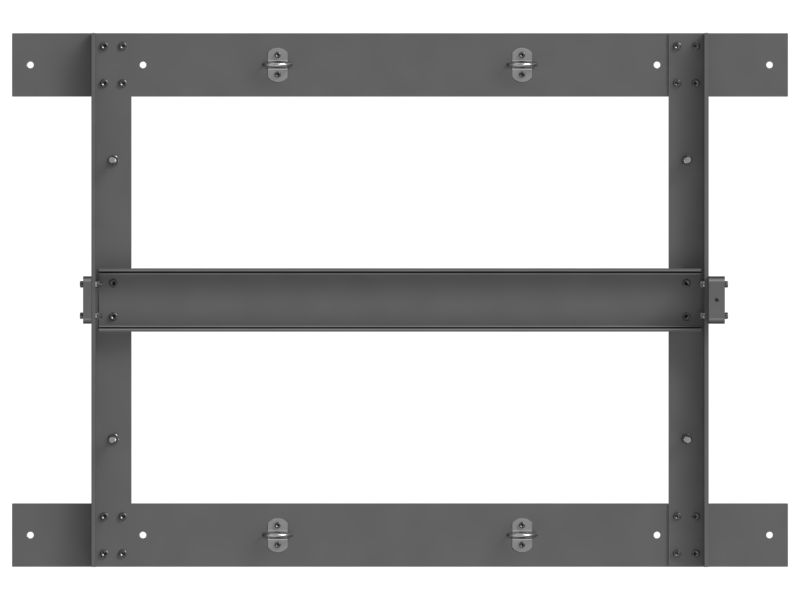

416-3253: Engine Stringer Locator Tool

An Engine Stringer Locator Tool locates and aligns engine stringers during the assembly and maintenance of equipment engines. Engine stringers serve as structural supports, ensuring that the engine remains securely mounted and aligned within its housing. This tool is to help technicians accurately position the stringers, ensuring proper alignment and load distribution for optimal engine performance and durability.

Attributes:
• Ensures accurate alignment of the engine stringer with the engine mounting points.
• Provides stable support for the engine stringer during positioning.
• Minimizes risk of misalignment during stringer installations of the engine.

Applications:
An Engine Stringer Locator Tool is used during the assembly and repair process, to position the engine stringers, which are located within the engine compartment of equipment.

• Overall Length (mm): 1253.3

• Overall Length (in): 49.343

• Overall Width (mm): 861.6

• Overall Width (in): 33.921

• Overall Height (mm): 512.3

• Overall Height (in): 20.169

• Weight (kg): 26.67

• Weight (lb): 58.797

• Material: Alloy Aluminum
