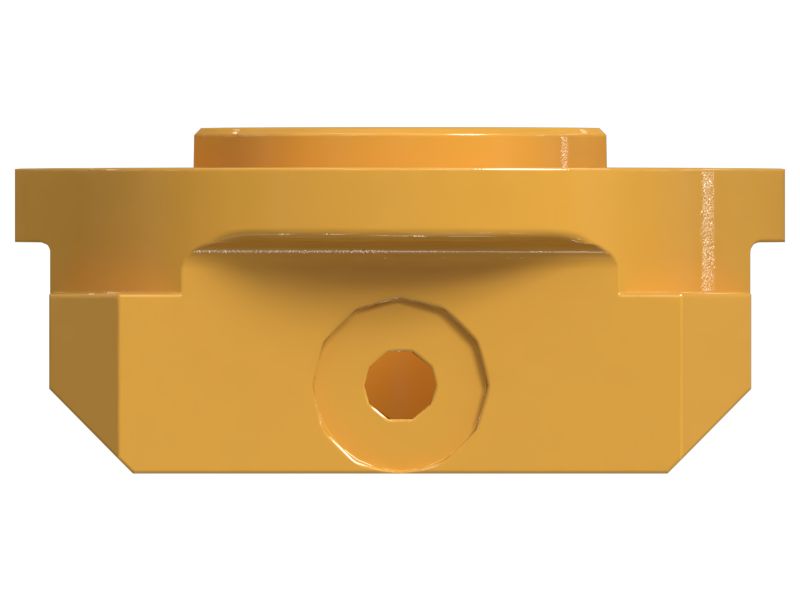

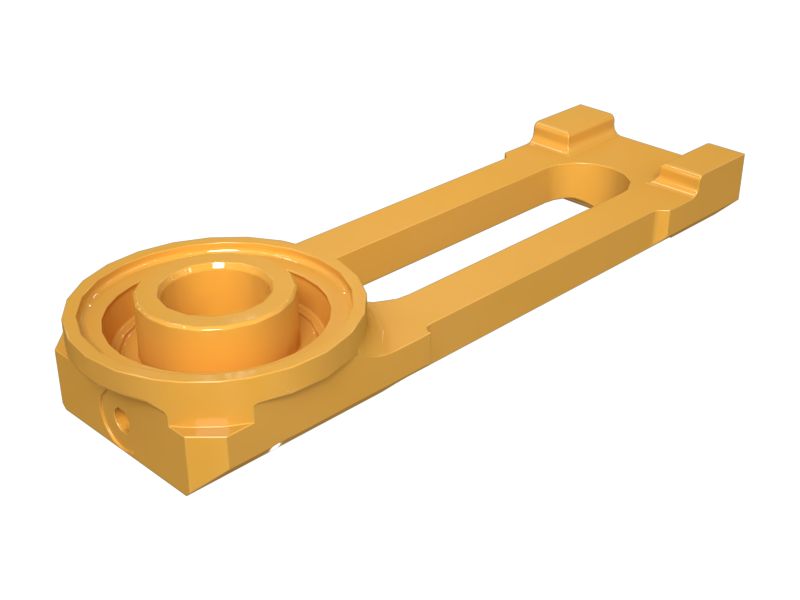

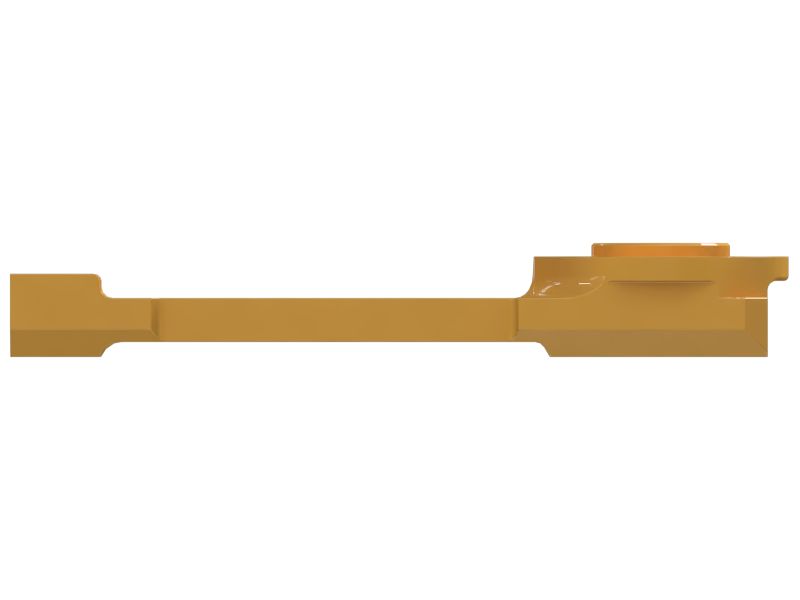

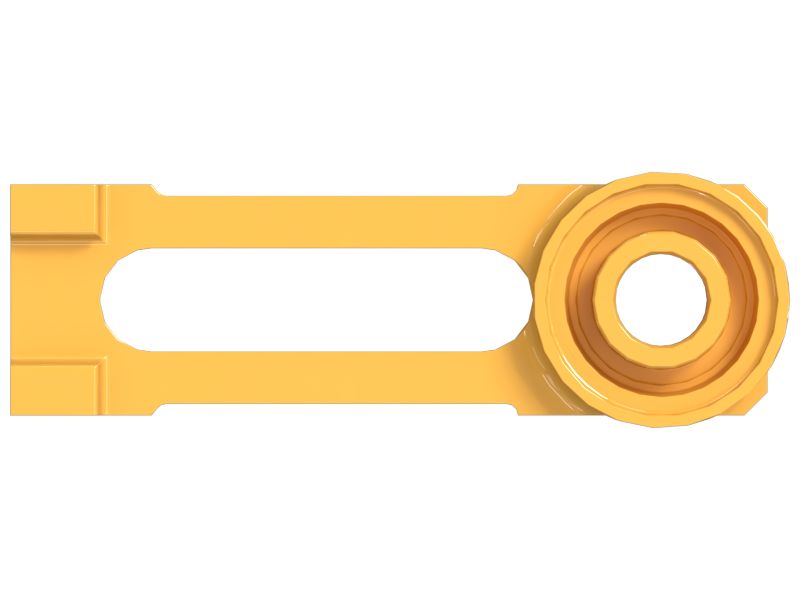

415-5200: ОПОРА НАПРАВЛЯЮЩЕГО КОЛЕСА

Description:
The Inner Idler Support serves as a connection point for other components within the idler wheel assembly. It connects to the frame or other parts of the undercarriage system, allowing for the secure attachment and proper functioning of the idler wheel. The inner idler support is typically a robust and sturdy component that is designed to bear the weight and forces exerted on the idler wheel. It helps maintain the alignment of the idler wheel and ensures that it remains properly positioned in relation to the track system.

Attributes:
• Incorporate features or mechanisms for adjusting the tension of the track system.
• Constructed from durable materials that provide the necessary strength.
• Resilience to withstand the heavy loads and harsh conditions encountered.

Application:
The Inner Idler Support in an idler wheel is a component that provides structural support and helps maintain the proper alignment and tension of the track system. They are mainly used in Cat 305, 305.5, 305.5E, 305E, 306, 306.5, and 307 Excavators.

• Inner Diameter (in): 1.57

• Inner Diameter (mm): 40

• Internal Thread: M12x1.75

• Outer Diameter (in): 4.37

• Outer Diameter (mm): 111

• Overall Length (in): 12.91

• Overall Length (mm): 328

• Weight (kg): 3.85

• Weight (lb): 8.49

• Width (in): 3.94

• Width (mm): 100

• Material: Ductile (Spheroidal) Iron
