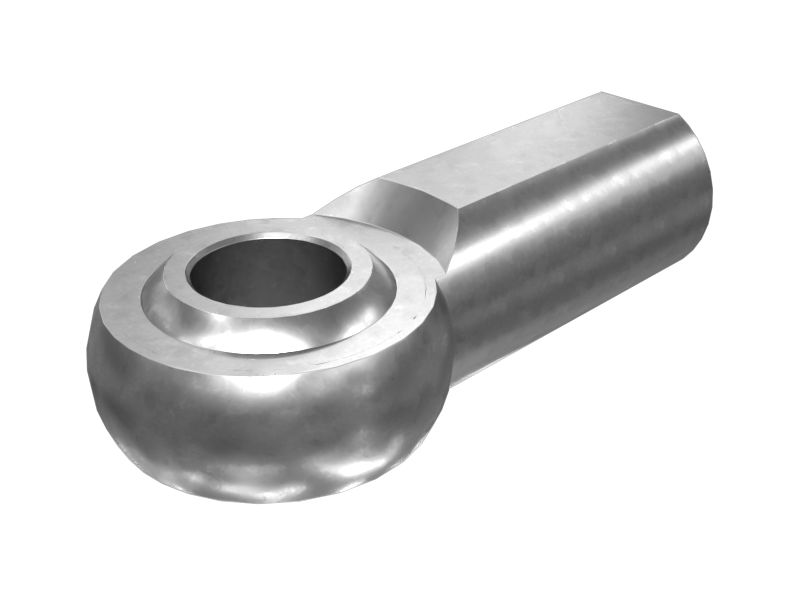

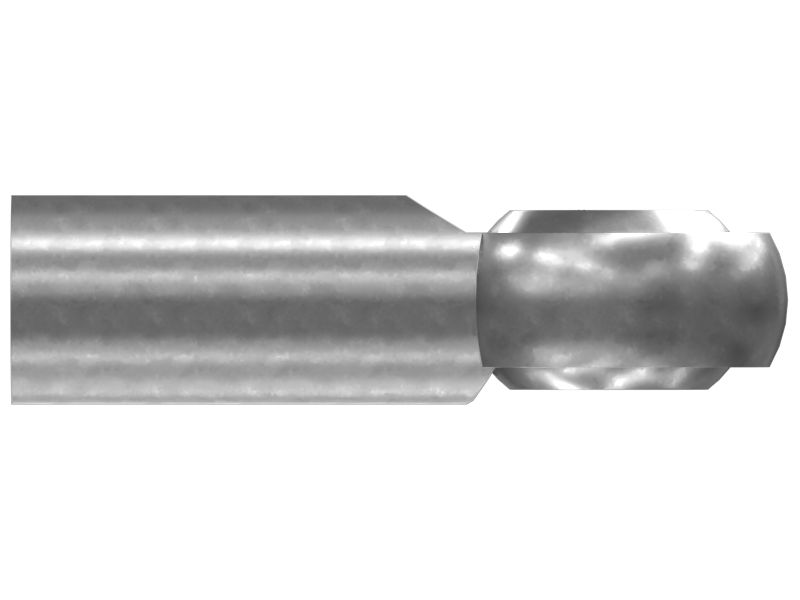

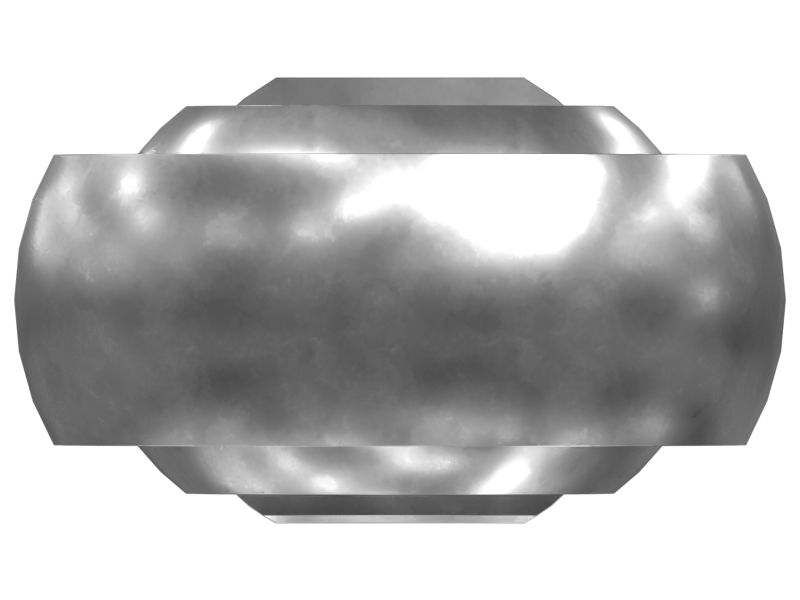

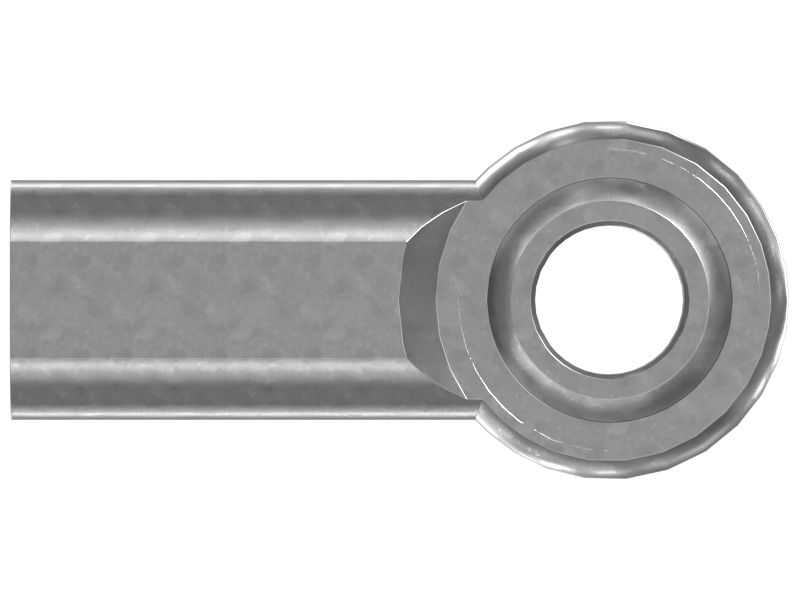

3U-7777: ГОЛОВКА ШАТУНА 5/8

Description:
Spherical rod ends, such as part # 3U-7777, are manufactured for long service life, minimal maintenance, and high operational reliability. Spherical rod ends to provide a mechanical articulating joint that accommodates oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the attached shaft. Spherical rod ends consist of an eye-shaped head with an integral shank that forms the housing for a spherical bearing. Bearings reduce friction and provide protection between mating parts. They are specifically designed for low to medium speed, high load applications with little to medium side thrust.

Attributes:
• Rod end with oil bronze bearing
• Size 10
• Pivot Angle: 16°
• Thread: 5/8-18 RH
• Eye Diameter: 15.88 mm (0.625 in)
• Length to Eye Centerline: 63.5 mm (2.50 in)
• Height: 19.05 mm (0.75 in)
• Head Diameter: 38.1 mm (1.50 in)
• Large load capacity.
• Easy mounting and dismounting.
• Suitable for heavy static or alternating loads, and shock loads.

Application:
Cat spherical rod ends are typically used in rod and linkage assemblies and control groups where strength and flexibility are crucial. Consult your owner's manual or contact your local Cat Dealer for more information.

• Rod End Type: Spherical

• Series Size: Size 10

• Length (mm): 63.5

• Inside Diameter (mm): 15.88 (Eye)

• Outside Diameter (mm): 38.1 (Head)

• Length (in): 2.5

• Inside Diameter (in): 0.63 (Eye)

• Outside Diameter (in): 1.50 (Head)

• Material: Other Mixed
