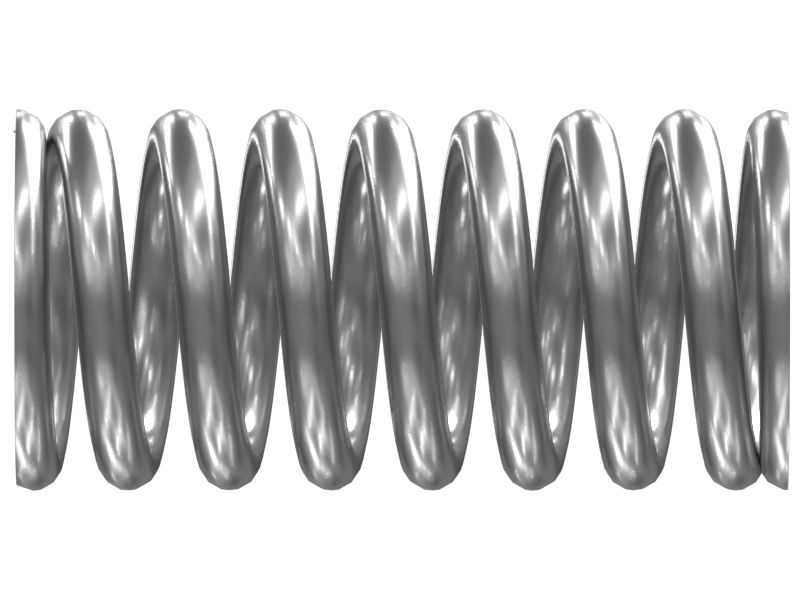

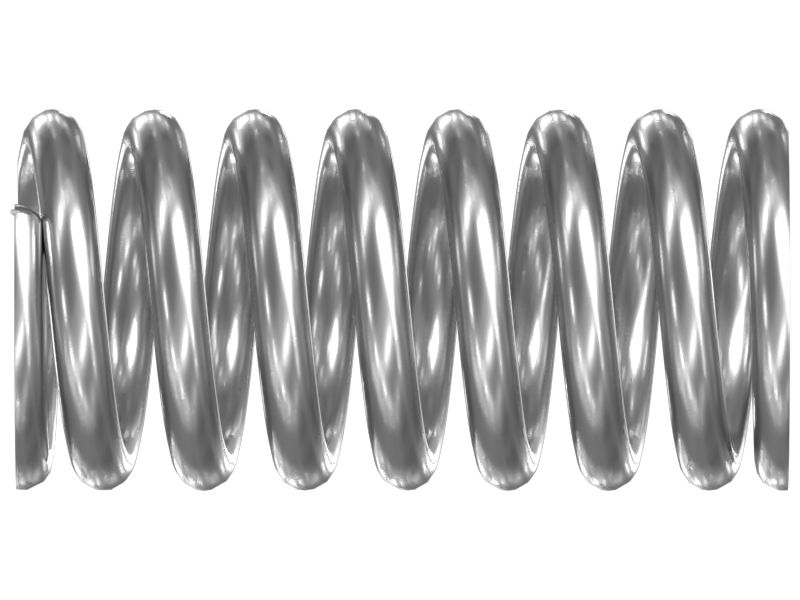

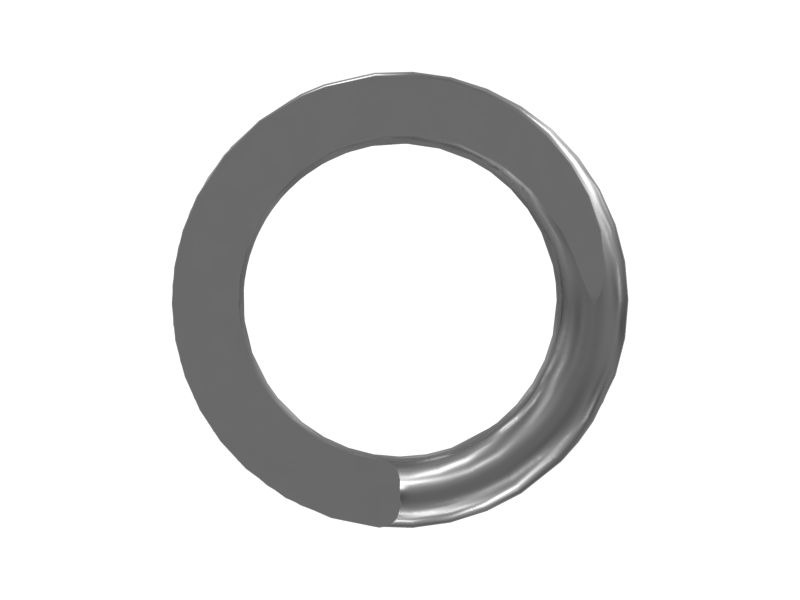

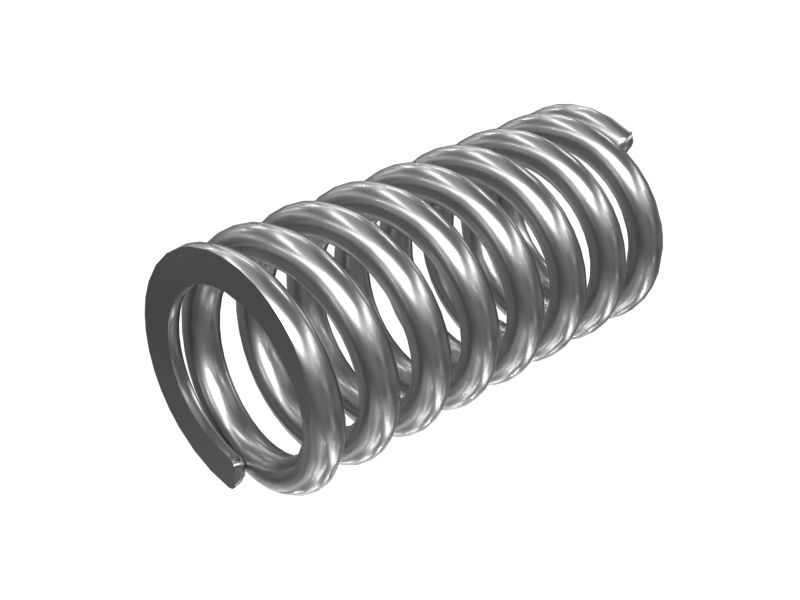

3T-3159: ПРУЖИНА

Description:
A Compression Spring is designed and constructed to resist the compressive load or force applied to it. When a compressive force is applied, the coils are compressed and the Spring stores the energy. The shape of the Compression Spring is cylindrical, with a helical coil that is tightly wound to resist Compression.

Attributes:
• Provided with total coils of 6 and active coils of 4 that help to maintain their shape and stability
• Provided with a spring rate of 4.55 N/mm, which provides high stiffness to the spring

Applications:
A Compression Spring is used to provide support and maintain proper alignment between parts. This Compression Spring is widely used in Cat Tree Harvester, Motor Grader, Excavators, Backhoe, Skidder, Harvester - 6 Wheel (Tree), Pipelayer, Wheel Tractor Scrapers, Track Type Tractor, Truck, Wagons, Wheel Type Tractor, Compactor, Wheel Loader, Track Loader, Powertrain, Articulated Truck, Paving Equipment, Telehandlers, Lift Truck.

• Length (in): 0.4

• Length (mm): 10.31

• Outside Diameter (in): 0.2

• Outside Diameter (mm): 5.1

• Spring Type: Compression

• Weight (kg): 1.5

• Weight (lb): 3.3

• Wire Size (in): 0.02

• Wire Size (mm): 0.6

• Material: Carbon Steel
