3P-3202: ПРУЖИНА

Description:

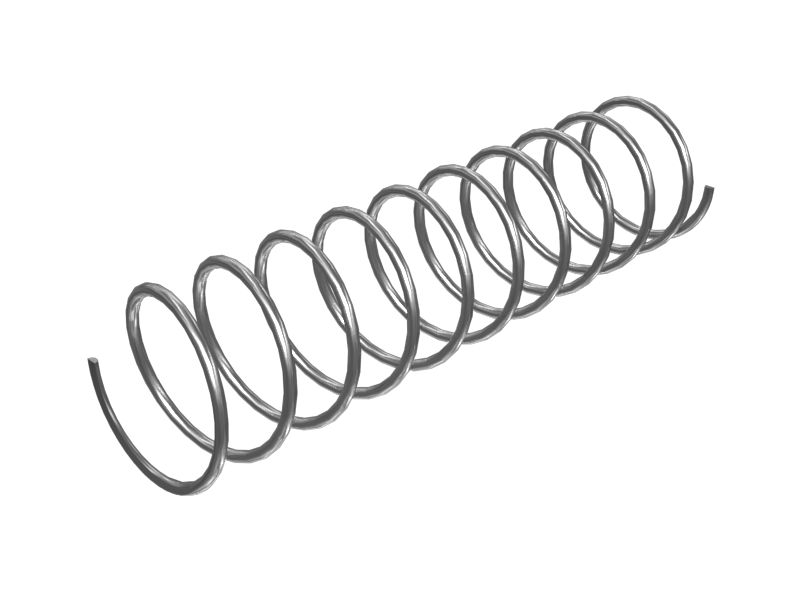

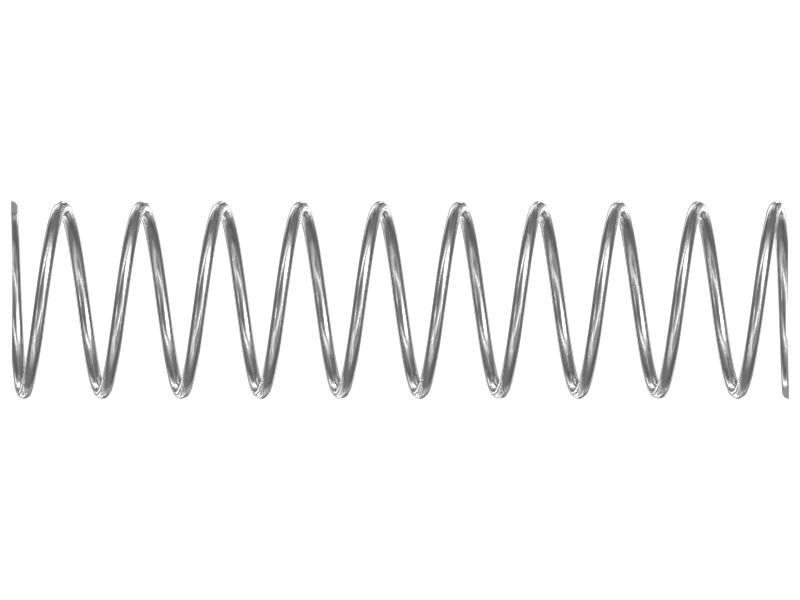

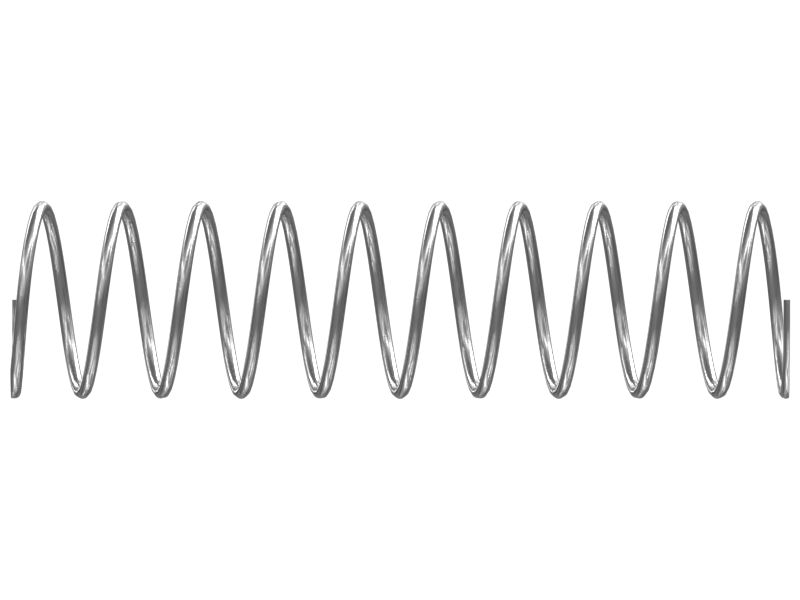

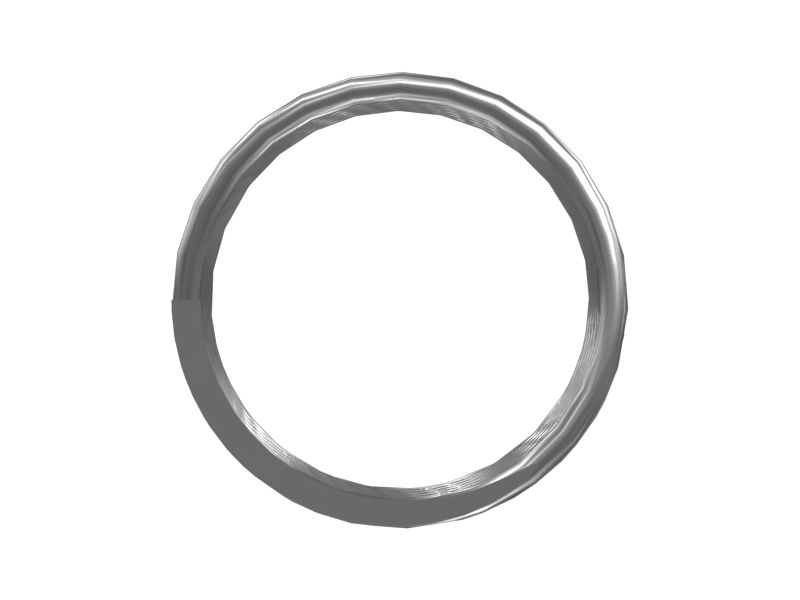

A Compression Spring is used in Valves to provide to close or open the valve. The compression spring is typically located inside the valve body and is compressed when the valve is in the closed position. As the spring compresses, it stores potential energy that is released when the valve is opened. This energy is then used to control the flow of fluid or gas through the valve.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Active coils of spring is 8.5
• Provided With Right-hand wound helical coil helps to maintain their shape and stability
• Provided with Square Ends because they provide a secure and stable for the spring to sit on a device or an assembly and Ground with 290°

Applications:
A Compression Spring is used in Control Valves to provide the required amount of force when compressed, this is widely used in Cat 517, 527, 527B, D4H, and D5H Skidder, 54, 55, 55, 56, 56, 57, 58, 58, 59 and 59 Winch, 578 Pipelayer, 924G Wheel Loader, D10, D10N, D10R, D11N, D4H, D4L, D5, D5B, D5H, D5M, D5R, D6C, D6D, D6H, D6M, D7F, D7G, D7H, D7R, D8H, D8K, D8L, D8N, D8R, D9, D9G, D9H, D9L, D9N, and D9R Track Type Tractor.

• Inner Diameter (in): 0.93

• Inner Diameter (mm): 23.57

• Length (in): 4.18

• Length (mm): 106.17

• Outer Diameter (mm): 26.97

• Outside Diameter (in): 1.06

• Spring Type: Compression

• Wire Size (in): 0.07

• Wire Size (mm): 1.7

• Material: Alloy Steel,Corrosion Preventative Fluid
