ПРУЖИНА

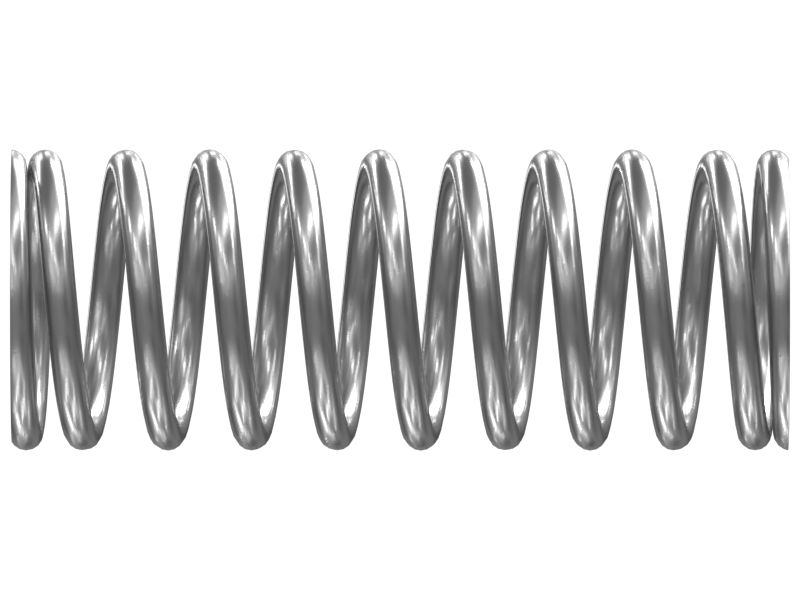

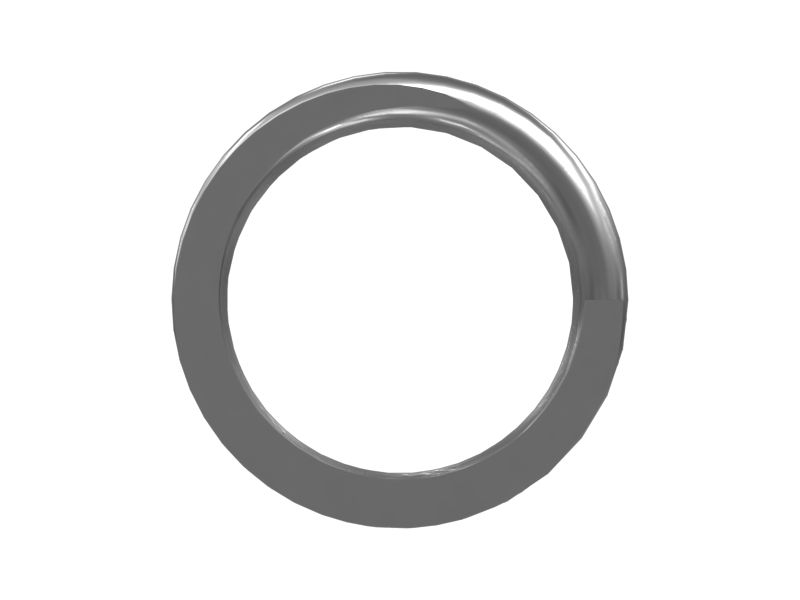

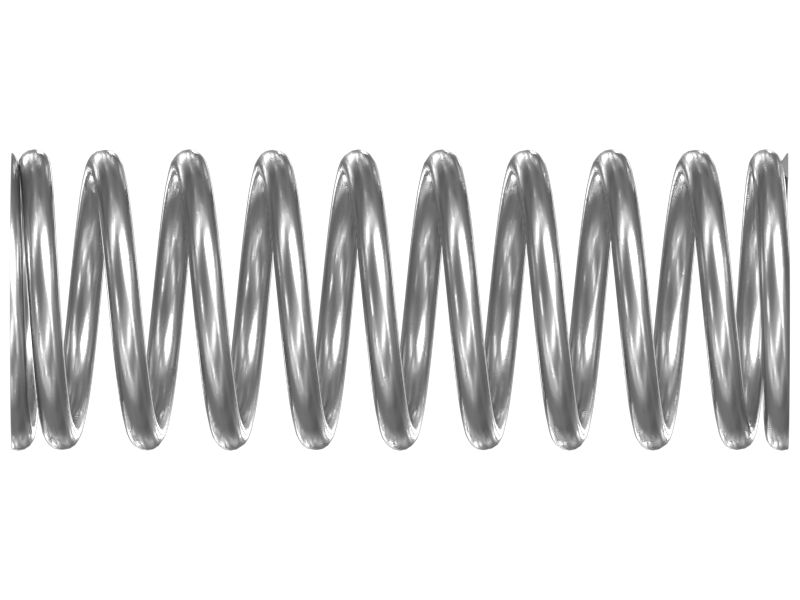

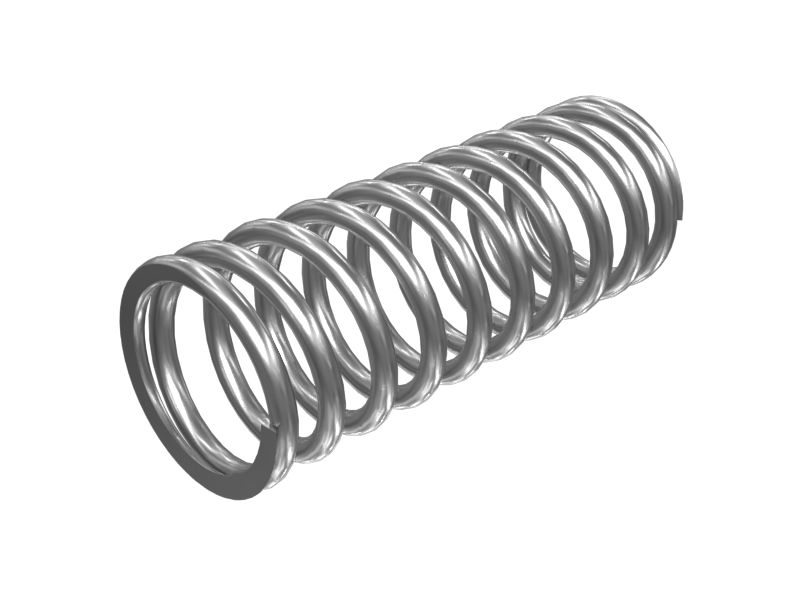

3J-9745: ПРУЖИНА

Cat® 22.48mm Inner Diameter Compression Spring Used in Control Valve


Заинтересовал товар?

Имя

Почта

Комментарий

Схема

Не найдено

Описание для номера по каталогу 3J-9745

Description:
A Compression Spring is positioned between the relief valve and the retainer to hold it with the required pressure. The spring compresses, exerting a force that helps to regulate the flow of fluids through the valve. Compression Springs are used as they allow for more efficient energy storage methods and provide a smooth change in resistance over time.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Active coils of spring are 9
• Provided With Right-hand wound helical coil helps to maintain their shape and stability

Applications:
A Compression Spring is used in Control Valves to withstand high working stress and very high fluctuating loads. this is widely used in Cat 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, 229D, 231D, 235, 235B, 235C, 235D, 245, 245B and 245D Excavators, 227 Tree Harvester, 611G, 615G, 619C, 621, 627, 630B, 632, 631B, 631C, 631E, 631G, 637, 637E, 637G, 641, 641B, 650, 650, 660, 666, 650B, 660B, 651, 651B, 651E, 657, 657B, 657E, 657G, 660, 666 and 666B Wheel Tractor Scrapers.

WarningOutline Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 3J-9745

  • Inner Diameter (in): 0.89

  • Inner Diameter (mm): 22.48

  • Length (in): 2.9

  • Length (mm): 73.66

  • Outer Diameter (mm): 28.57

  • Outside Diameter (in): 1.13

  • Spring Type: Compression

  • Wire Size (in): 0.12

  • Wire Size (mm): 3.04

  • Material: Alloy Steel

Совместимые модели для номера по каталогу 3J-9745

WHEEL SCRAPER

631E 637E 627 666B 657B 637D 666 657 637 630B 651E 651B 641B 641 631C 631B

EXCAVATOR

225 245 215 235 245B
