3H-5243: ГАЙКА

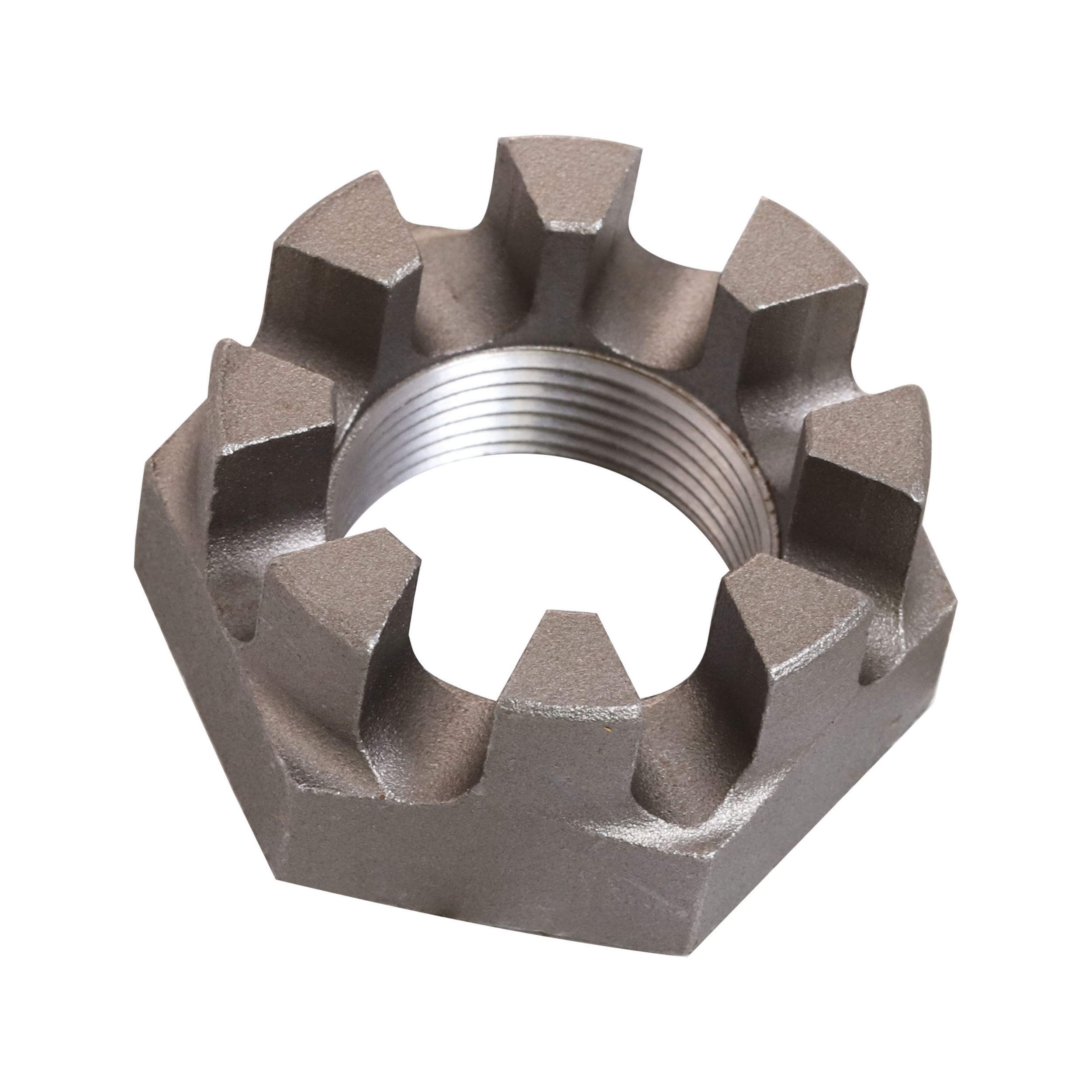

A castle nut is a type of fastener designed with slot cuts on the end of the nut, which allow for the use of a cotter pin or safety wire to prevent the nut from loosening due to vibration or other stresses during operation. It is typically made of a durable material such as steel and is designed to fit over a bolt or threaded rod.

Attributes:
Offers high strength and ductility
Provided with a slot width of 0.25mm to accommodate a cotter pin

Applications:
A castle nut is used to provide a secure and reliable connection between two parts, widely used in Cat® Terracer, Auto Patrol - Direct Drive, Diesel, Auto Patrol - Direct Drive, Gas, Scraper, Motor Grader, Trailer Patrol, Planer - Road, Grader - Hand Controlled, Grader - Power Controlled, Lift Truck, Wheel Tractor Scrapers, Grader - Power Controlled, Track Type Tractor, Wheel Tractor - Direct Drive, Mobile Trac System machine families.

• Hex Size (in): 2.38

• Hex Size (mm): 60.32

• Nut Type: Hex

• Material: Steel,Alloy Mixed

• Thread Size (in - TPI) (in): 3/2-12

• Thread: 1 1/2-12

• Weight (kg): 0.34

• Weight (lb): 0.75

• Thread Size (dia x pitch) (mm): 1.500x12

• Class or Grade: SAE J995 Grade 5 (120 ksi)

• Hand of Thread: RH
