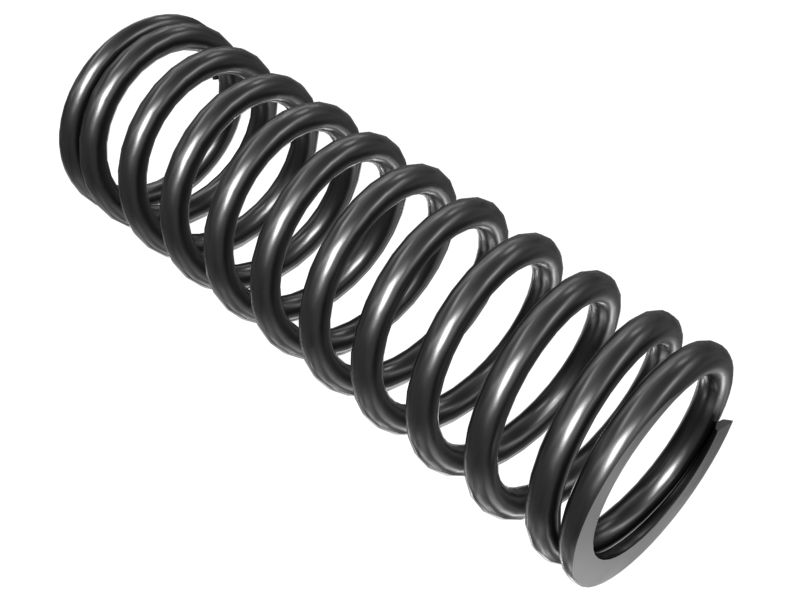

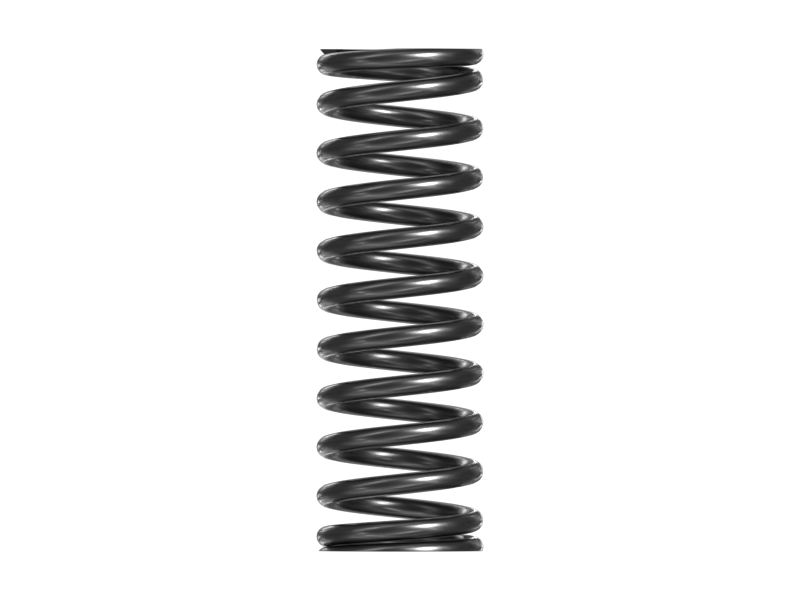

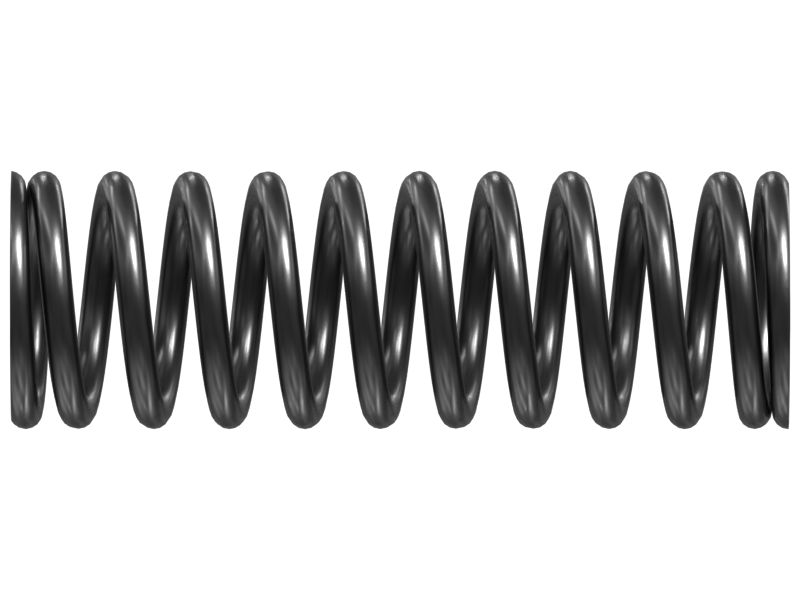

3G-9003: ПРУЖИНА

The Hydraulic Pilot Control Valve Compression Spring is a mechanical spring that is used to resist compression when a force is applied axially along its length. It provides a reliable and consistent force between the Pilot valve and the valve seat. It serves the purpose of providing the necessary force to control the opening and closing of the valve in response to pressure changes. When a compressive force is applied, the coils are compressed and the spring stores the energy. The shape of the compression spring is cylindrical, with a helical coil that is tightly wound to resist compression.

Attributes:
• Provided with total coils of 12 and active coils of 10 as right-hand wound helical coils that help to maintain their shape and stability

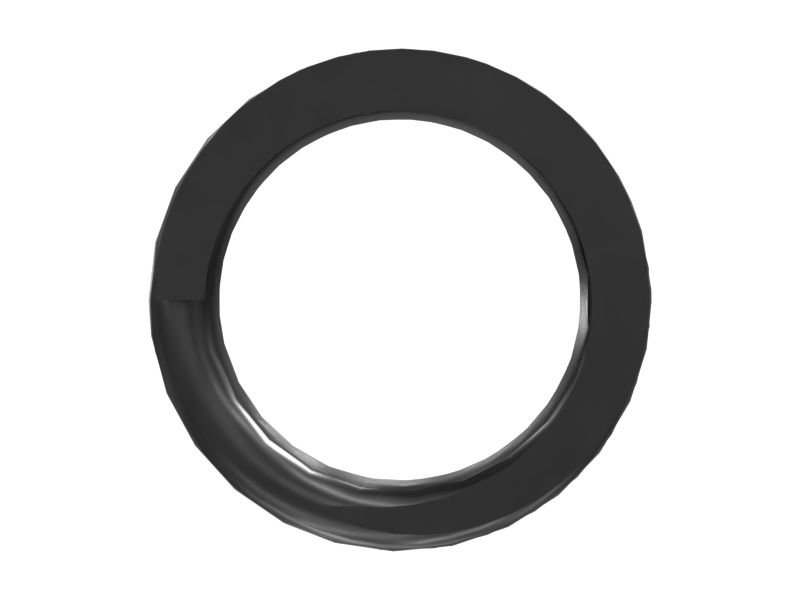

• Provided with Square Ends because they provide a secure and stable for the spring to sit on a device or an assembly and Ground with 290 Degrees
• Provided a spring rate of 6.35 N/mm to store and release mechanical energy

Applications:
The Hydraulic Pilot Control Valve Compression Spring is used in the hydraulic pressure check valve to maintain the desired pressure levels and prevent the valve from overpressure by opening and relieving excess pressure. It provides a secure connection between the valve seat and the pilot valve.

• Material: Alloy Steel
