3G-8591: ПРУЖИНА

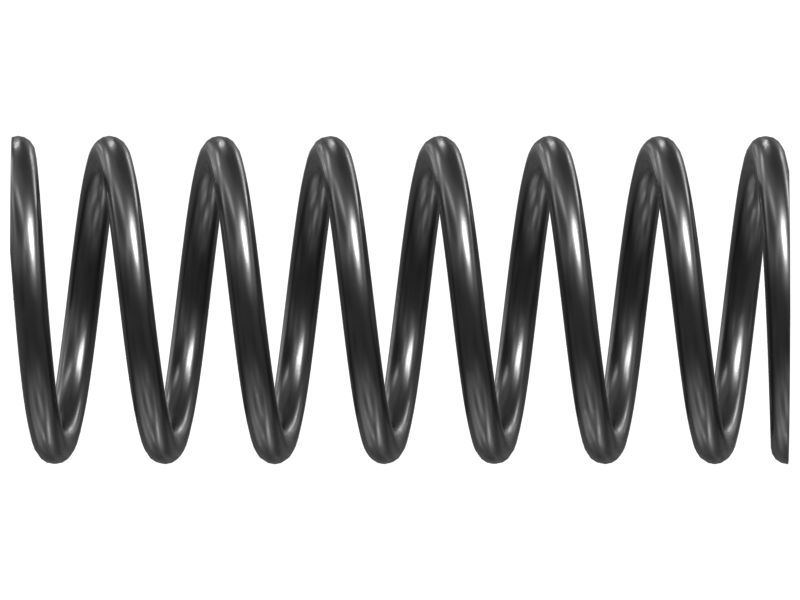

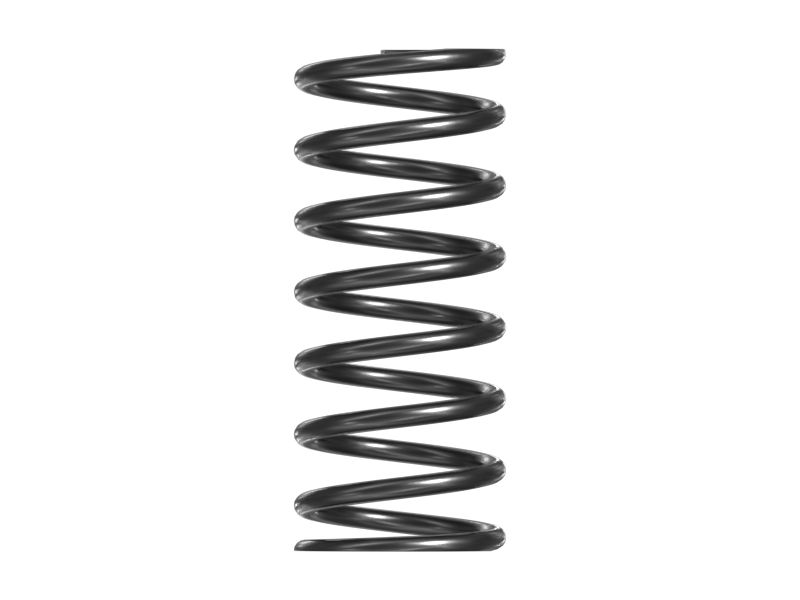

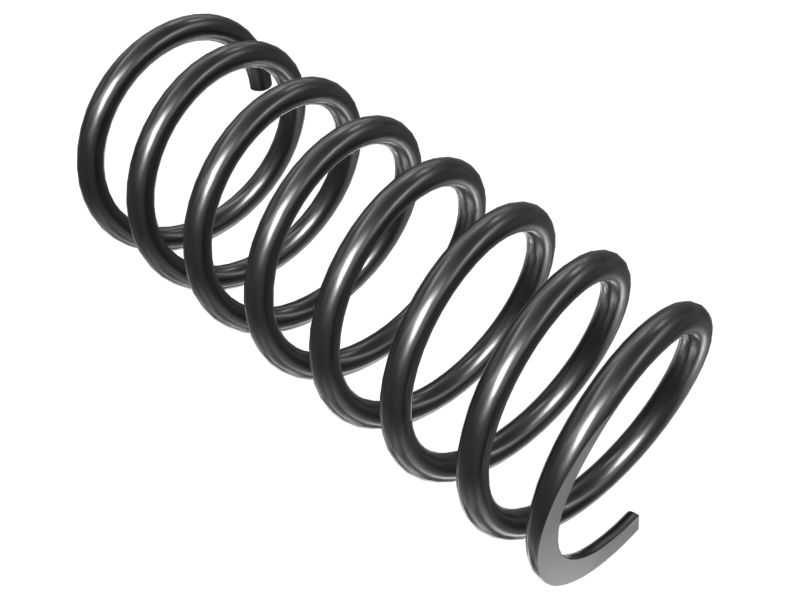

The Hitch Control Selector Valve Compression Spring is a mechanical spring that is used to resist compression when a force is applied axially along its length. It provides a reliable and consistent force between the valve and the valve seat. The shape of the compression spring is cylindrical, with a helical coil that is tightly wound to resist compression. It serves the purpose of providing the necessary force to control the opening and closing of the valve in response to pressure changes. When a compressive force is applied, the coils are compressed and the spring stores the energy.

Attributes:
• Provided with total coils of 7.7 and active coils of 5.7 as right-hand wound helical coils that help to maintain their shape and stability
• Provides 378 N load at an assembled length of 52.87mm for even distribution of forces across the secured parts, minimizing stress concentration
• Provided a spring rate of 9.73 N/mm to store and release mechanical energy

Applications:
The Hitch Control Selector Valve Compression Spring exerts controlled force to ensure the proper positioning and functionality of the selector valve and to provide the required pressure to maintain the effective operation of the hitch, allowing for the regulation of hydraulic fluid flow and pressure.

• Material: Alloy Steel
