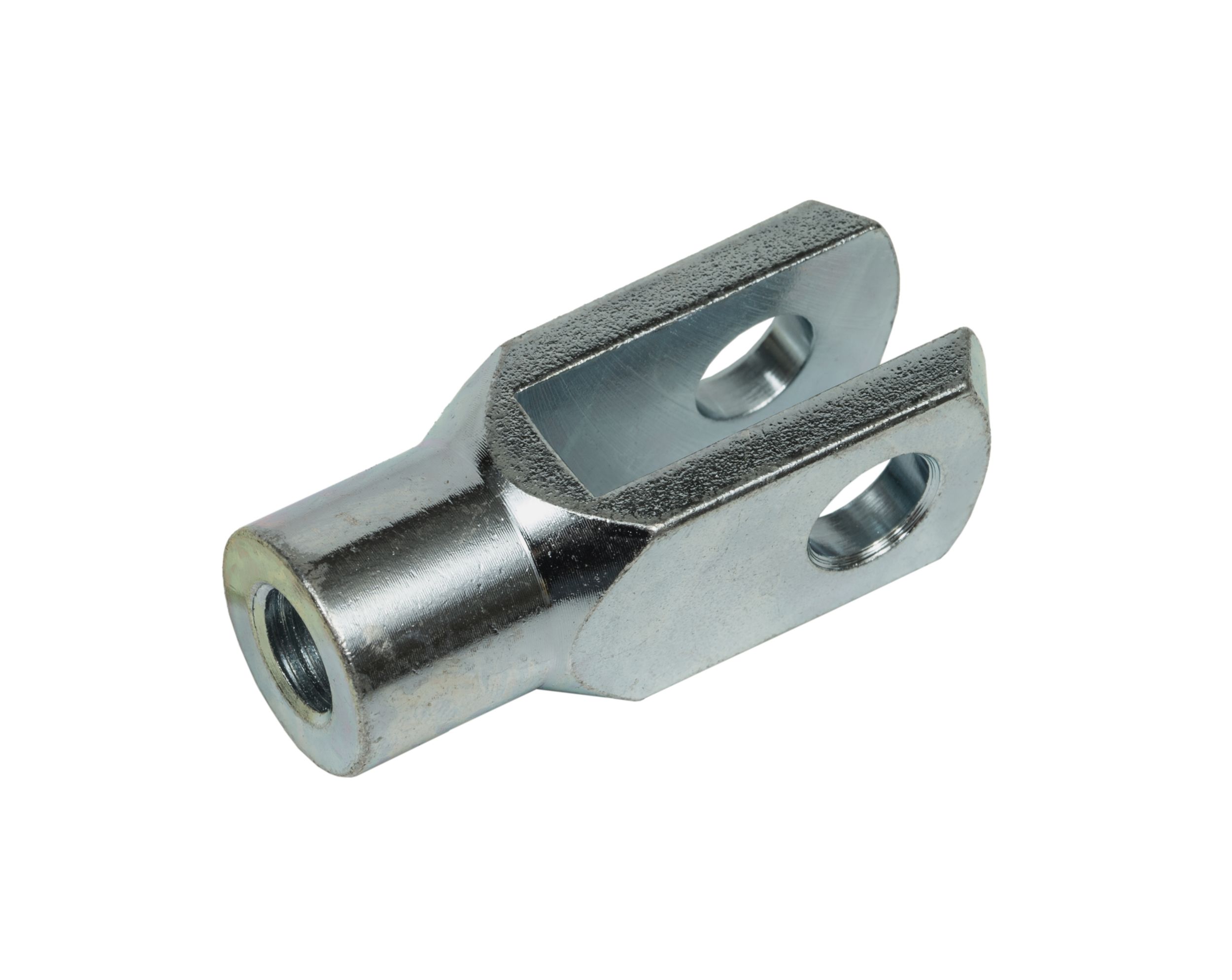

3E-3826: Вильчатая головка шатуна / дополнительные размеры

A Yoke End Rod facilitates the connection between the fender and the right-hand walkway. It is designed to withstand mechanical stress, providing stability and support to the fender while allowing for smooth movement of the walkway. It features a threaded shaft on one end and a yoke on the other, allowing for secure attachment and efficient transmission of forces. As the equipment operates, the yoke end rod facilitates the transfer of motion and force, contributing to the overall performance and functionality of the equipment. Its accurate engineering ensures optimal alignment and functionality, contributing to the overall efficiency and performance of the equipment.

Attributes:
• Corrosion resistant.
• Designed to withstand high loads.
• High-strength build for durability.
• Resistant to environmental factors.

Applications:
A Yoke End Rod is used to connect the fender to the right-hand walkway in the equipment, ensuring stable movement and operational efficiency.

• Высота — C (мм): 20,0

• Стопорный палец: 6S-6646

• Размер зазора — В (мм): 10,0

• Тип головки шатуна: Вильчатые/дополнительные размеры

• Диаметр штока, примечание (мм): Диаметр цилиндра 9,5

• Ширина — D (мм): 20,0

• Расстояние до отверстия под палец — A (мм): 40,0

• Диаметр штока (мм): M10

• Material: Alloy Zinc,Carbon Steel
