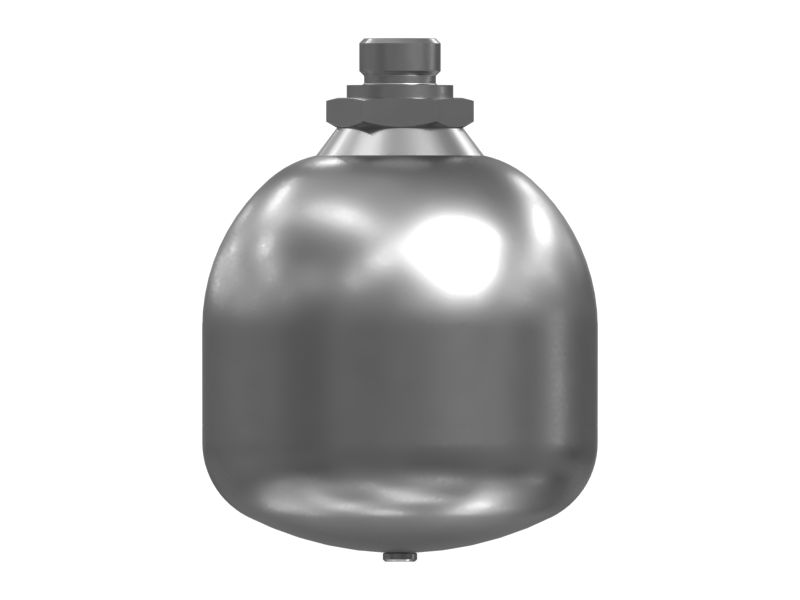

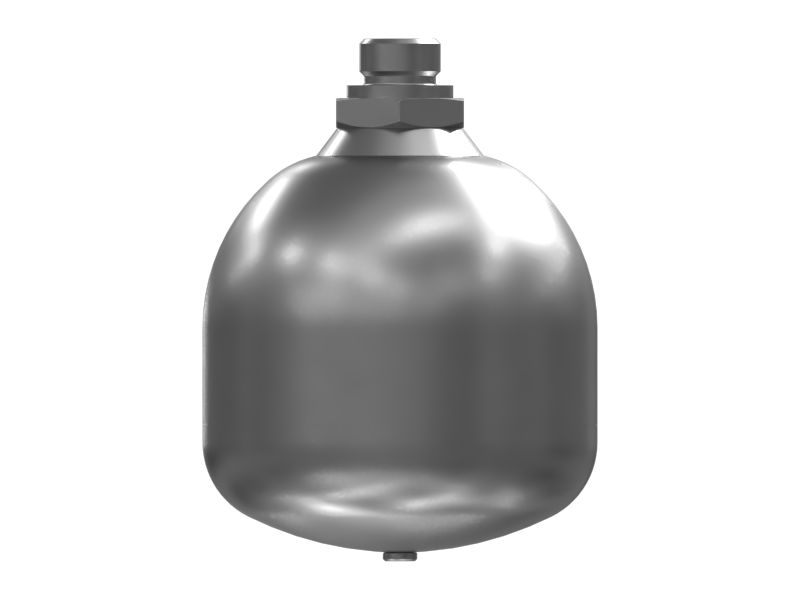

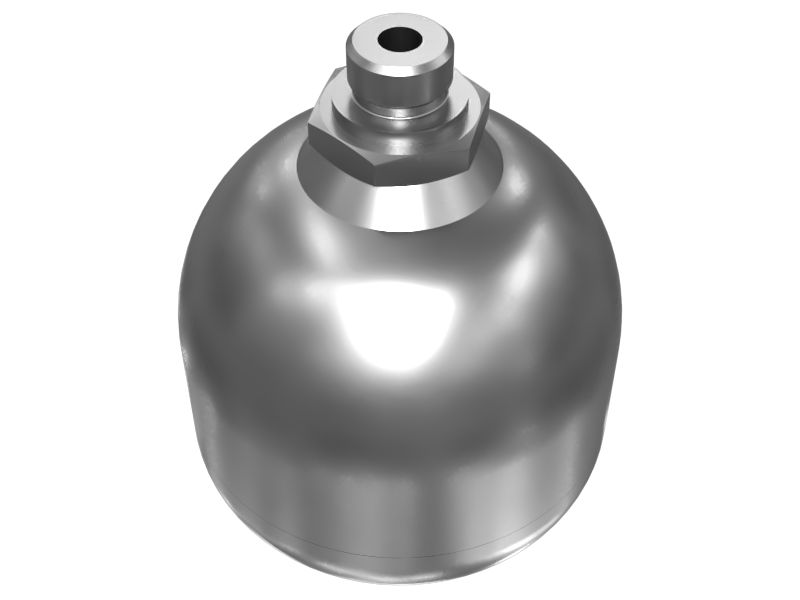

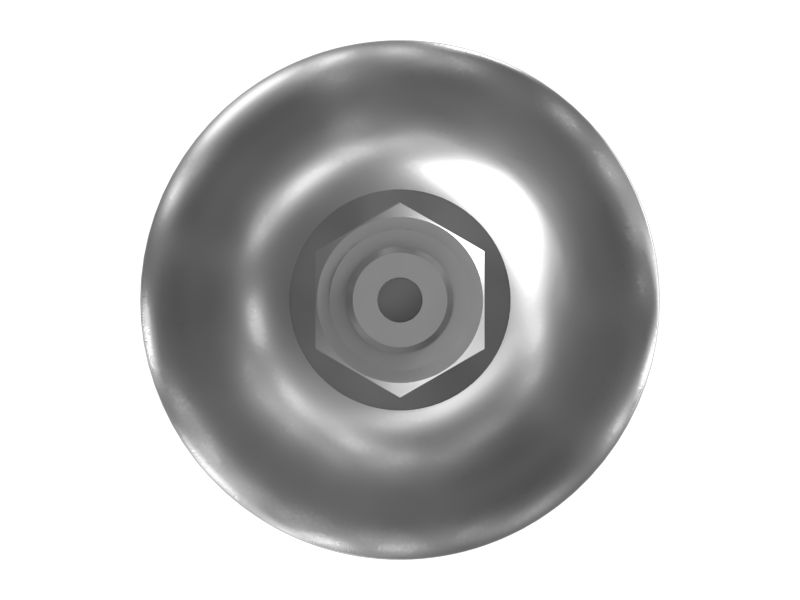

397-6929: Hydraulic Accumulator

A Hydraulic Accumulator stores hydraulic energy by compressing gas, which is released to supplement hydraulic pump flow when needed. It acts as a buffer, absorbing pressure fluctuations and preventing system shock. This device enhances hydraulic system performance by maintaining consistent pressure levels and providing emergency backup power. The hydraulic accumulator ensures smoother operation and increased system reliability.

Attributes:
• Charging medium gas end is dry nitrogen.
• Rapid response to sudden fluid demands.
• Bursting pressure and safety factor ratio are 82740 kilopascal.
• Resistance to corrosion from hydraulic fluids.
• Withstands to fluctuating pressure conditions.
• Resistance to temperature variations in hydraulic systems.

Applications:
A Hydraulic Accumulator stores the pressurized fluid as potential energy, acting like a temporary energy reservoir, and provides an emergency backup power source, enhancing the overall efficiency and safety of the hydraulic system.

• Overall Length (mm): 123

• Overall Length (in): 4.84

• Overall Width (mm): 93

• Overall Width (in): 3.66

• Overall Height (mm): 93

• Overall Height (in): 3.66

• Operating Temperature: -30°C to 121°C

• Capacity (L): 0.32

• Weight (kg): 1.3

• Weight (lb): 2.87

• Material: Carbon Steel
