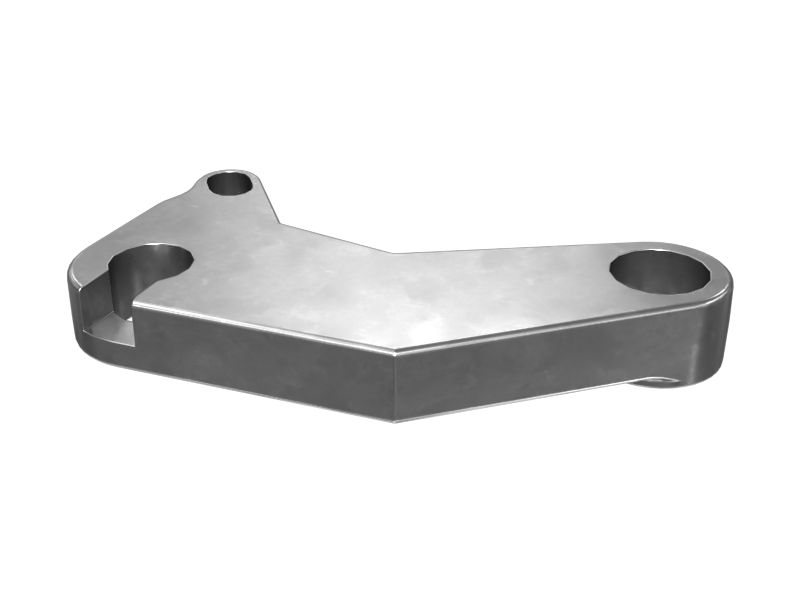

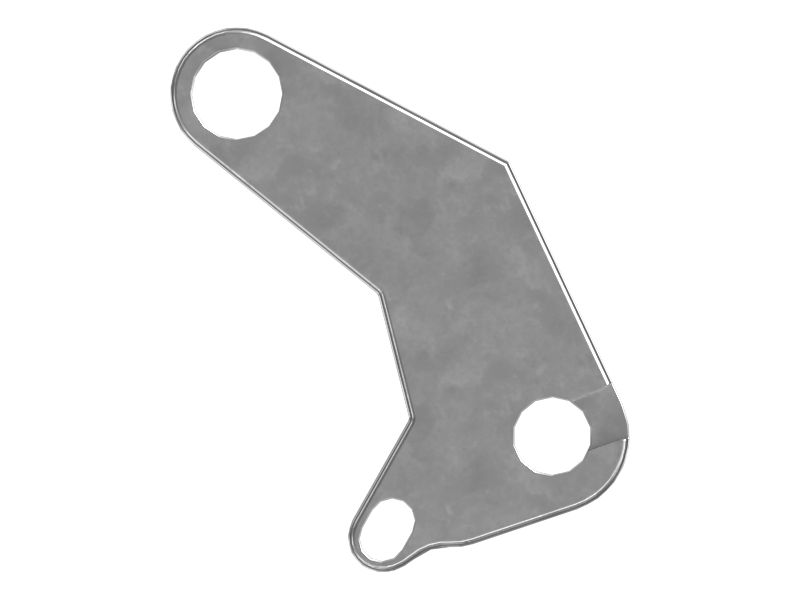

396-7845: КОРОМЫСЛО

The Cylinder Coupler Rocker Arm is used in the Quick Coupler Linkage and serves as a critical link between the hydraulic cylinder and the coupler mechanism, enabling the rapid and efficient attachment and detachment of various work tools and attachments. When the hydraulic cylinder is actuated, the Cylinder Coupler Rocker Arm translates the linear motion of the cylinder into rotational movement, allowing the coupler mechanism to engage or disengage the attachment efficiently.

Attributes:
• Precise positioning of the pivot point, along with suitable link lengths and angles, ensures optimal motion transmission
• Withstands the maximum loads and forces encountered during equipment operation

Applications:
The Cylinder Coupler Rocker Arm acts as an intermediary between the hydraulic cylinder and the coupler mechanism, providing the necessary mechanical advantage and motion transfer to facilitate the quick coupling and uncoupling of attachments to ensure reliable and safe operation of equipment.
