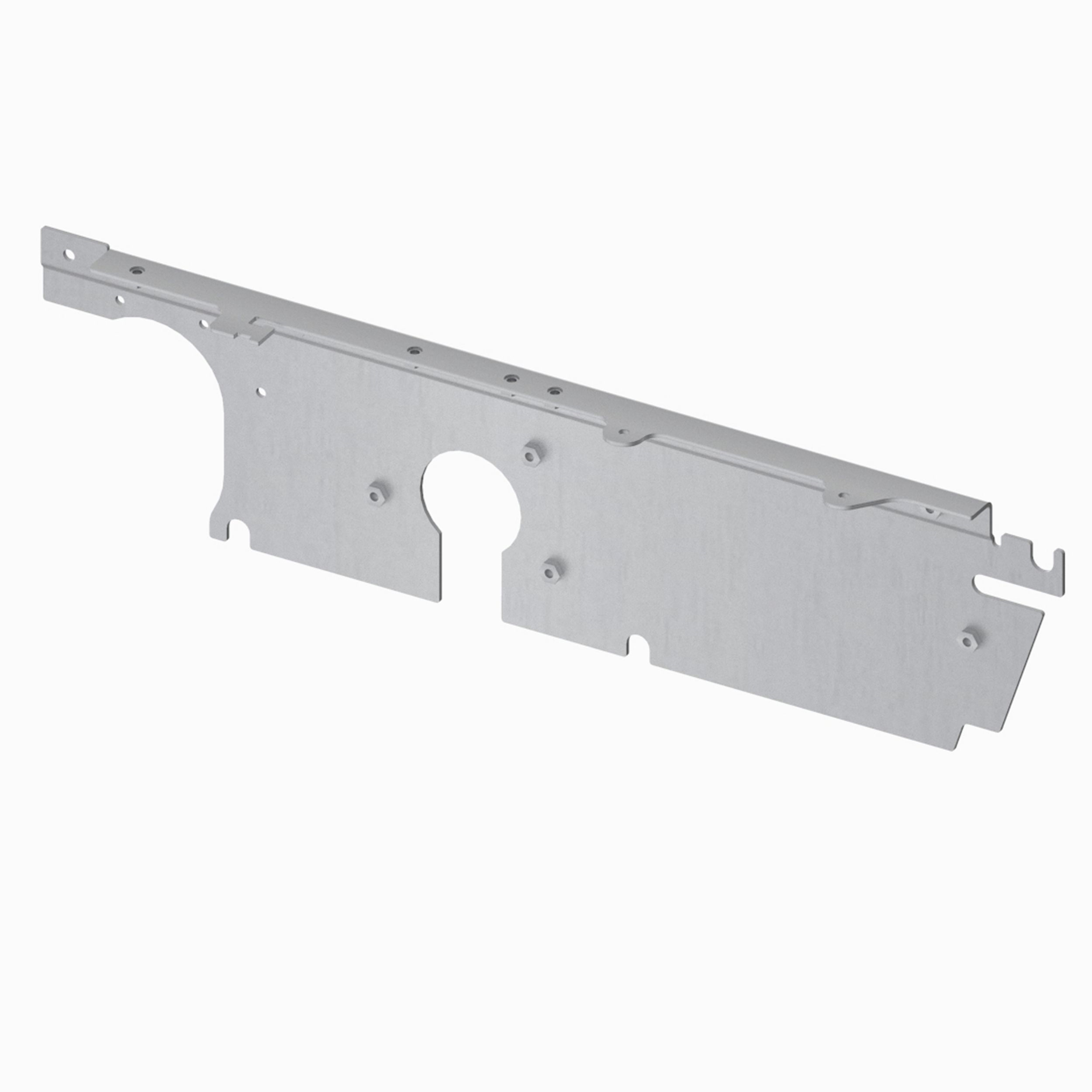

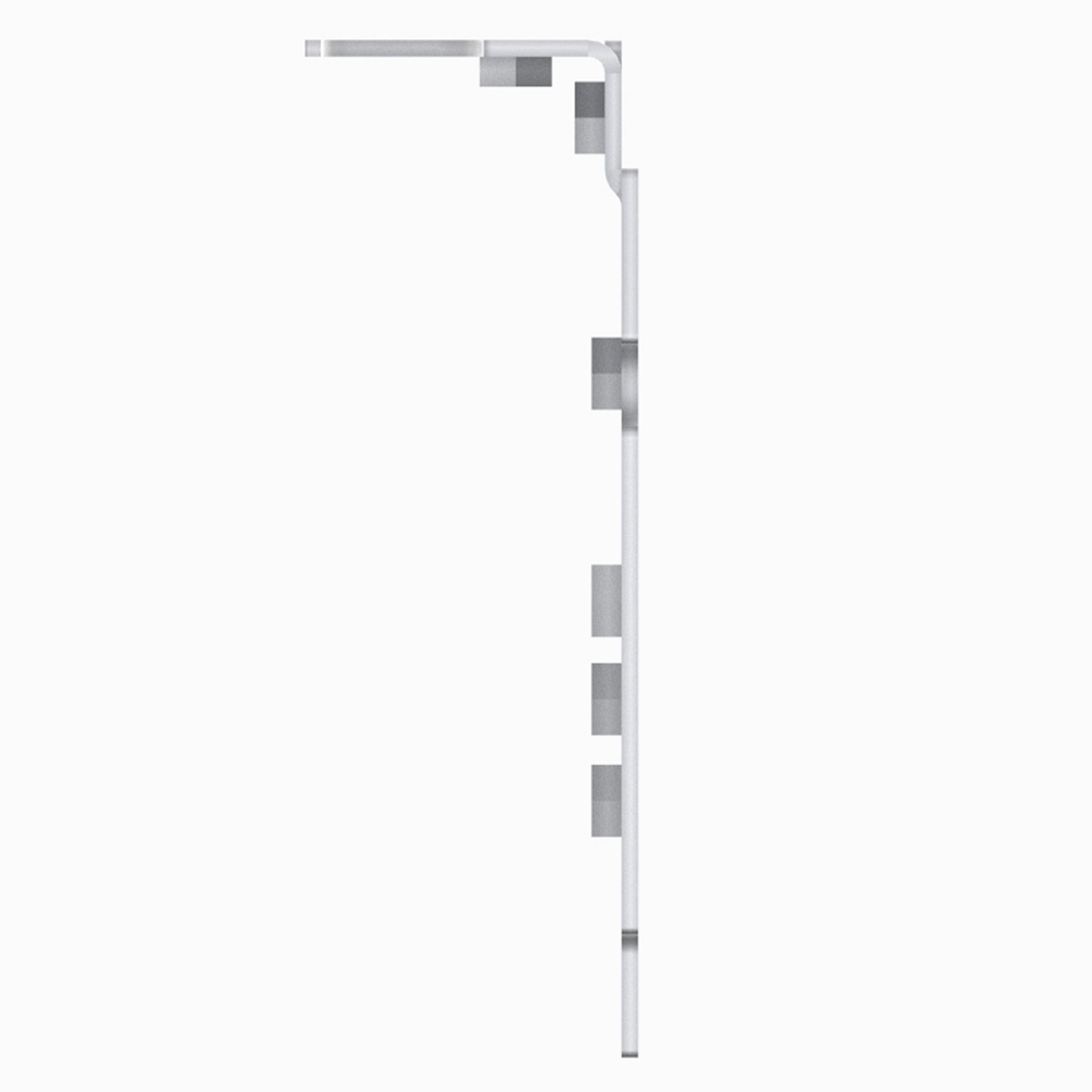

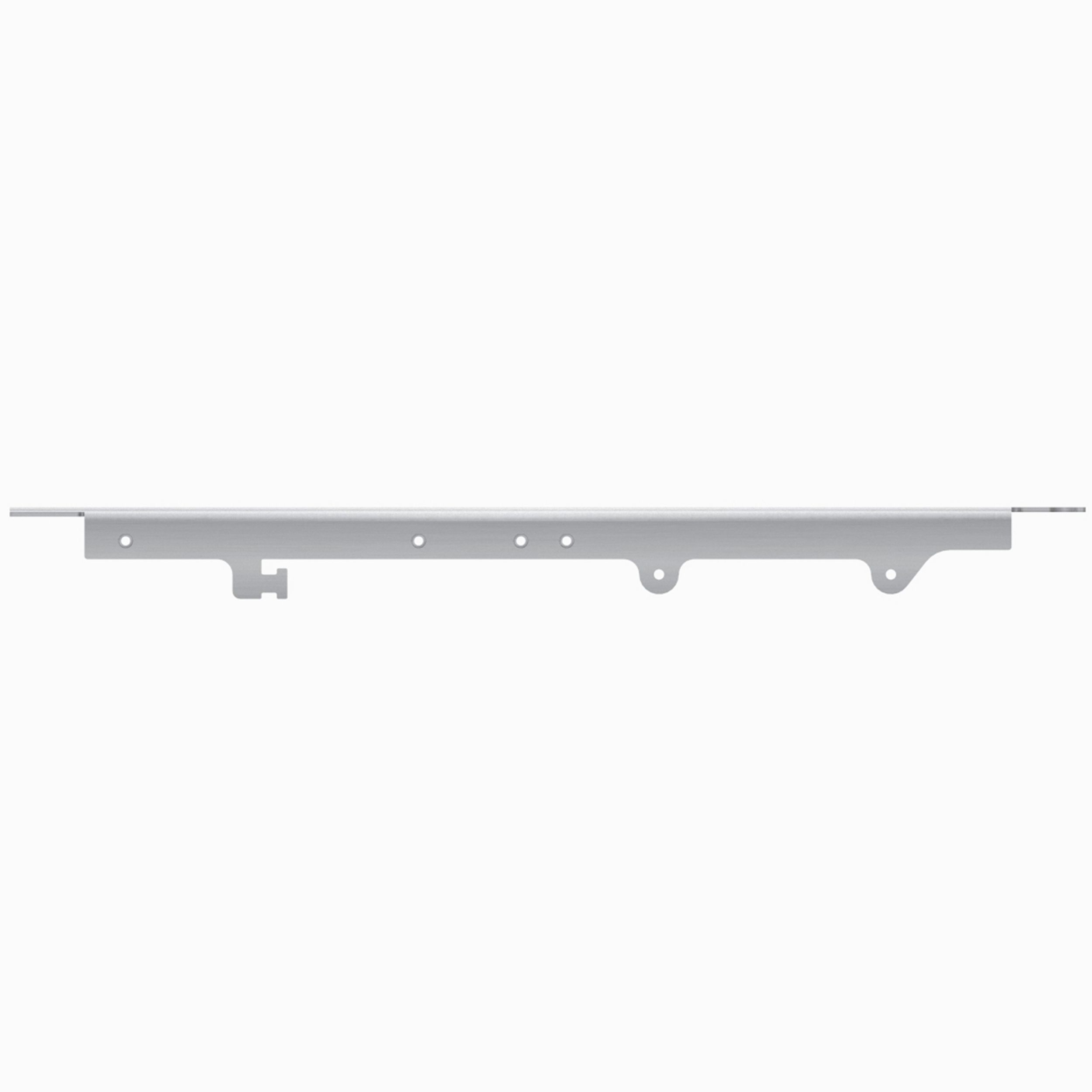

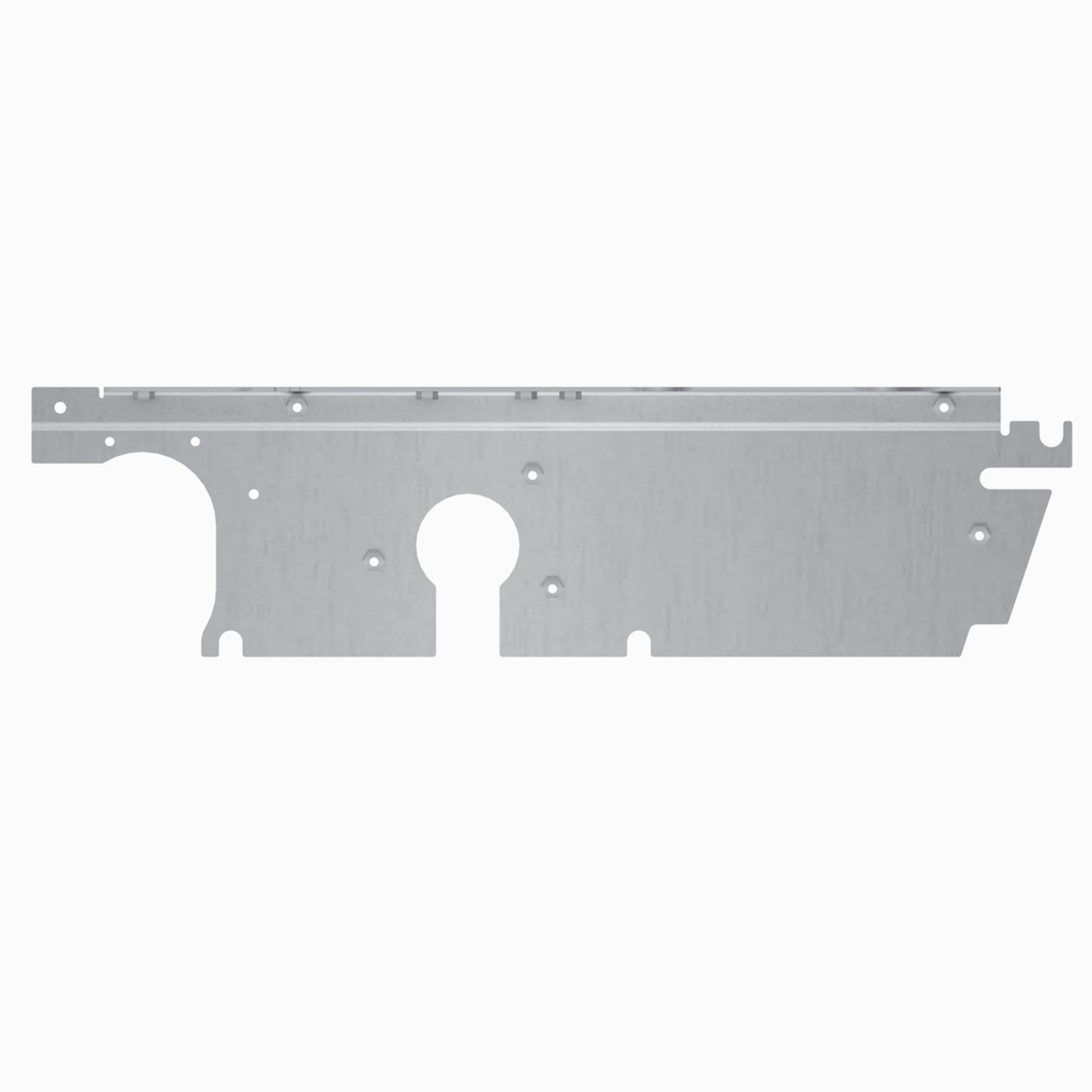

396-3135: ПЛАСТИНА В СБОРЕ

Description:
A Governor Control Support Plate provides a secure mounting platform for the governor control mechanism, allowing the operator to adjust the engine speed from inside the Backhoe Loaders cabin. The support plate is often composed of strong and durable material, such as steel, and is attached to the Backhoe Loader's frame.

Attributes:
• Offers good resistance to impact and shock.
• Provided with 10 welded nuts of size M6 to provide a strong connection to the plates.

Applications:
A Governor Control Support Plate act as a base to hold the foot pedal, widely used in the CAT 416, 416F, 420, 420F, 422F, 424, 426, 426F, 428, 428F, 430, 430F, 432, 432F, 434, 434F, 444 and 444F Backhoes.

• Material: Steel,Alloy Mixed

• Overall Height (in): 2.36

• Overall Height (mm): 60

• Overall Length (in): 27.75

• Overall Length (mm): 705

• Overall Width (in): 7.2

• Overall Width (mm): 183

• Thickness (in): 0.11

• Thickness (mm): 3

• Weight (kg): 2.82

• Weight (lb): 6.22
