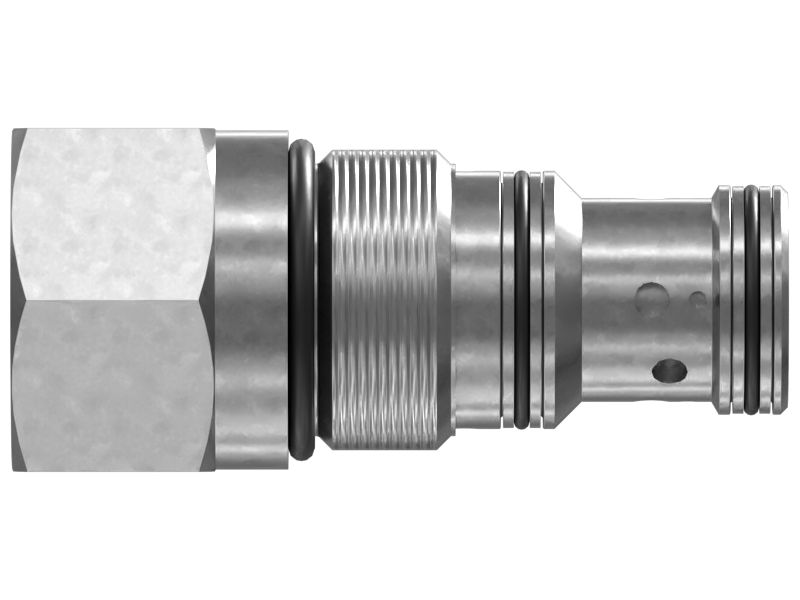

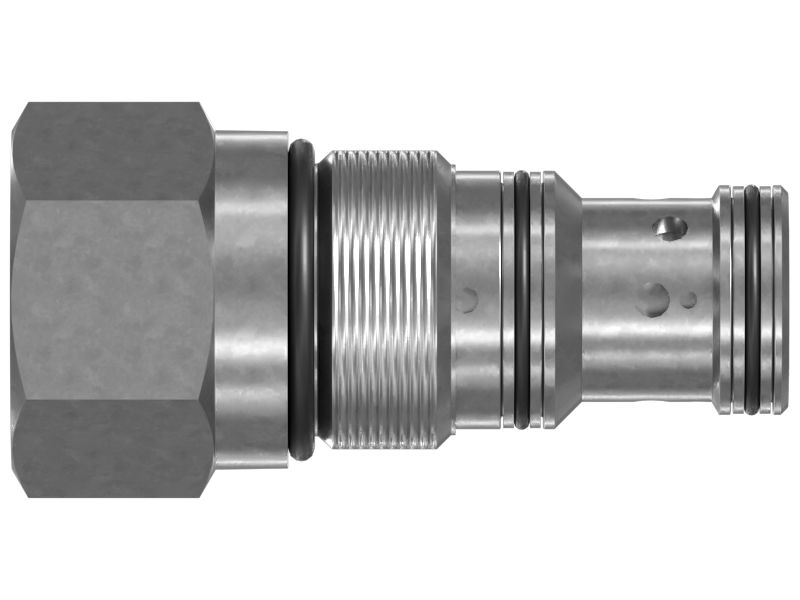

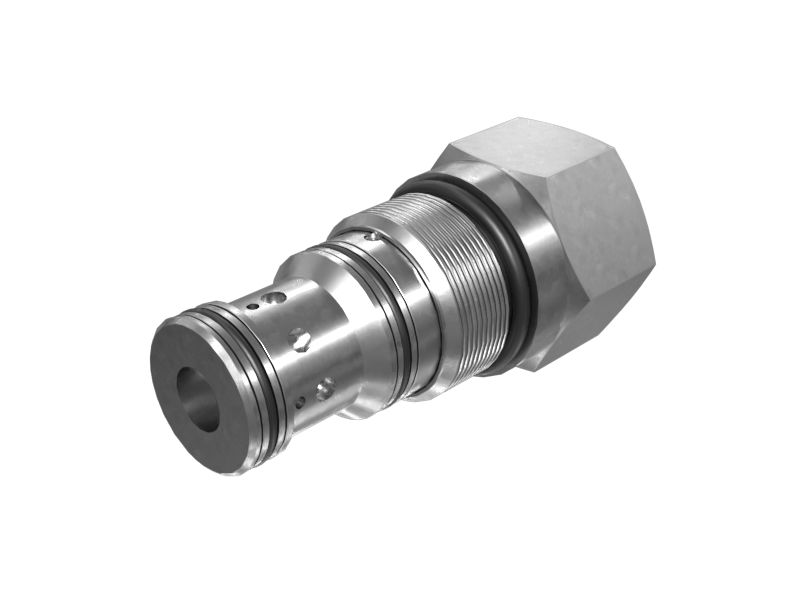

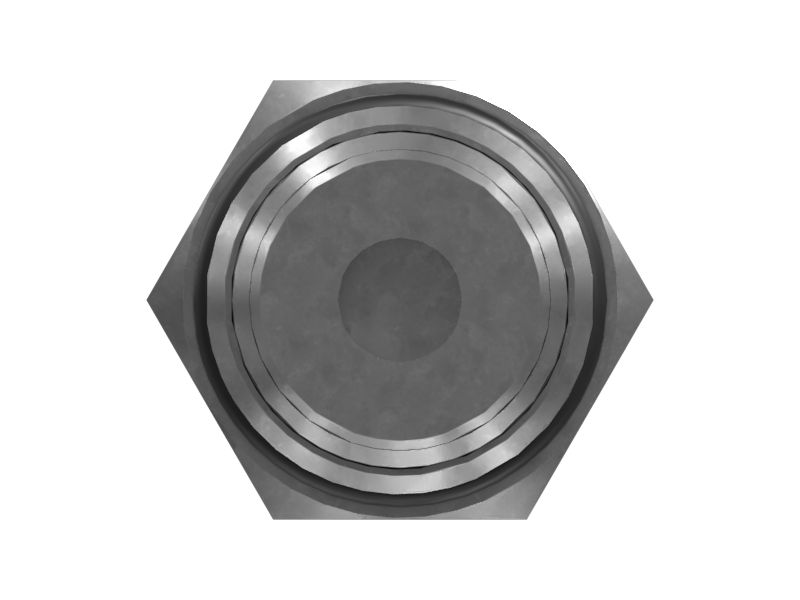

393-0084: БЛОК КЛАПАНА D R

The Direct Operated Relief Valve maintains the hydraulic unit pressure within safe limits. When the pressure surpasses the preset threshold, the valve opens, allowing fluid to bypass and return to the reservoir, thereby safeguarding the hydraulic unit from excessive pressure buildup and potential damage.

Attributes:
• Adjustable pressure setting of 5520±150 kPa (3 to 1) at a flow rate of 2±1 L/min.
• Able to withstand a maximum pressure of 35000 kPa.
• Provides a flow rating of 180 L/min at a 7 bar pressure drop.
• Operates with a 1 to 1-pilot ratio.
• Maximum leakage of 90 mL/min at 100 bar pressure with 46 CSt oil.
• Designed to fit cavity CAV06-S3.

Applications:
The Direct Operated Relief Valve is employed as a safety measure to ensure the integrity and longevity of the hydraulic unit in the equipment. Particularly in high-pressure hydraulic applications where accurate pressure control is necessary for optimal performance and safety.

• Material: Carbon Steel
