392-9315: ПРОКЛАДКА

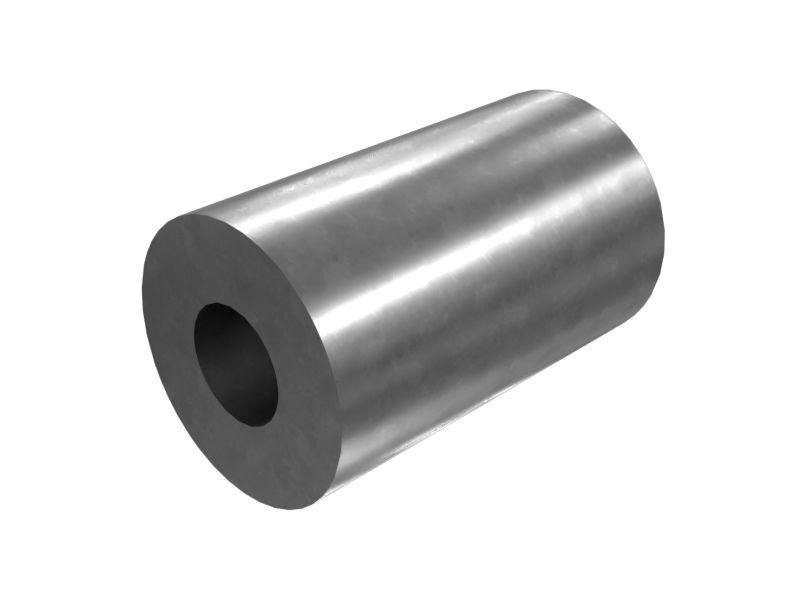

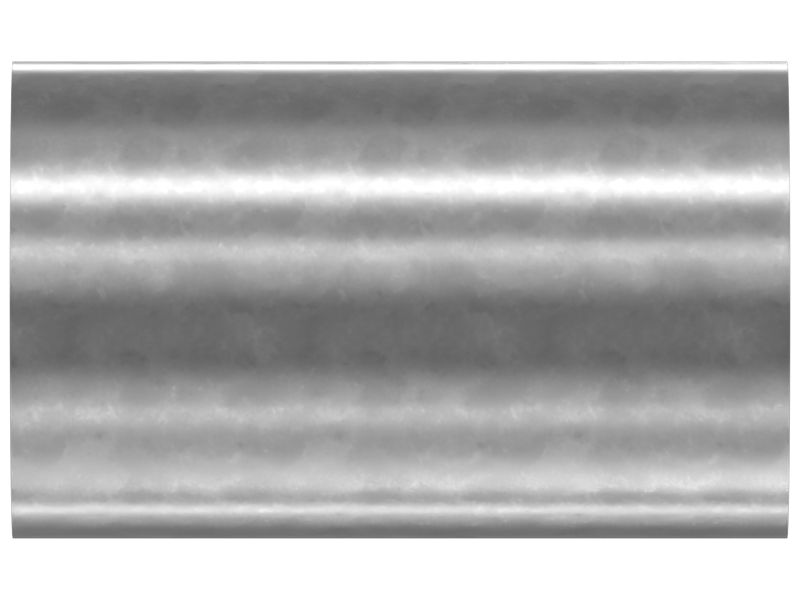

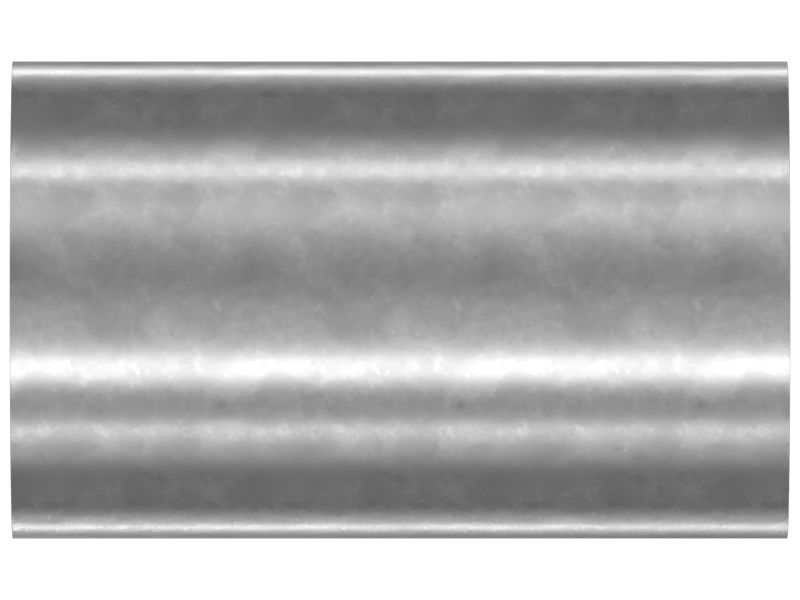

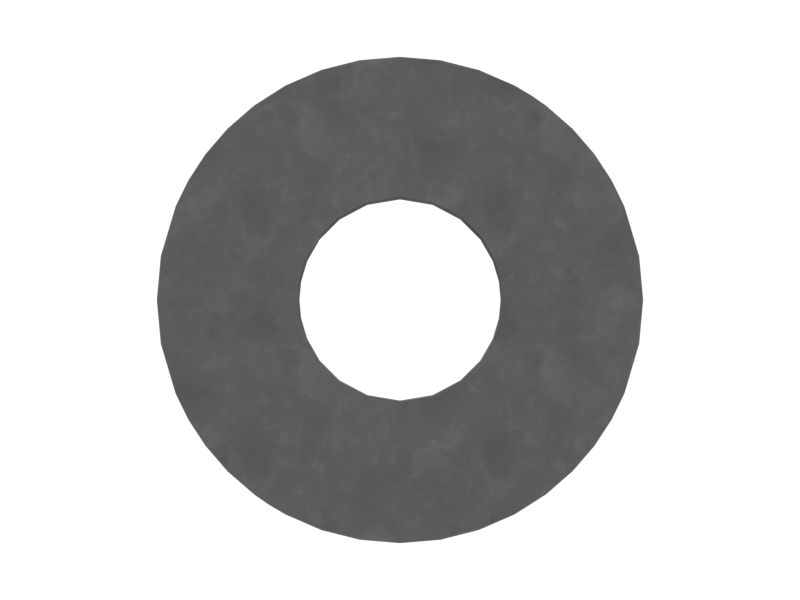

A Spacer creates a precise distance or gap between two objects. The spacer is designed to fit over fasteners. The size and shape of a steel spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components. Spacers can be coated or heat treated to enhance their properties.

Attributes:
Ensure precise positioning of components.
Withstand high temperatures without losing their strength or integrity.
Case Hardened to provide durability and resistance to wear and tear.

Applications:
A Spacer is used to increase the distance between the parts being fastened, mostly used in Cat® 308, 308.5, 308E, 309, and 310 Excavators, 950, 950L, 950M, 962, 962L, 962M, and 980L Wheel Loader, D9R Track Type Tractor.

• Washer Type: Flat

• Inner Diameter (in): 0.33

• Inner Diameter (mm): 8.5

• Length (in): 1.28

• Length (mm): 32.5

• Material: Steel,Carbon Steel,Alloy Zinc

• Coating: Zinc

• Outer Diameter (in): 0.79

• Outer Diameter (mm): 20

• Weight (kg): 0.07

• Weight (lb): 0.15
