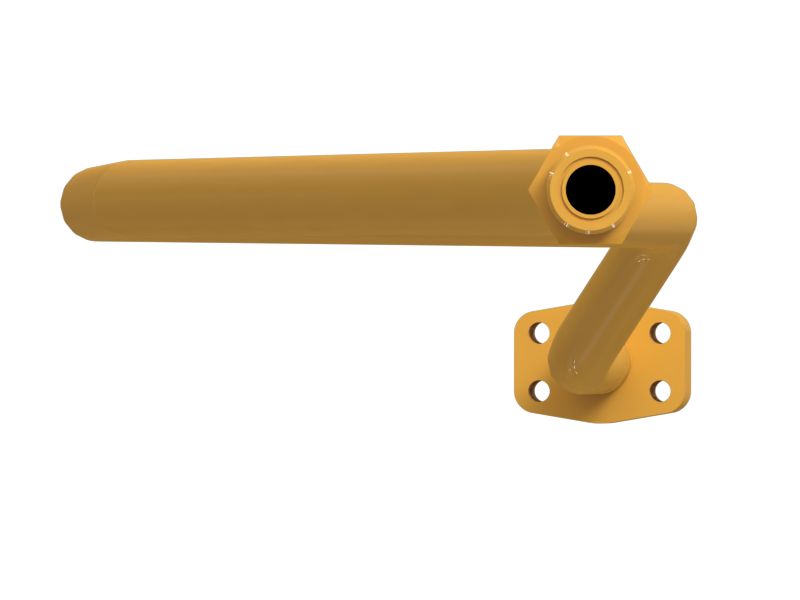

392-0575: ТРУБКА В СБОРЕ

An Auxiliary Hydraulic Lines Tube Assembly facilitates the channeling of hydraulic fluid to power the hydraulic cylinder and attachments located on the boom of the machine. The tube is routed along the boom structure to minimize interference with other components and moving parts located on the boom. The tube ensures smooth hydraulic fluid flow and pressure drops. The assembly includes an O Ring Face Seal Adapter, and Flange on both ends to ensure a secure and leak-free connection.

Attributes:
• Allows for accurate positioning and operation of the equipment
• Withstands 42000 kPa relief valve pressure, enabling efficient fluid flow

Applications:
An Auxiliary Hydraulic Lines Tube Assembly is used to serve as a conduit for the flow of fluid to actuate the cylinders thereby controlling the extension and retraction of the cylinder.

• Outer Diameter (mm): 35

• Outer Diameter (in): 1.38

• Approximate Overall Length (mm): 4382

• Material: Carbon Steel,Alloy Zinc
