391-2140: КРОНШТЕЙН ВСТАВКИ

Description:

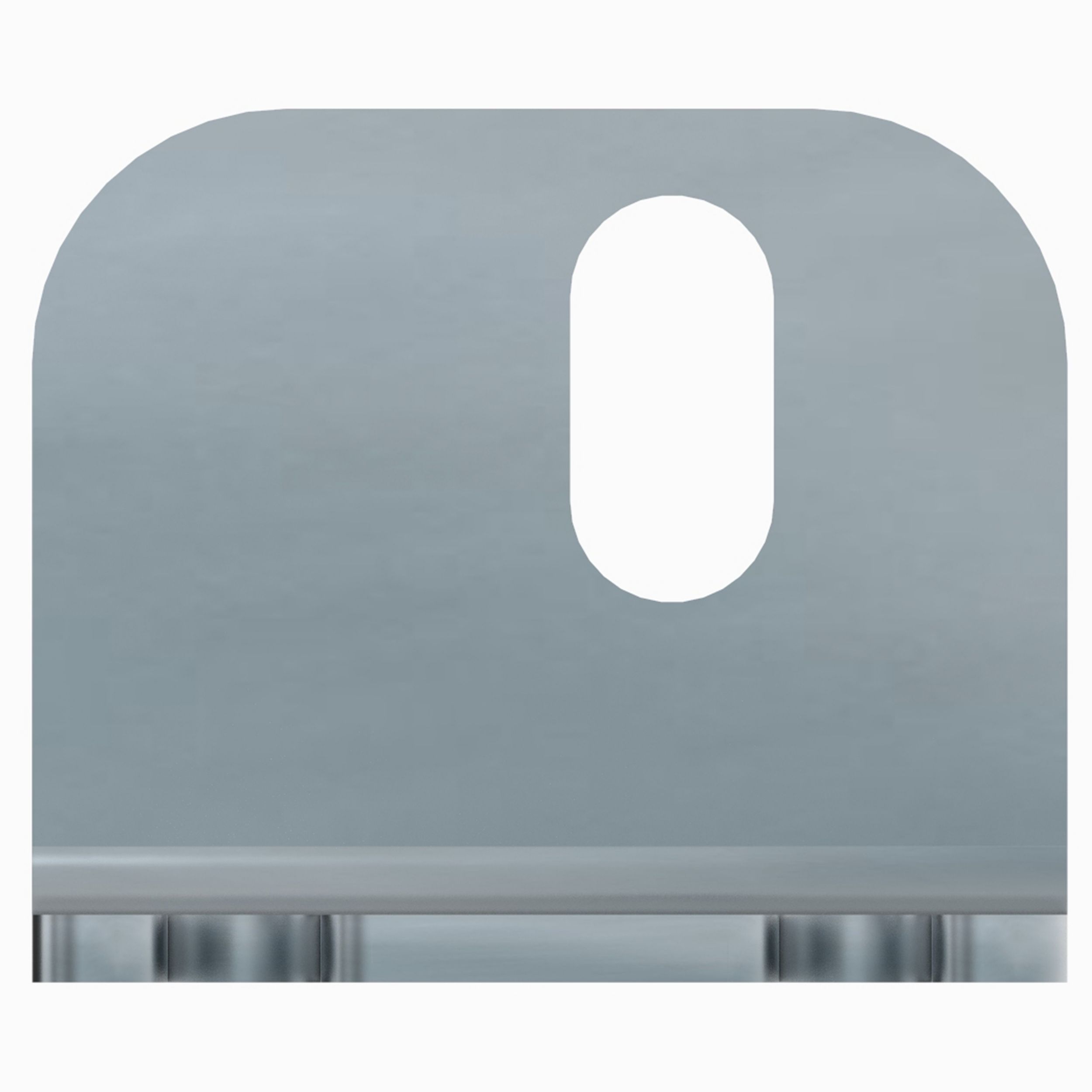

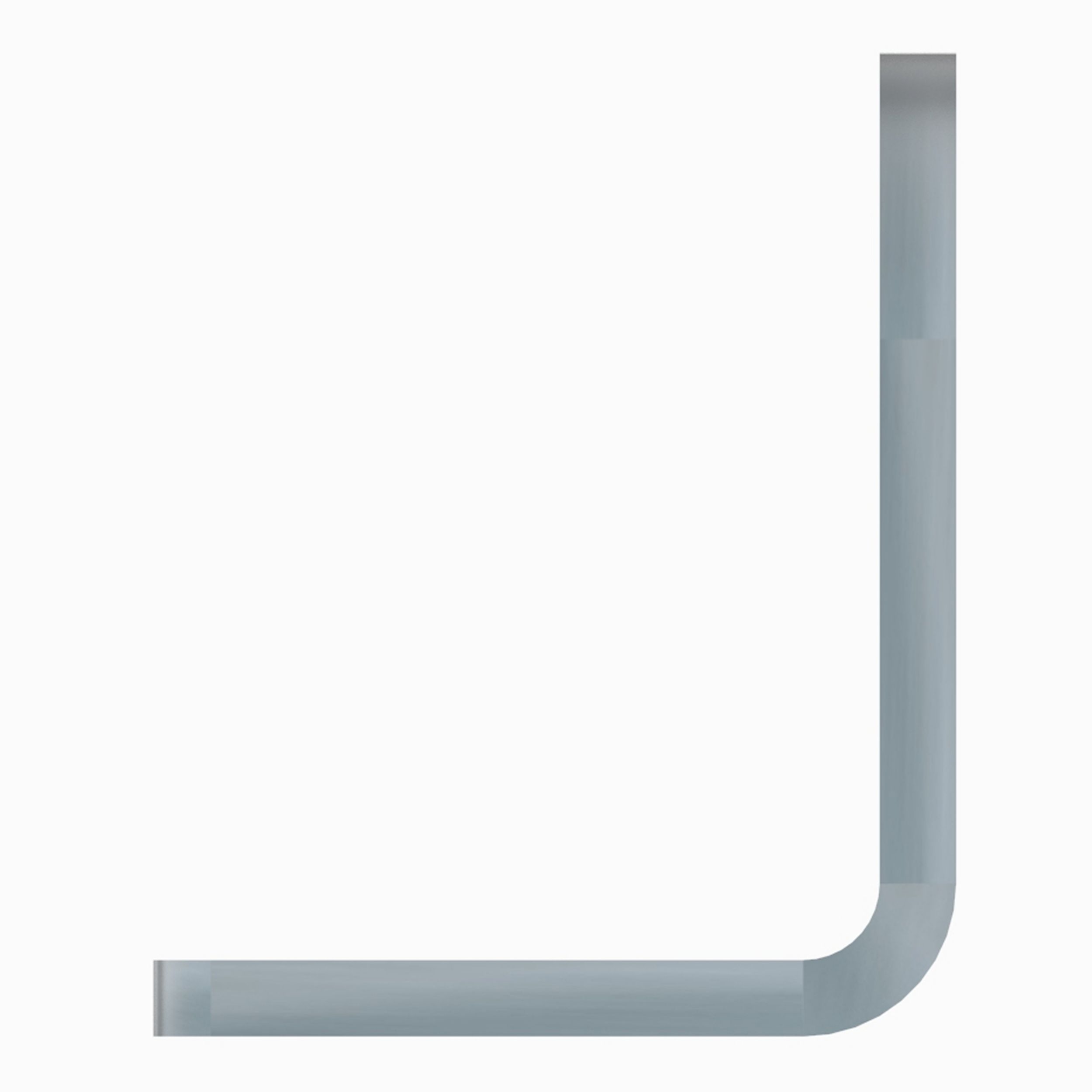

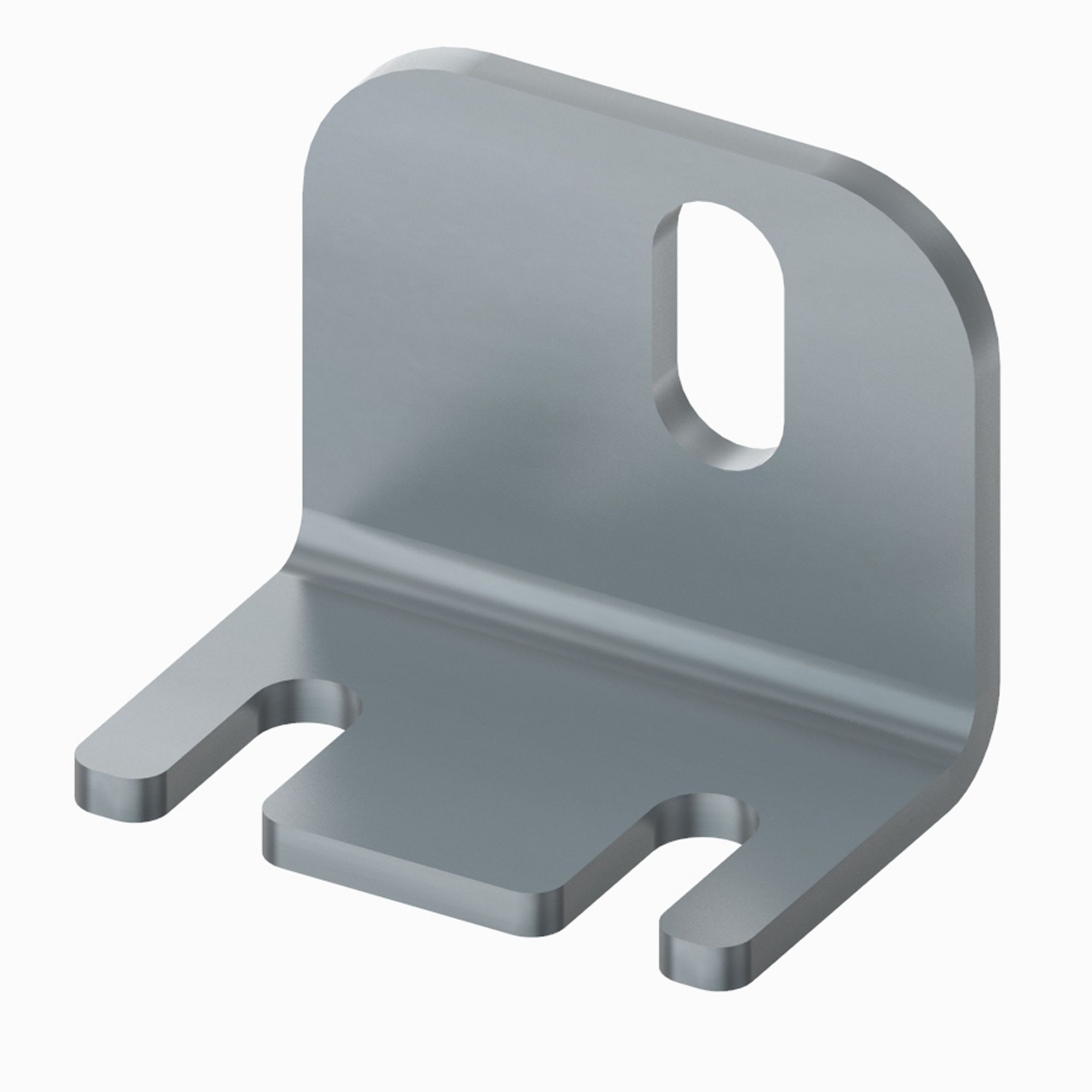

An insert bracket is a component of a mechanical system that consists of a plate that provides support to the insert assembly of the engine hood. The Bracket is bent at an angle of 90 degrees to connect the components. It may have holes or other features that allow it to be fastened to other parts of the system.

Attributes:
• Provided with 3 mounting slots to fit fastener of size M8
• Provides structural support or attaches one component to another
• Manufactured with steel which provides high strength

Applications:
An insert bracket is used to connect and support the insert assembly of the engine hood with other component, this type of Bracket is mostly used in Cat 415F2, 415F2 IL, 416F, 416F2, 420F, 420F2, 422F, 422F2, 426 F2, 427F2, 428F, 428F2, 430F, 430F2, 432F, 432F2, 434F, 434F2, 444F, 444F2, 416, 424, and 420 Backhoe Loaders.

• Height (in): 1.65

• Height (mm): 42

• Length (in): 2.4

• Length (mm): 61

• Material: Steel,Carbon Steel,Alloy Zinc

• Thickness (in): 0.15

• Thickness (mm): 4

• Width (in): 2.02

• Width (mm): 51.5
