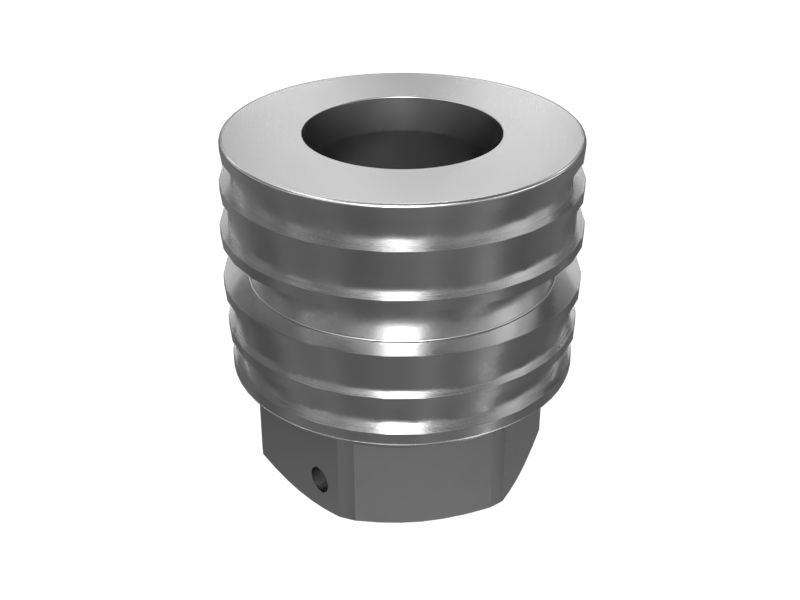

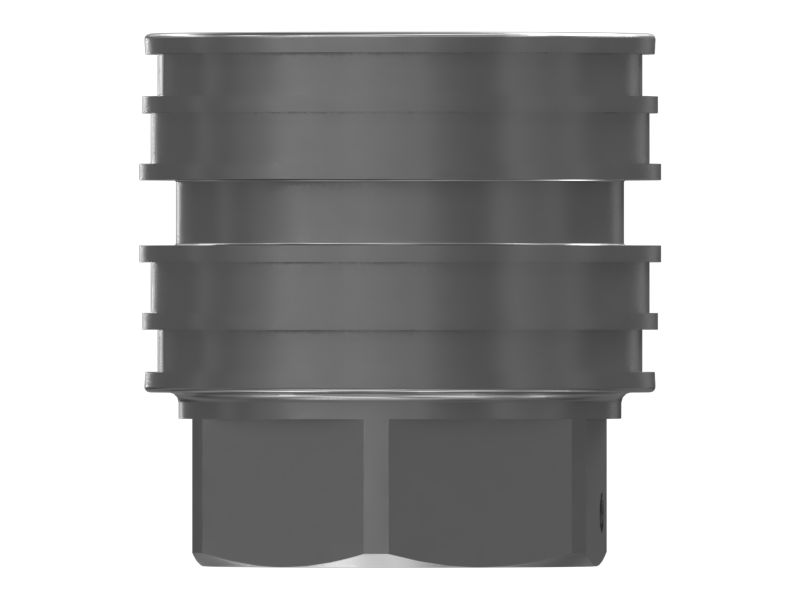

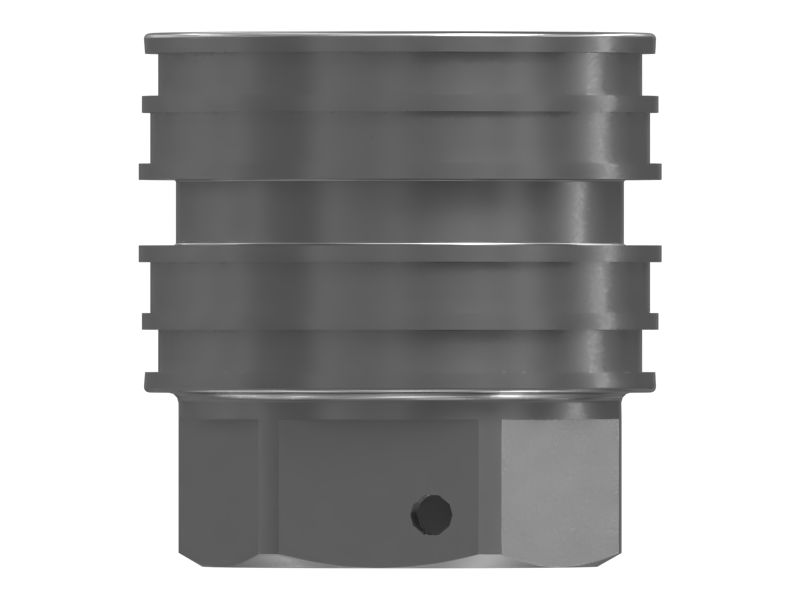

390-4225: ПОРШЕНЬ

Description:
A Bucket Cylinder Piston is an integral part of the cylinder assembly and is directly connected to the piston rod. The piston is connected to a piston rod, which extends outside the cylinder and attaches to the bucket. As the piston moves back and forth within the cylinder bore, it drives the piston rod's motion, thereby controlling the bucket's movement.

Attributes:
• Made of durable material and it is resistant to wear.
• Precisely machined to ensure a proper fit within the cylinder barrel and maintain a sealed hydraulic chamber.
• Withstand the repetitive cycles of extension and retraction without compromising its structural integrity.

Application:
A Bucket Cylinder Piston is a component that converts hydraulic energy into mechanical force. It divides the cylinder barrel into two chambers, allowing for controlled movement of the bucket attachment in heavy machinery, and is mainly used in Cat 311D, 311F, 312D, 312E, 312F, 313D, 313F, 314D, 314E, 314F, 315F, 320, 320D, 320E, 320F, 323, 323D, 323F, 324D, 324E, 326, 326D, 326F, 329D, 329E, 329F, 330, 330F and 333 Excavators.

• Hex Size (in): 2.95

• Hex Size (mm): 75

• Inner Diameter (in): 2.01

• Inner Diameter (mm): 51

• Internal Thread Size: M10X1.5, M50X2

• Material: Steel,Carbon Steel

• Outer Diameter (in): 3.92

• Outer Diameter (mm): 99.5

• Overall Length (in): 3.98

• Overall Length (mm): 101

• Weight (kg): 3.34

• Weight (lb): 7.35
