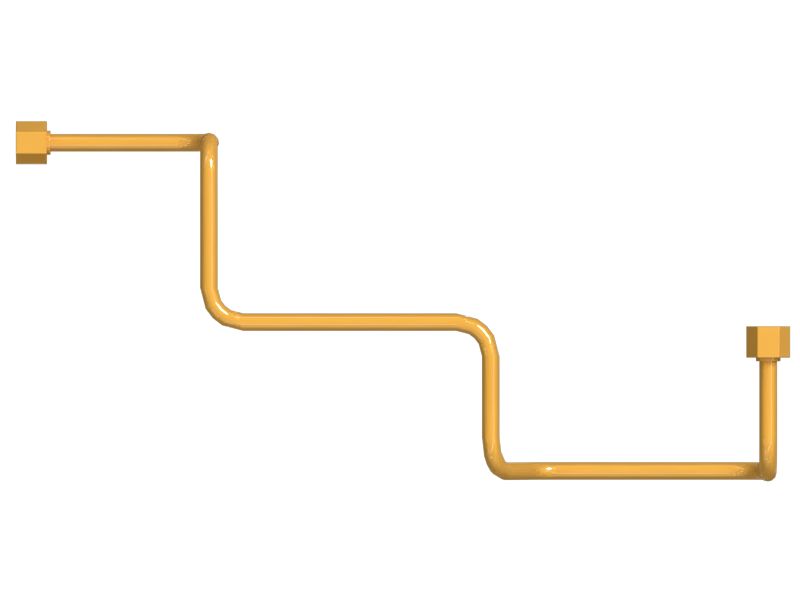

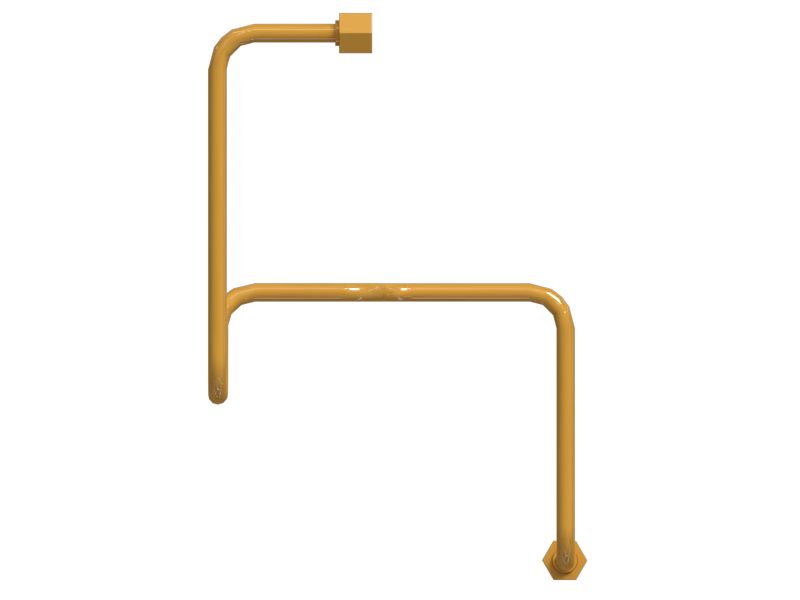

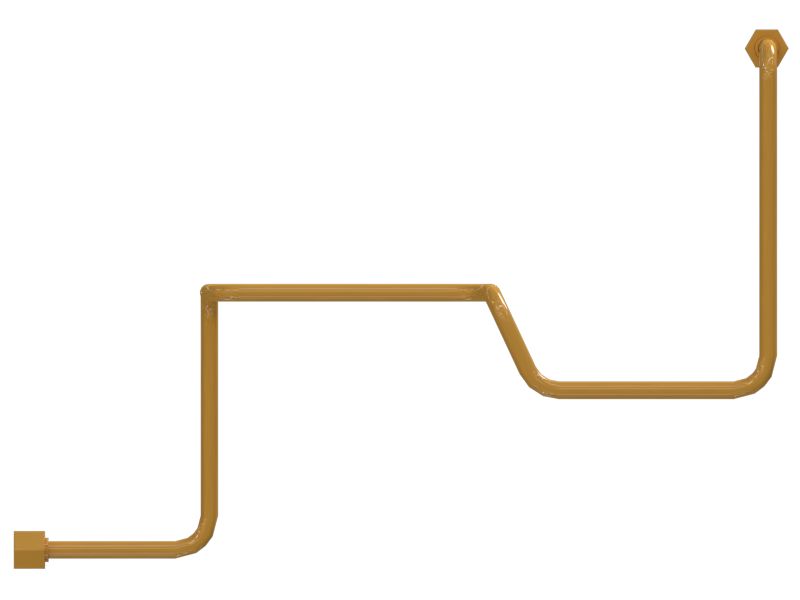

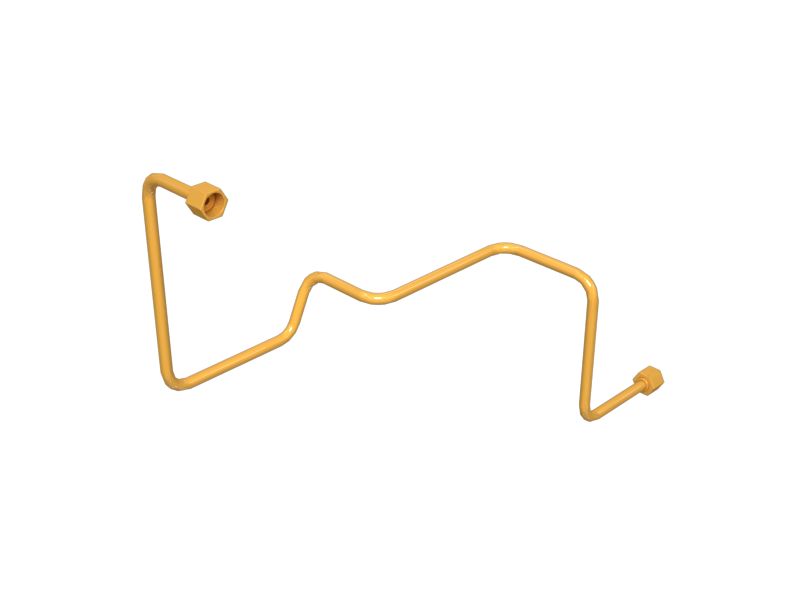

389-9841: ТРУБКА В СБОРЕ

The Hydraulic Lines Tubes Assembly facilitates the reliable and efficient transfer of pressurized fluid. It includes a swivel nut, swivel ORFS (O-Ring Face Seal), and a tube. These components work together to form a secure and flexible conduit for hydraulic fluid within the hydraulic unit. The swivel nut and swivel ORFS provide a secure connection between the tube and hydraulic components, allowing the pressurized fluid to flow through the tube, delivering hydraulic power to the units.

Attributes:
• Withstand a minimum burst pressure of 55,200 kPa, ensuring the safe and reliable transmission of pressurized fluid
• Handles a nominal pressure of 13,800 kPa, providing a robust and dependable conduit for pressurized fluid
• Provided with the wetted surface area of the internal surface is approximately 0.0234 m^2, providing sufficient contact area for efficient heat transfer

Applications:
The Hydraulic Lines Tubes Assembly conduit the fluid in Hood Tilt Lines. It allows for flexibility in routing the hydraulic lines. Ensure a leak-free and secure connection between the hydraulic tube assembly and other hydraulic components, preventing fluid loss and maintaining unit integrity.

• Outer Diameter (mm): 10

• Outer Diameter (in): 0.37

• Approximate Overall Length (mm): 964

• Material: STEEL,Alloy Mixed
