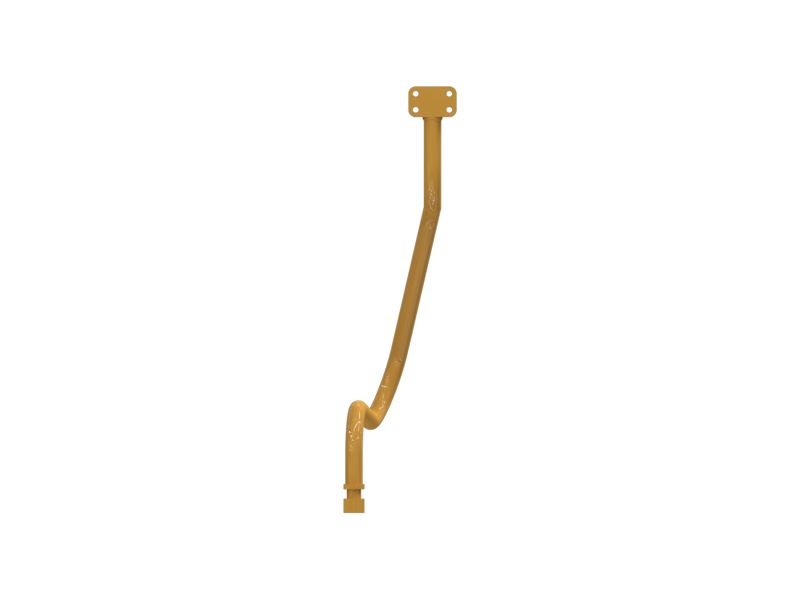

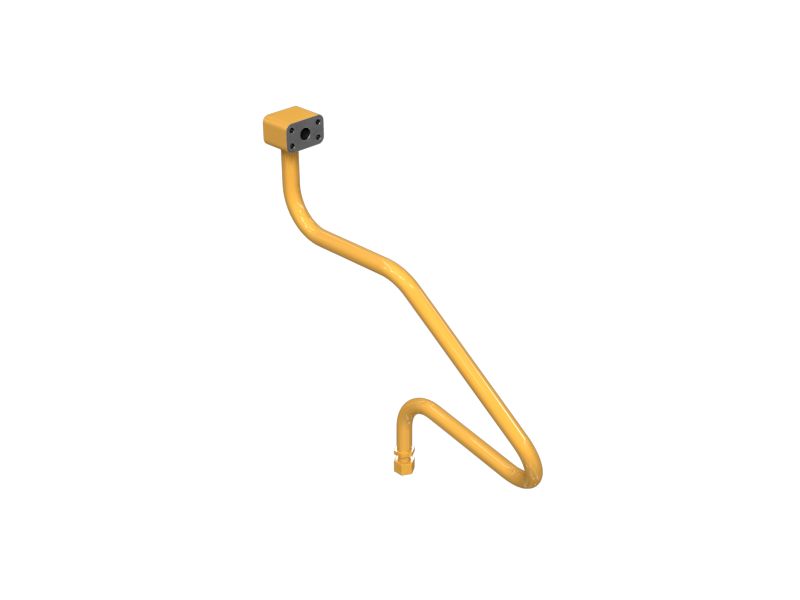

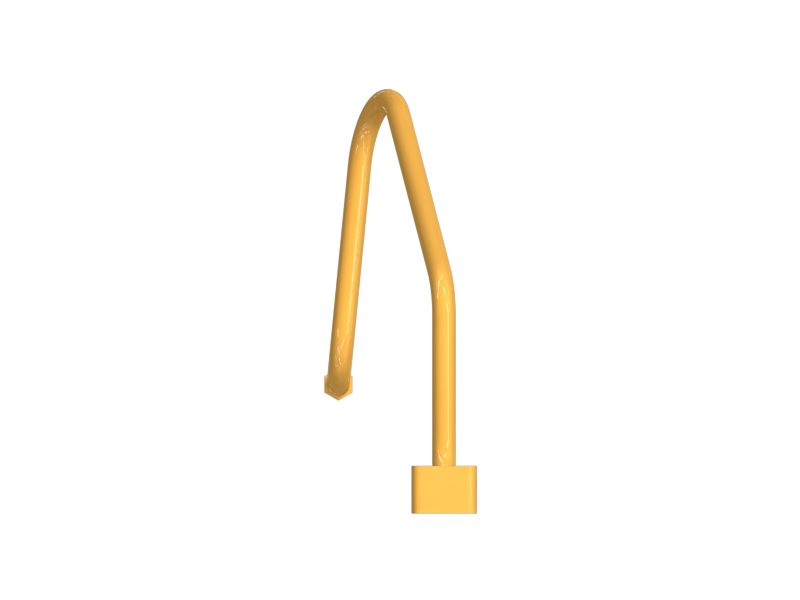

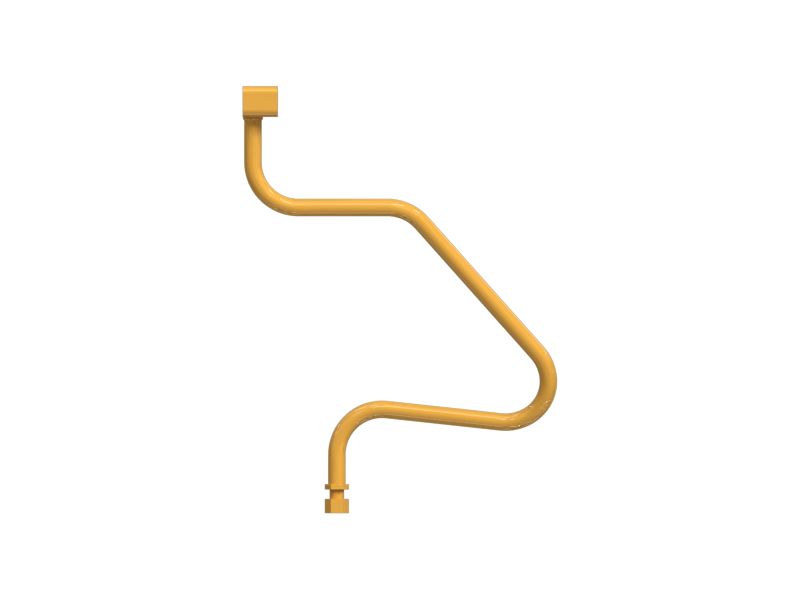

388-2485: ТРУБКА В СБОРЕ

A Tilt Cylinder Lines Tube is designed to connect to the tilt cylinder in the equipment. It transfers hydraulic fluid between the hydraulic system and the tilt cylinder, enabling accurate control over the tilting movement of the equipment's attachment. The tube ensures efficient fluid flow while maintaining structural integrity under demanding operating conditions. By providing a reliable connection between the hydraulic system and the tilt cylinder, it enables operators to control the tilt angle of attachments with accuracy and responsiveness, enhancing productivity and versatility on job sites.

Attributes:
• Provides leak-proof connections.
• Smooth inner surface for optimal flow.
• Resistant to cracking under pressure.
• Pressure tested for safety.
• Heat-resistant tubing for extreme conditions.

Applications:
A Tilt Cylinder Lines Tube is located between the hydraulic system and the tilt cylinder, forming a connection point that facilitates the flow of hydraulic fluid to control the tilting movement of attachments within the equipment.

• Material: Steel,Carbon Steel

• Outer Diameter (mm): 34

• Length (mm): Not specified

• Connector Type: Elbow; Fitting

• Flange Type: -20 Code 62

• Nut Type: Swivel

• Outer Diameter (in): 1.34

• Length (in): Not specified

• Fitting Size (in): -16 Female ORFS

• Thread: 1-7/16-12
