387-6548: ПЕРЕКЛЮЧАТЕЛЬ КУЛИСНЫЙ В СБОРЕ

The Rear Wiper Washer Rocker Switch is a type of electrical switch that features a simple rocking mechanism to either connect or disconnect an electrical circuit. It is a switch that controls the rear windshield wiper and washer fluid functions. When the rocker switch is pushed or toggled to the wiper position, it activates the wiper motor, causing the wiper arm to move back and forth. If the switch is pushed or toggled to the washer position (often by pushing it further or in a different direction), it activates the windshield washer pump. This pump sprays washer fluid onto the window to help dissolve and remove stubborn dirt.

Attributes:

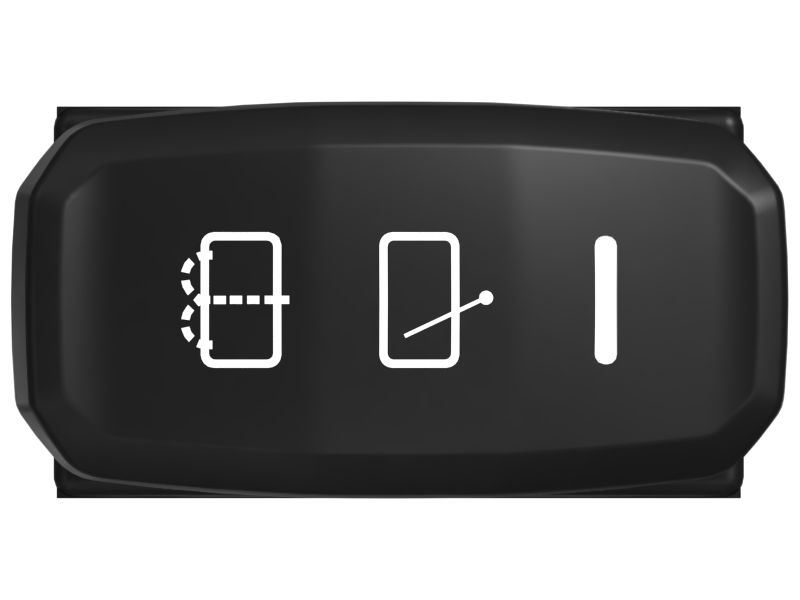

• Three-position illuminated rocker switch
• Symbol (R): Rear Window–Wiper (ISO 0097)
• Symbol (S): Rear Window–Washer (ISO 0099)
• Symbol (T): Indicator
• Vibration Range: 10g at 10-500Hz
• Dielectric Strength: 1500 Volts RMS
• Sealing: Front panel IP66

Applications:
This Rear Wiper Washer Rocker Switch is used to activate and control the rear wiper blade's movement across the rear windshield to improve visibility and to spray washer fluid onto the windshield to clean it.

• Material: Alloy Copper,Polyamide Plastic
