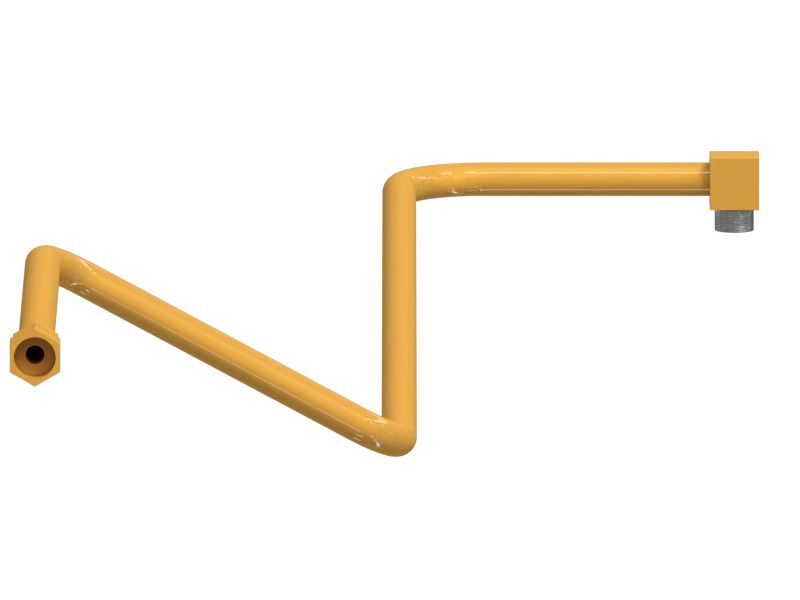

385-3078: ТРУБКА В СБОРЕ

An Auxiliary Hydraulic Lines Tube Assembly facilitates the channeling of hydraulic fluid to power the hydraulic cylinder and attachments located on the stick of the machine. The tube is routed along the stick structure to minimize interference with other components and moving parts located on the stick. The tube ensures smooth hydraulic fluid flow and pressure drops. The assembly includes an elbow, and coupling on both ends to ensure a secure and leak-free connection.

Attributes:
• Withstands 28000 kPa relief valve pressure, reduces the risk of potential leaks
• Ensures efficient fluid flow to the stick cylinder and attachment

Applications:
An Auxiliary Hydraulic Lines Tube Assembly is used to serve as a conduit for the flow of fluid to actuate the cylinders thereby controlling the extension and retraction of the cylinder.

• Outer Diameter (mm): 22

• Outer Diameter (in): 0.85

• Approximate Overall Length (mm): 2000

• Material: STEEL
