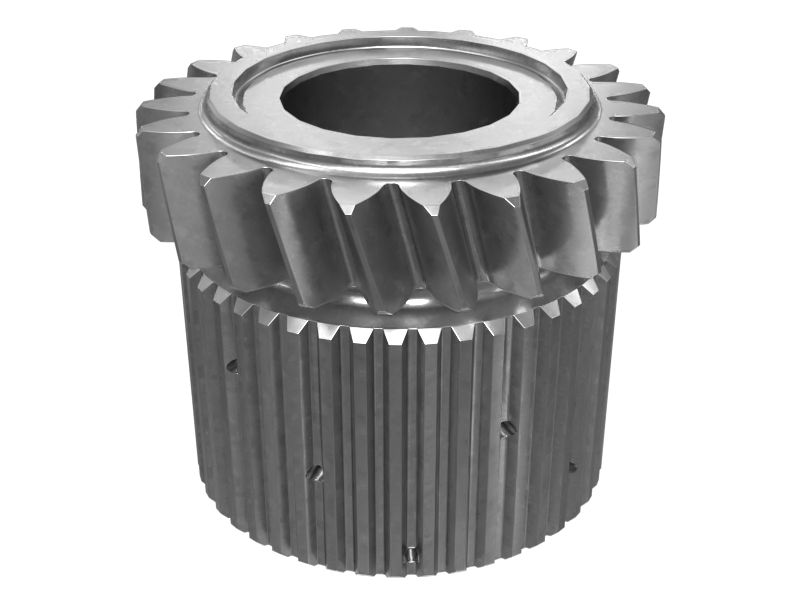

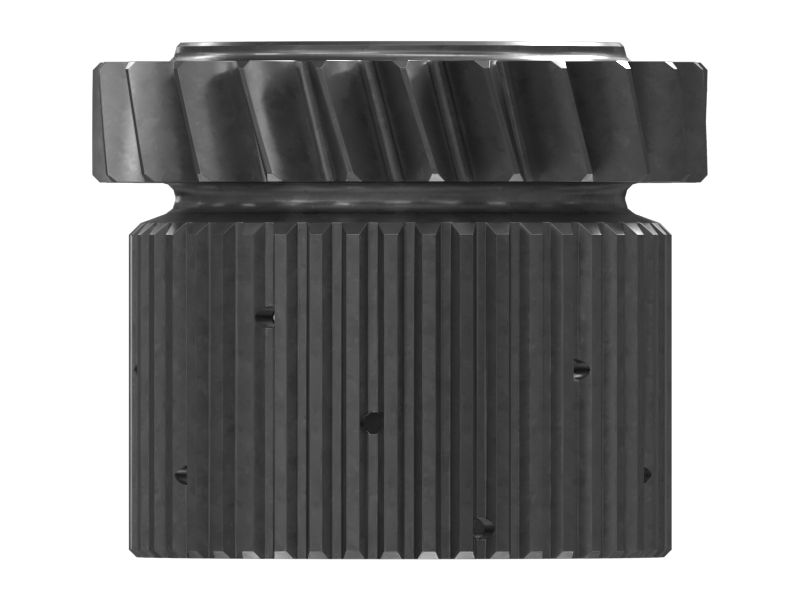

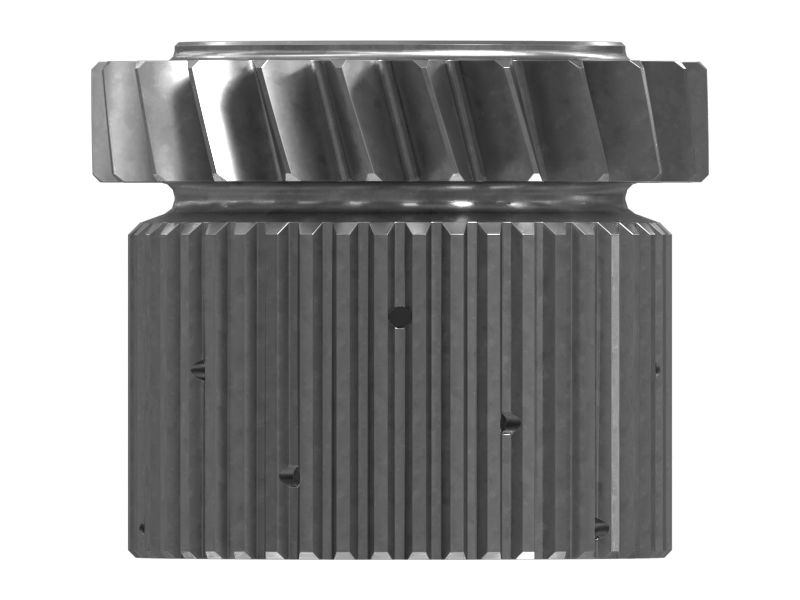

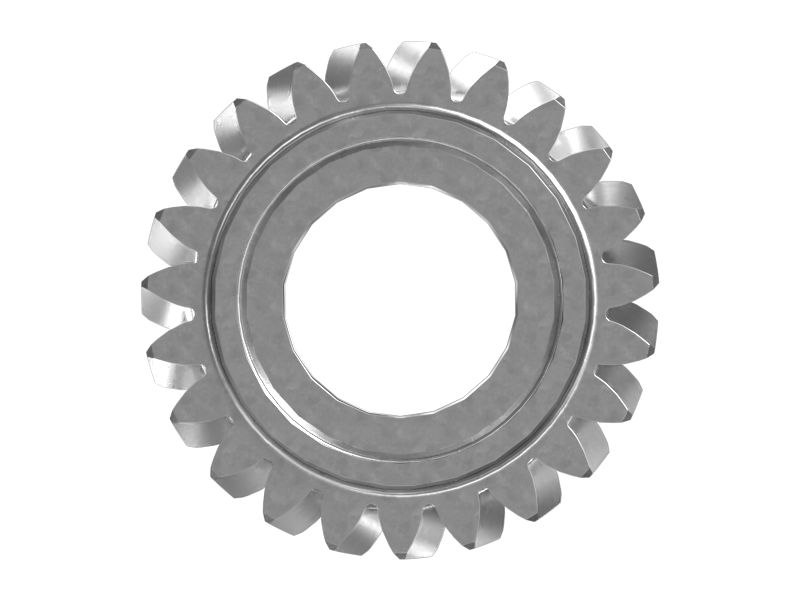

383-8012: Gear

Description:
Cat® Gears are machined from carefully selected materials to exacting specifications that match the loads encountered in Cat machines. They are manufactured using special, and in some cases proprietary, heat treat processes — including case carburizing, nitriding, and induction hardening. Cat® Gears have the industry's highest power density, or the amount of power a gear can transmit relative to its size and are designed with reusability in mind. Consequently, they are more durable and keep your overall machine operating costs down. Cat® Replacement gear for the Idler Shaft group in the final drive. This gear has two gear profiles, namely external helical gear and external involute spline.
Cat® Parts are manufactured to precise specifications and are built for durability, reliability, productivity, less environmental impact, and reuse.

External Involute Spline Data
No. of Teeth : 45
Tip Diameter : 72.45 mm (2.852 in)
Pitch Diameter : 71.438 mm (2.813 in)
Base Diameter : 61.867 mm (2.436 in)
Normal Module : 1.587
Normal Pressure Angle : 30°

External Helical Gear Data
No. of Teeth : 23
Tip Diameter : 82.31 mm (3.24 in)
Pitch Diameter : 71.434 mm (2.812 in)
Base Diameter : 66.846 mm (2.632 in)
Normal Module : 3
Helix Angle : 15°
Normal Pressure Angle : 30°

Application:
Cat® Gears are built specific to their application to ensure all drive train parts work and wear together as a system. Consult your owner's manual or contact your local Cat Dealer for more information.

• Length (mm): 68.6

• Length (in): 2.7

• Outer Diameter (mm): 82.31

• Outer Diameter (in): 3.24

• Inner Diameter (mm): 37.02

• Inner Diameter (in): 1.46

• Material: Alloy Steel,Low Alloy Steel

• Approx. Weight (kg): 0.873

• Approx. Weight (lb): 1.92
