382-6526: ПЛАСТИНА

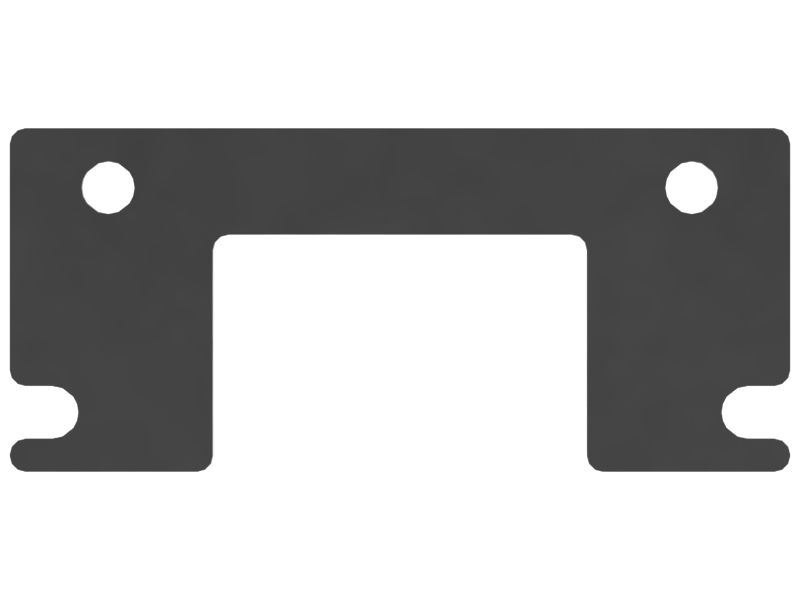

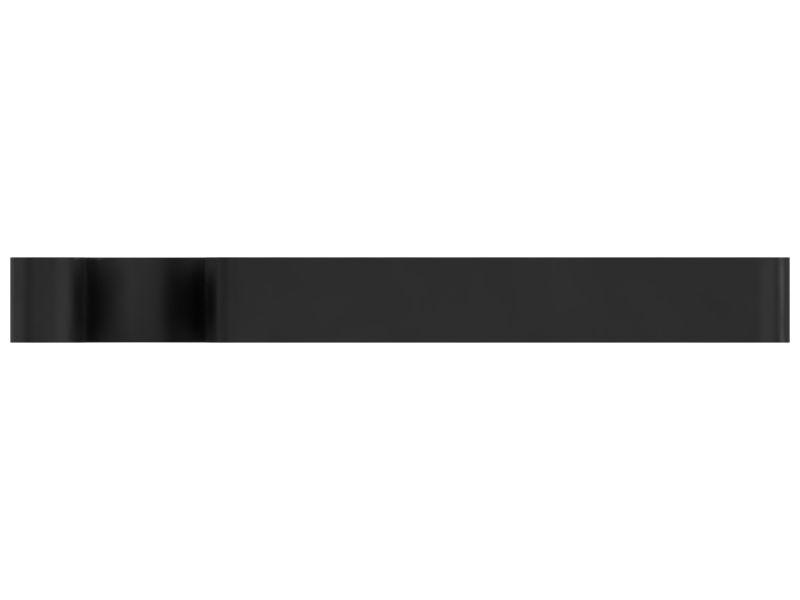

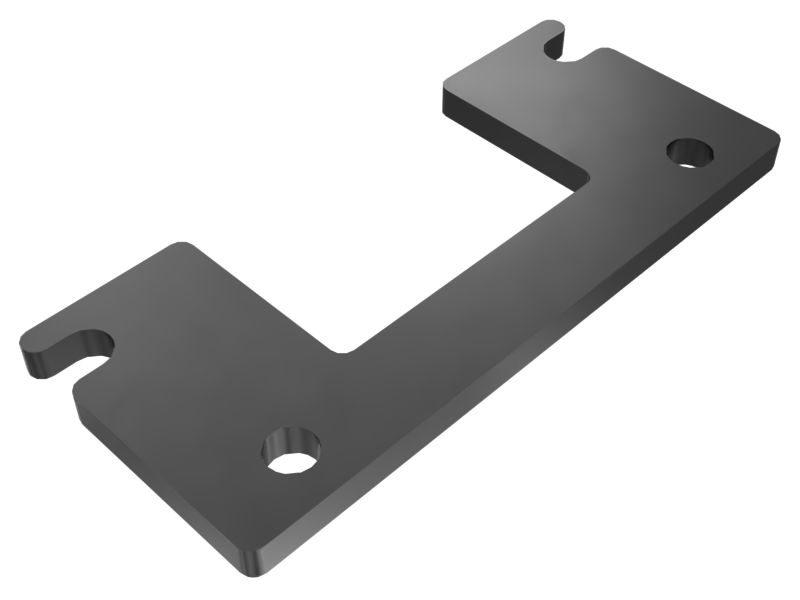

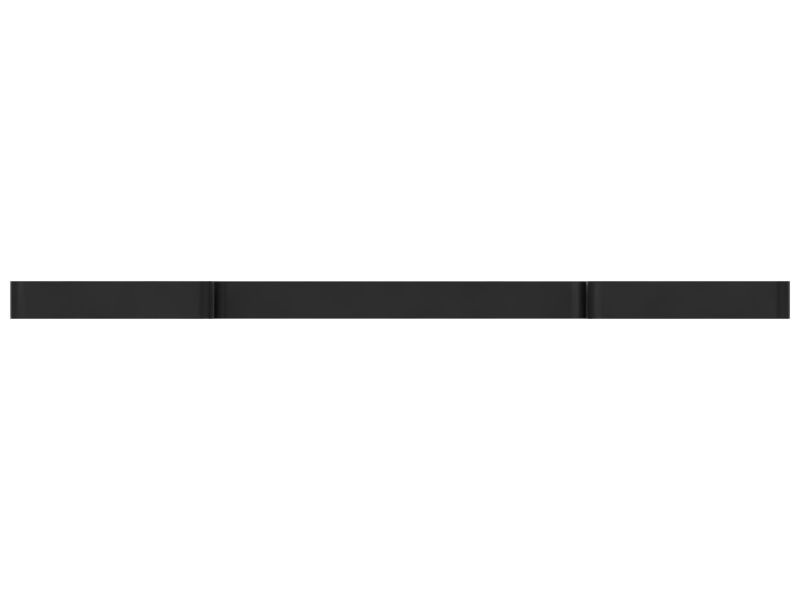

A Track Roller Frame Recoil Spring Retainer Plate provides support for the track adjuster recoil spring and retains the spring in its position along with the help of mounting blocks within the track roller frame. It helps maintain proper tension in the spring and assists in keeping the front idler in the correct position. It is a sturdy and stable plate that can support heavy loads without bending or breaking. It is provided with specific attachment points, such as holes or slots, that align with the mounting points on the track roller frame.

Attributes:
• Provided with 2 mounting holes and 2 slots to attach the blocks to the plate using M16 fasteners
• Distributes the loads and reduces stress concentrations to increase the overall structural strength

Applications:
A Track Roller Frame Recoil Spring Retainer Plate is used to hold and retain the recoil spring in the track roller frame and ensure the proper alignment of the recoil spring, preventing it from dislodging or losing tension during normal operation.

• Material: Alloy Zinc,Structural Steel
