379-2633: ШАЙБА

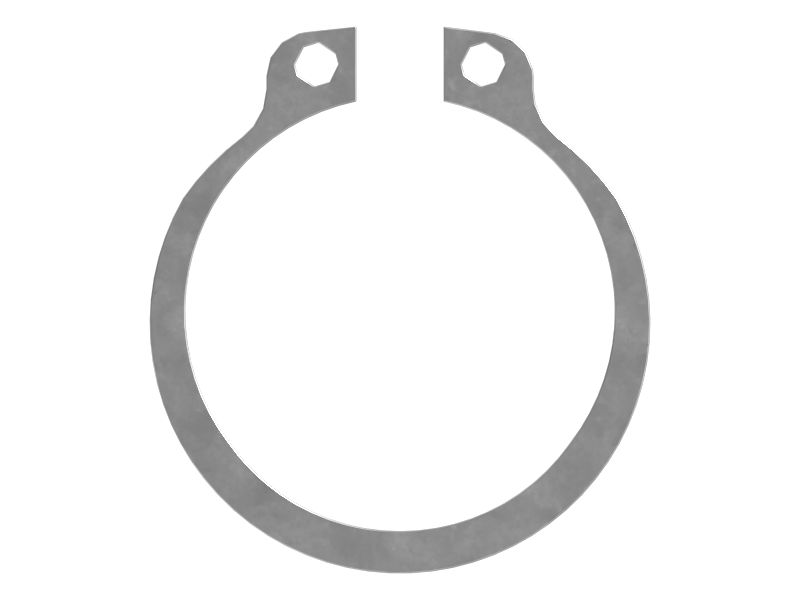

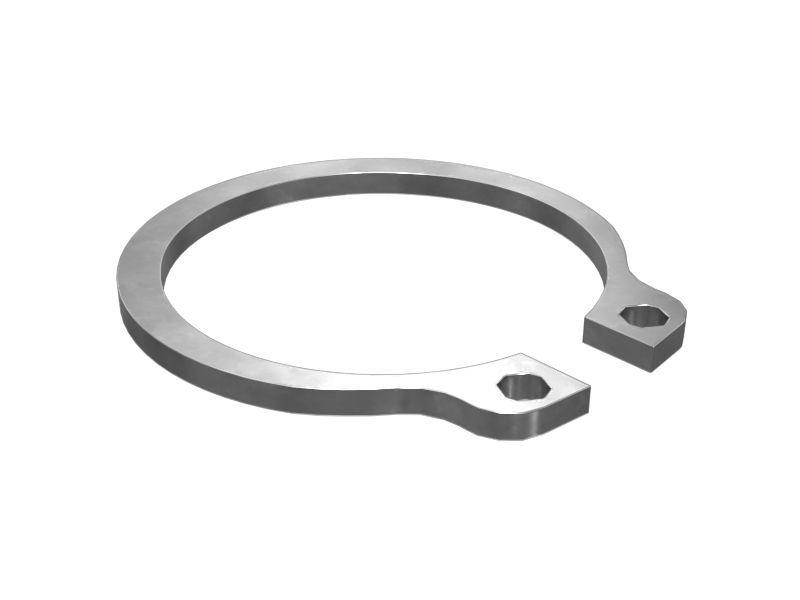

An external retaining ring also known as an external snap ring or a circlip sits in the grooves on the exterior of shafts of theie respective size. The areas of the ring that protrude out from the shaft hold it in place. An external ring retaining is a component in the armrest in the assembly of the seat to give support to the washer attached to the spring that is placed in the assembly of the mount that is attached to the frame.

Attributes:
Provide a larger surface area to spread the load and prevent damage to the surface
Reduce wear and damage on components
Withstand high temperatures without losing their strength or integrity
Manufactured to precise specifications and are built for durability and reliability

Applications:
An external ring retaining is used in the assembly of a seat in a canopy arrangement, predominantly used in Cat® 301.4C, 301.7D, 302.2D, 302.4D, and 302.7D Mini Excavators.

• Diameter (in): 0.75

• Diameter (mm): 19

• Hole Size (in): 0.08

• Hole Size (mm): 2

• Length (in): 0.98

• Length (mm): 24.9

• Thickness (in): 0.05

• Thickness (mm): 1.2

• Material: Carbon Steel
