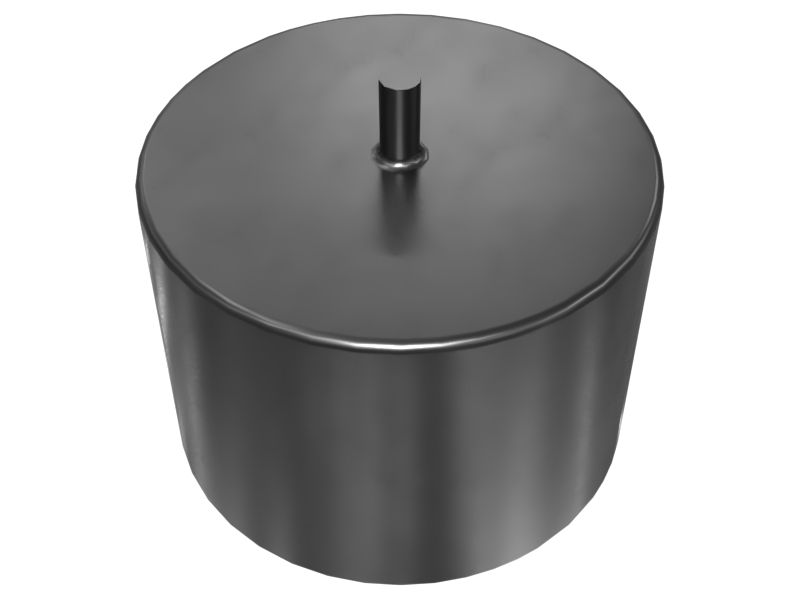

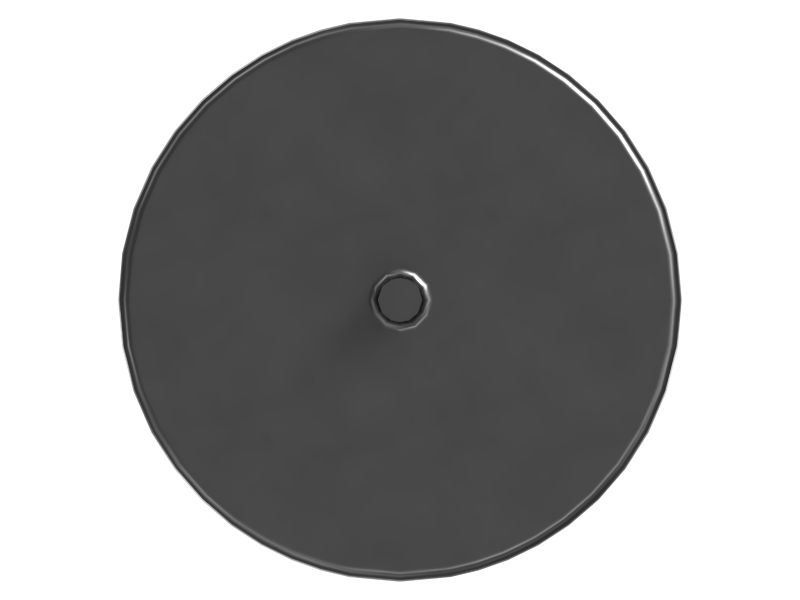

376-3075: 3.9 byte Pin Type Alignment Tool

The Pin Type Alignment Tool facilitates the accurate installation of AccuGrade systems by using JIG dowels. These dowels are temporarily screwed into the designated mounting locations, allowing for accurate centering of the mounting plate. Once the mounting plates are correctly positioned, the JIG dowels are removed, enabling the secure attachment of AccuGrade sensors. This tool is necessary for ensuring that the AccuGrade systems are installed with exact alignment, which is necessary for their proper function. By using this alignment tool, the installation process becomes more efficient, reducing the risk of errors and ensuring optimal performance of the AccuGrade system.

Attributes:
• Allows for quick and easy setup with removable JIG dowels after plate installation.
• Provides a secure and stable positioning for accurate sensor attachment.
• Reduces the need for additional tools by performing multiple functions.
• Increases accuracy in the placement of sensors, ensuring proper functionality.

Applications:
An Alignment Tool is used to align mounting plates for rotary position sensors on the stick and ensures accurate placement, enabling accurate sensor operation.

• Weight (kg): 0.537

• Weight (lb): 1.184

• Length (mm): 43.8

• Length (in): 1.724

• Outer Diameter (mm): 49.9

• Outer Diameter (in): 1.965

• Material: Steel,Low Alloy Steel,Coating Mixed
