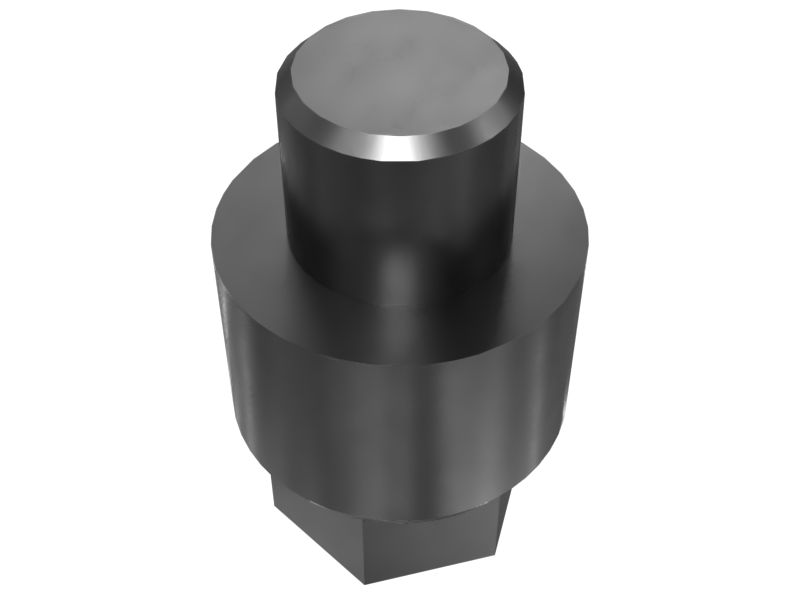

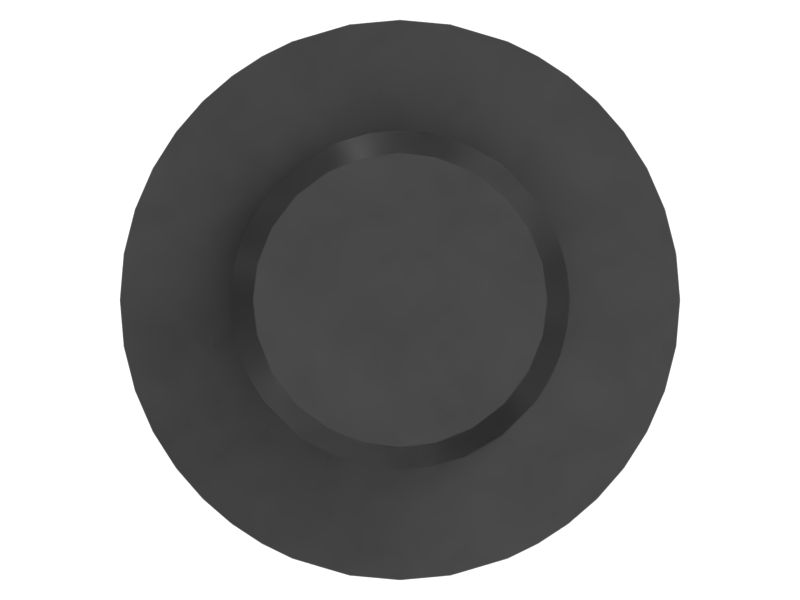

376-3074: M30 Screw Type Alignment Tool

An Alignment Tool sets AccuGrade systems by providing accurate alignment during installation. This tool includes temporary JIG dowels that are screwed into place to guide the centering of mounting plates. Securing these dowels ensures that the mounting plates are perfectly aligned, which is necessary for the subsequent attachment of sensors. Once the plates are properly positioned and secured, the JIG dowels are removed, allowing for the installation of sensors for the AccuGrade systems. This alignment process ensures that the system functions correctly, improving the overall efficiency and accuracy of the equipment.

Attributes:
• Allows for accurate sensor attachment post-installation.
• Facilitates correct positioning of AccuGrade system components.
• Supports accurate and effective system calibration.
• Maintains alignment integrity during installation.

Applications:
An Alignment Tool is used to align mounting plates for rotary position sensors on the boom and ensures accurate placement, enabling accurate sensor operation.

• Weight (kg): 0.846

• Weight (lb): 1.865

• Length (mm): 80

• Length (in): 3.15

• Outer Diameter (mm): 49.9

• Outer Diameter (in): 1.965

• Hex Size (mm): 36

• Hex Size (in): 1.417

• Material: Steel,Low Alloy Steel,Coating Mixed

• Thread: M30x3.5-6g
