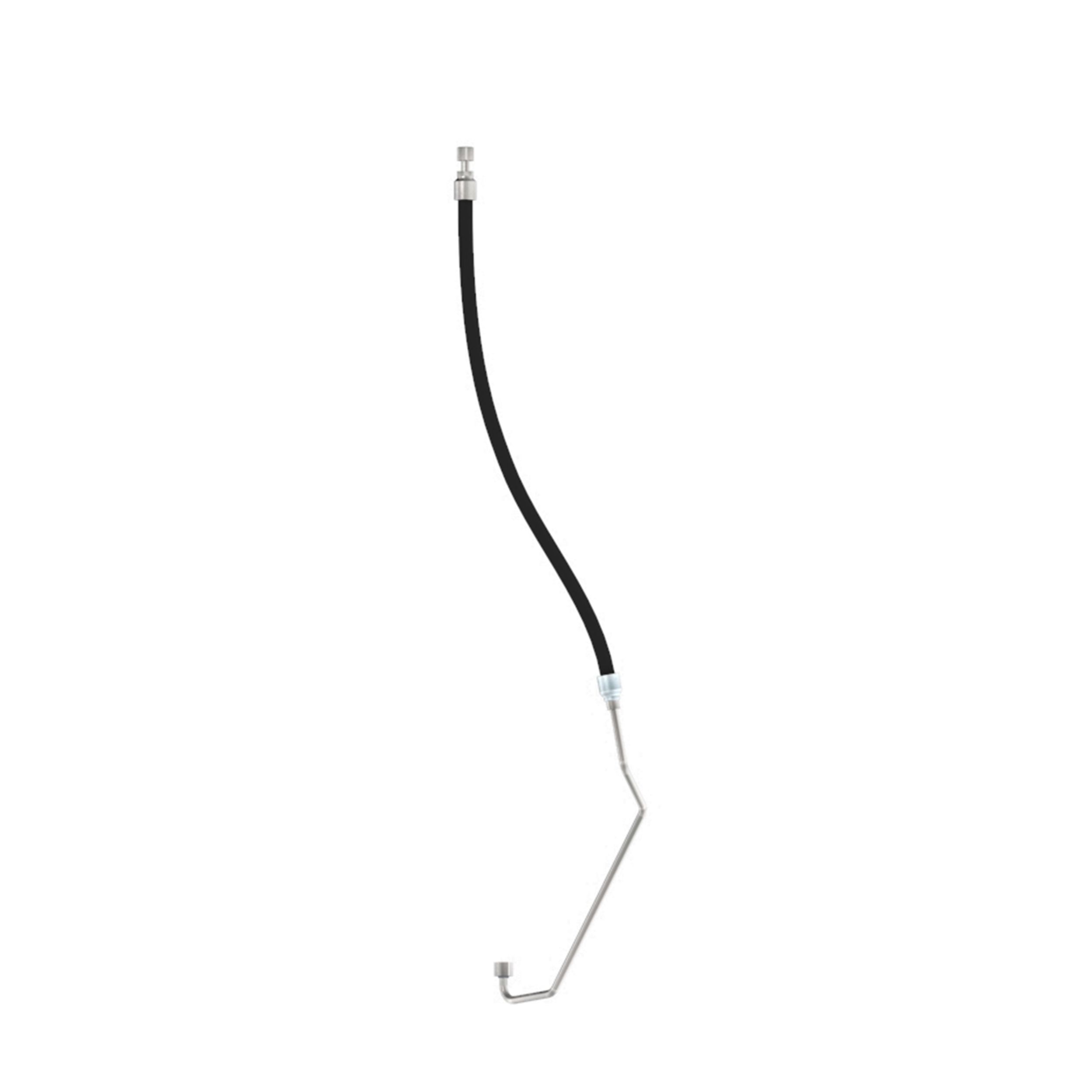

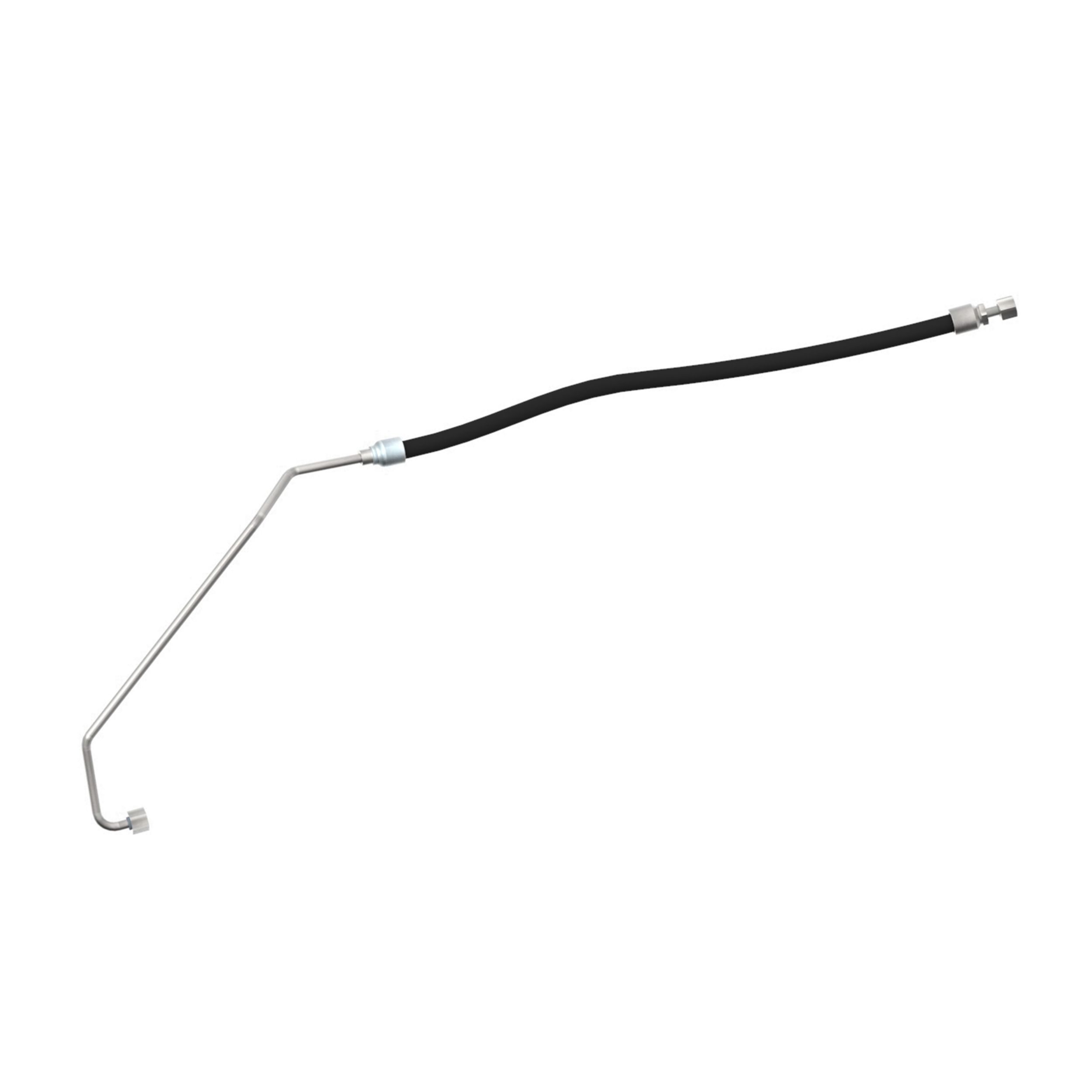

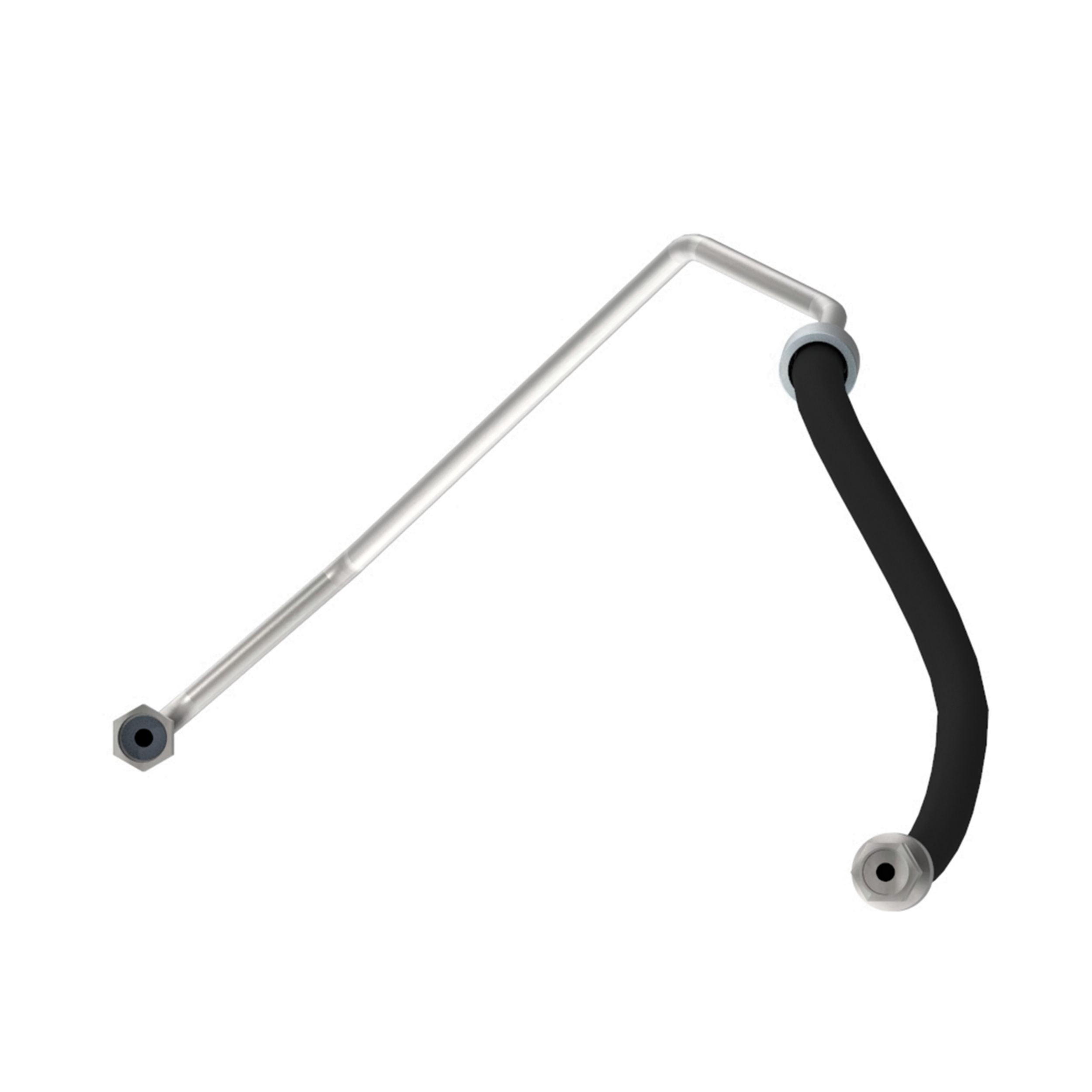

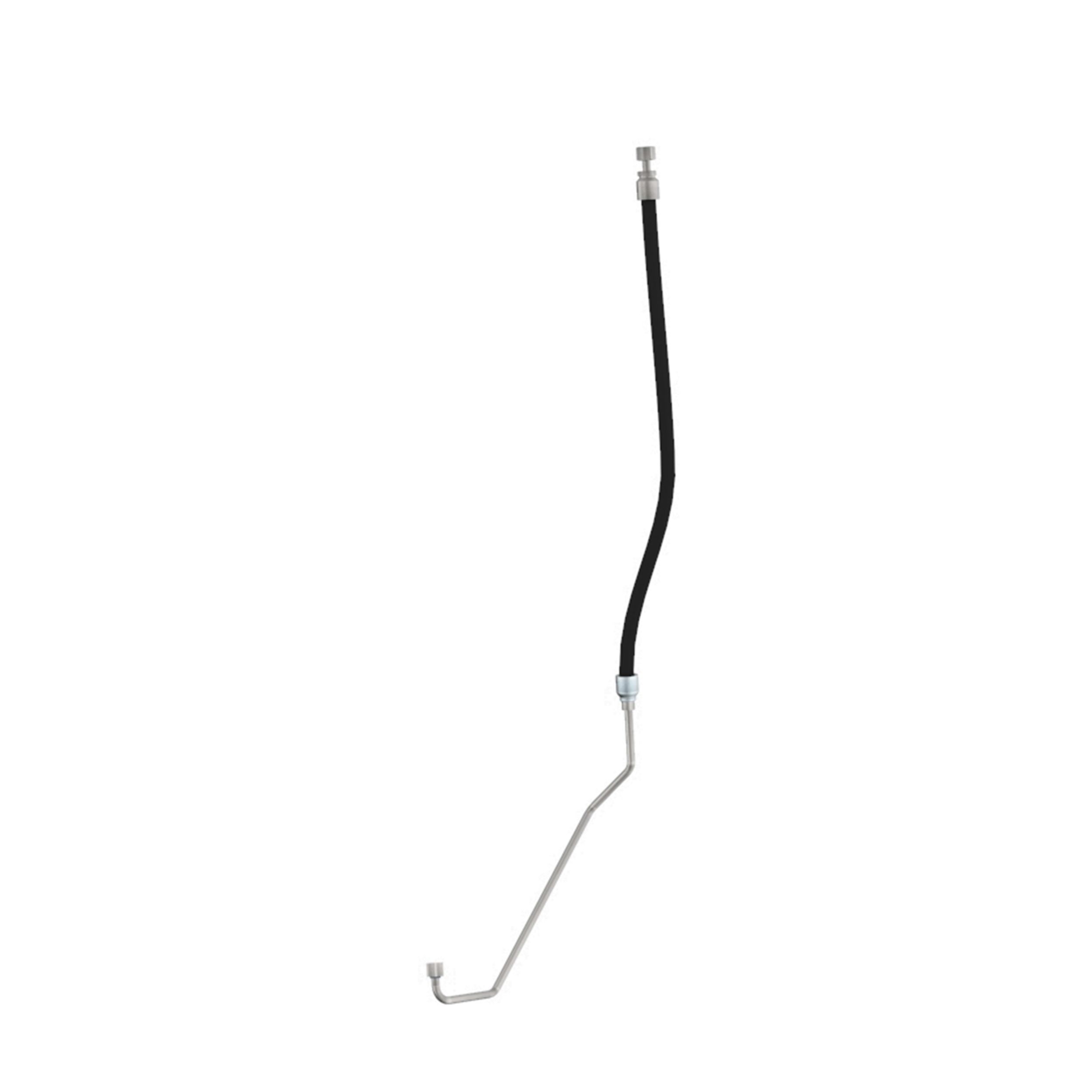

375-8776: ТРУБОПРОВОДЫ В СБОРЕ

A Fuel Filter Hybrid Lines Assembly is placed in the cylinder block for the fuel unit that enables the seamless flow of fuel to the filter, ensuring effective filtration of contaminants and maintaining the proper functioning of the engine. Its primary function is to conduct pressurized fuel from the fuel lines to the fuel filter. It consists of a combination of a bulk hose, coupling tube assembly, and straight coupling that is engineered for the requirements of the fuel lines. It is constructed of durable materials that can withstand high pressure and temperature, ensuring that fuel is delivered accurately and efficiently to support engine operation.

Attributes:
• Withstands 240 kPa valve pressure without deforming or breaking
• Provided with a tube assembly and straight coupling to create a tight and reliable seal between the components, ensuring a leak-free connection
• Helps reduce stress on the fuel line and fittings, minimizing the risk of leaks or damage due to misalignment or movement

Applications:
A Fuel Filter Hybrid Lines Assembly is used to conduct high-pressure fuel from one point to another within the fuel filter lines and supply precise and consistent fuel to the engine, preventing loss of pressure and fuel leakages.

• Inside Diameter (mm): 10

• Thread: 11/16 - 16 ORFS

• Hose Size, ID Min. (mm): 9.53

• Hose Size, ID Min. (in): 0.375

• Hose Length (mm): 710

• Hose Length (in): 27.952

• Weight (kg): 0.558

• Weight (lb): 1.23

• Material: Medium Pressure Hose
