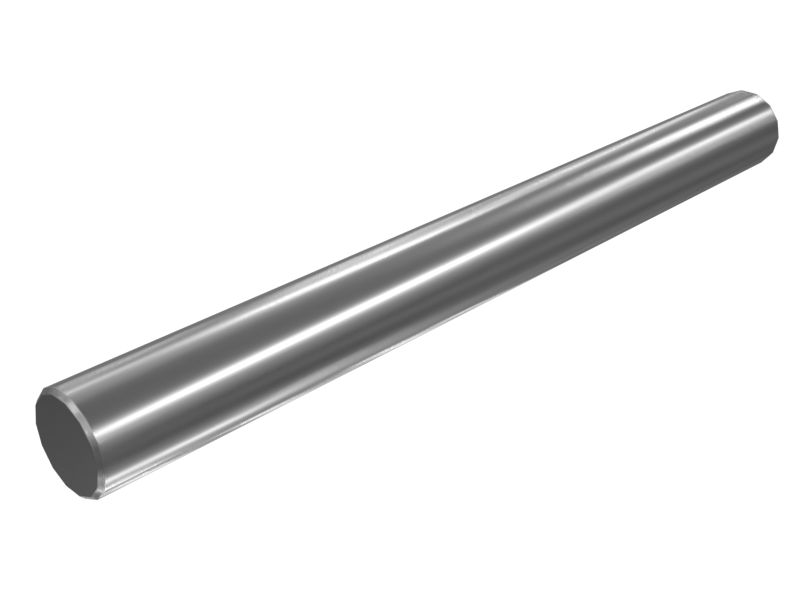

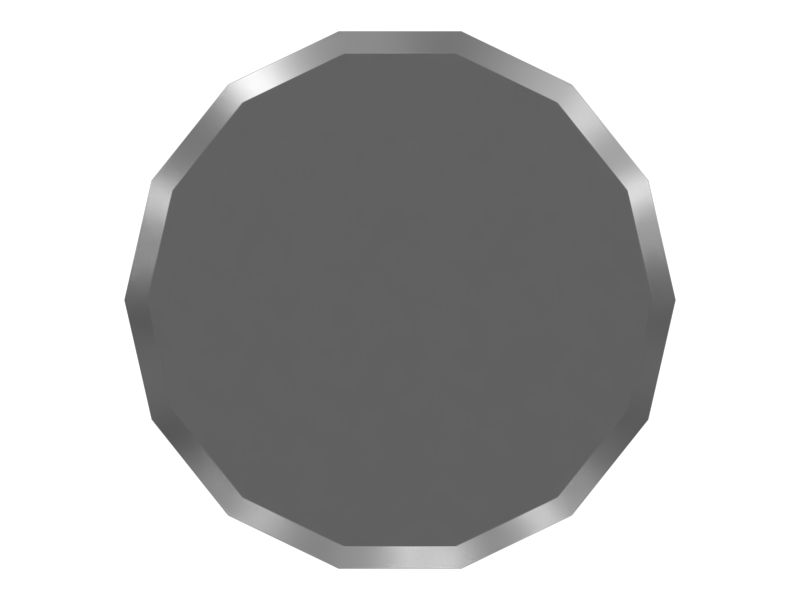

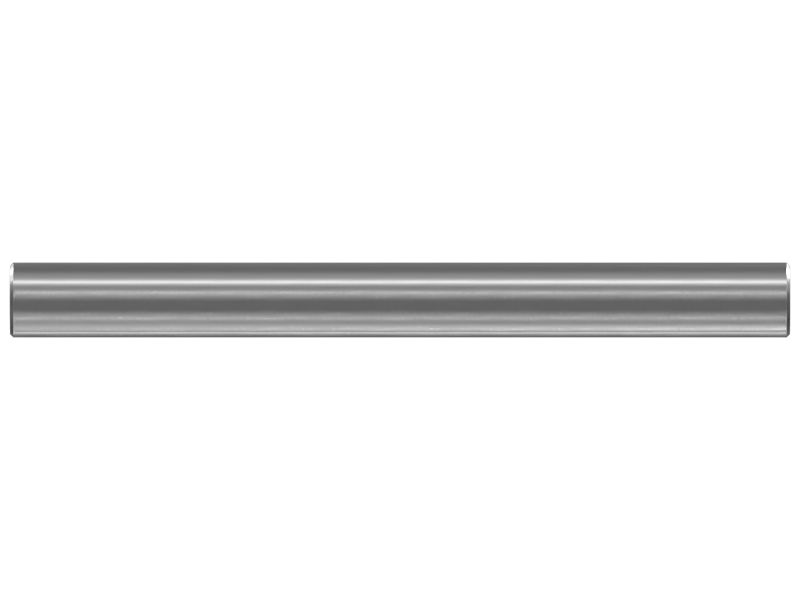

374-7037: ВТУЛКА ПОРШНЕВОГО ПАЛЬЦА

Description:
A Stop Pin, also known as a stopper pin or stopper bolt, is a component used to limit the movement or travel of certain parts within the hammer assembly. The stop pin defines the maximum distance that the piston can travel within the hammer assembly during its operation. It acts as a physical stopper to prevent the piston from extending too far or striking against other internal components, which could cause damage or affect the hammer's performance.

Attributes:
• Made of durable and sturdy material, to withstand the repeated impacts and high forces encountered during the operation
• Prevent overextension or overloading of components, reducing the risk of damage and improving the hammer's overall efficiency.
• Proper positioning and adjustment of the stop pin help maintain the desired performance and prevent unnecessary wear or damage.

Application:
A Stop Pin In a hydraulic hammer is a component that is used to limit the movement or position of certain parts within the hammer assembly and is mainly used in Cat 328D, 329D, 336, 336D, and 340 Excavators, B35, H140, and H160 Work Tools.

• Diameter (in): 0.94

• Diameter (mm): 24

• Material: Steel,Carbon Steel

• Overall Length (in): 9.65

• Overall Length (mm): 245

• Weight (kg): 0.87

• Weight (lb): 1.92
