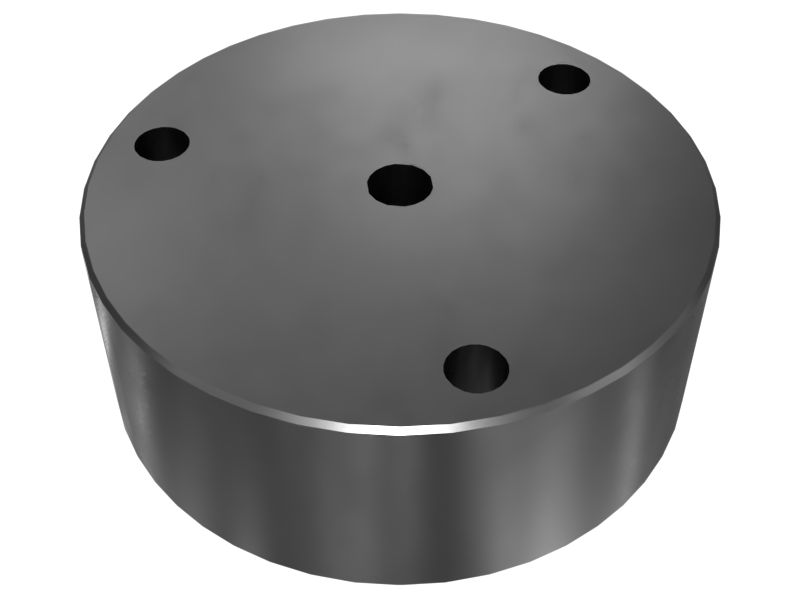

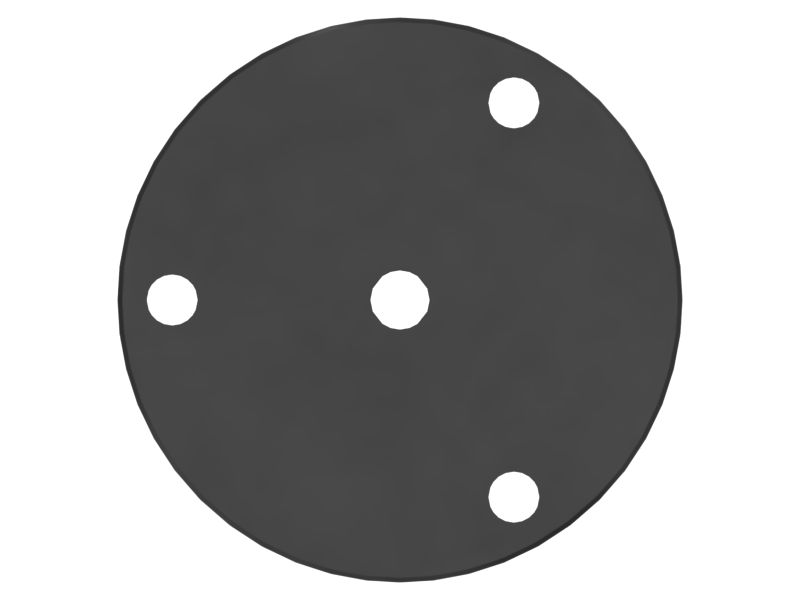

372-6543: 9.1mm Thickness Gauge Plate

The Gauge Plate is used for accurate measurement of shim thickness, necessary for calibrating pumps and motors within the equipment. It provides a reliable means to ensure that shims are of the correct thickness, which is necessary for achieving optimal performance and maintaining proper alignment of components by allowing accurate measurement, the Gauge Plate helps in setting the correct tolerances and adjustments needed for effective operation.

Attributes:
• Helps maintain proper clearance between moving parts in pumps and motors.
• Provides reliable measurement of shim thickness.

Applications:
The Gauge Plate is used to measure shim thickness for the calibration of pumps and motors. It is used in maintenance procedures to ensure proper alignment and functionality.

• Outer Diameter (mm): 24.5

• Outer Diameter (in): 0.965

• Inner Diameter (mm): 2.6

• Inner Diameter (in): 0.102

• Thickness (mm): 9.1

• Thickness (in): 0.358

• Hole Size (mm): 3.18

• Hole Size (in): 0.125

• Weight (kg): 0.032

• Weight (lb): 0.071

• Material: Stainless Steel
