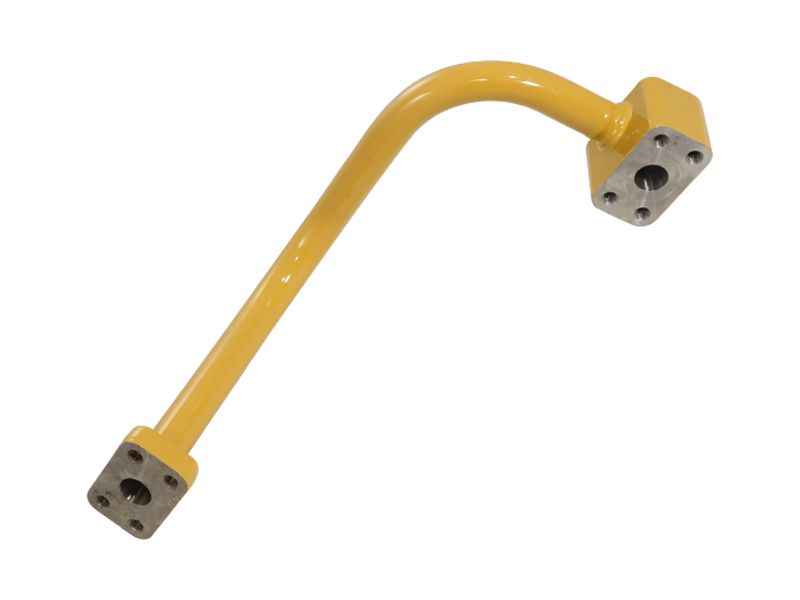

371-3778: ТРУБКА В СБОРЕ

The Lift Cylinder Lines Tube is designed to convey hydraulic fluid between the hydraulic system and lift cylinders. It is installed within the hydraulic system of equipment, connecting the hydraulic pump or valve block to the lift cylinders. Hydraulic fluid is pressurized and directed through these tubes to extend or retract the lift cylinders, thereby raising or lowering the attached equipment. The tubes ensure efficient fluid transmission and reliable operation, contributing to the overall performance and productivity of the equipment.

Attributes:
• Provides leak-proof connections.
• Smooth inner surface for fluid flow.
• High-pressure capability.
• Withstand 41370-kilopascal relief valve pressure.

Applications:
The Lift Cylinder Lines Tube is used to transmit hydraulic fluid pressure to lift cylinders, enabling controlled lifting and lowering of loads.

• Material: STEEL

• Outer Diameter (mm): 34

• Outer Diameter (in): 1.34

• Approximate Overall Length (mm): 624
