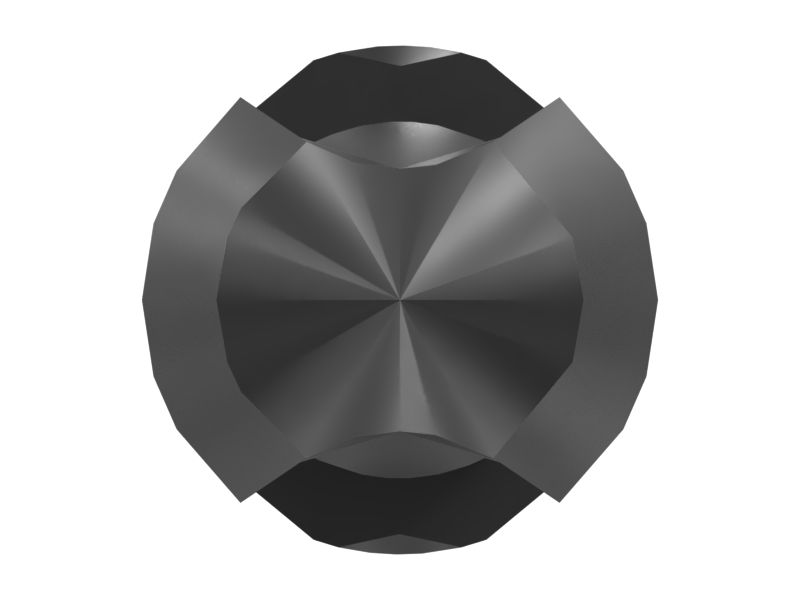

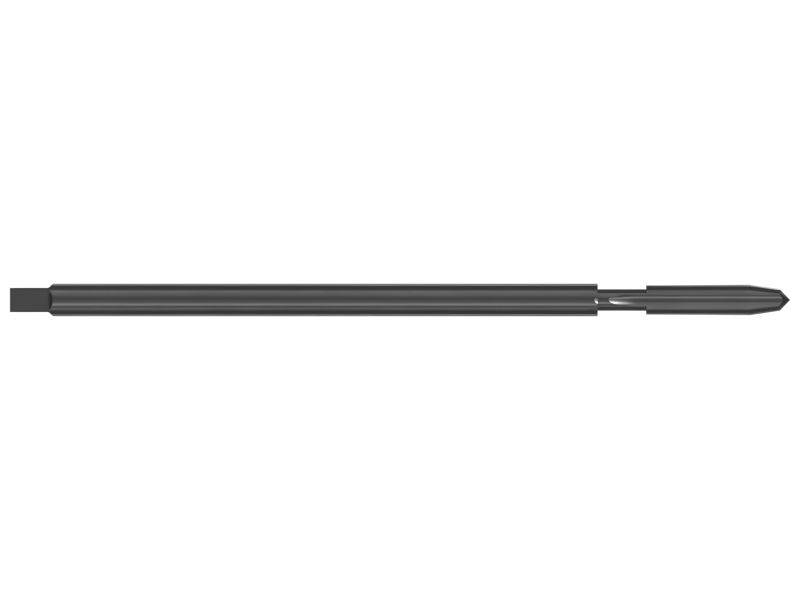

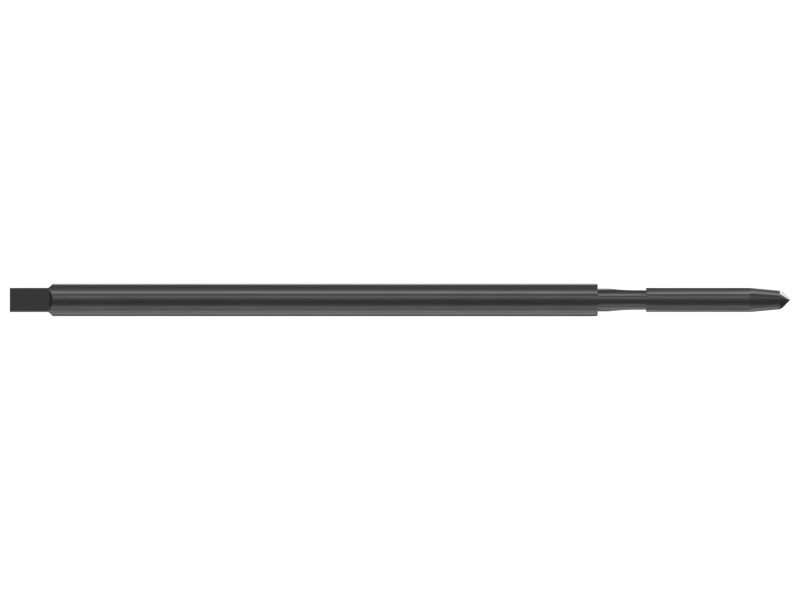

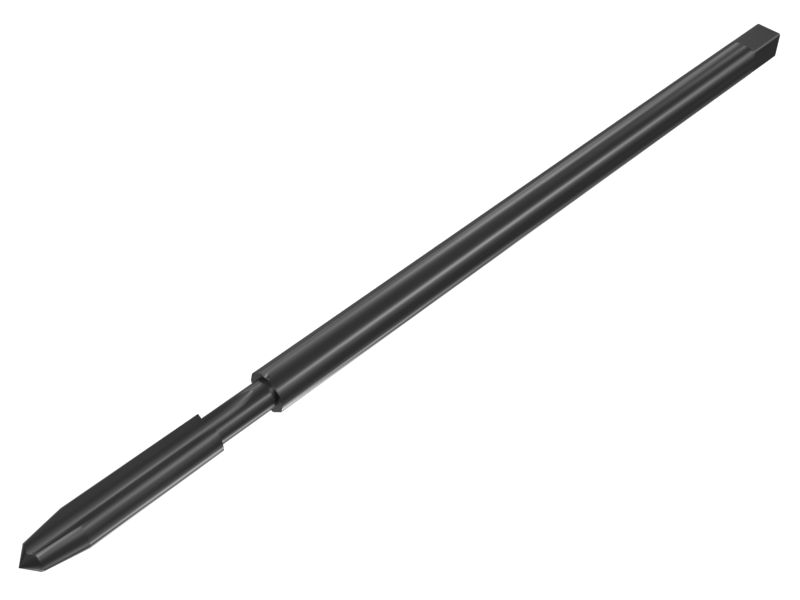

370-8733: 156mm Length Shank Tap

The Shank Tap is an integral tool for creating partial threads inside injector sleeves through two holes in the injector plug. By aligning with the designated holes, this tool threads the injector sleeve, preparing it for subsequent processes. The laser-etched marking along its shank acts as a visual indicator, ensuring that the operator does not exceed the necessary depth during threading. Going beyond this mark causes the tap to break, which results in damage to both the tool and the injector sleeve. The tool operates in conjunction with the injector plug, allowing for the correct formation of threads necessary for proper assembly and installation of components.

Attributes:
• Provides a clean, partial thread in the injector sleeve.
• Laser-etched depth indicator provides visual guidance.
• Facilitates smooth thread creation in hard-to-reach locations.

Applications:
The Shank Tap is used to facilitate the creation of partial threads within the injector sleeve, ensuring proper assembly and connection between the injector plug and sleeve by enabling controlled tapping.

• Length (mm): 156

• Length (in): 6.142

• Outer Diameter (mm): 6.4

• Outer Diameter (in): 0.252

• Thread: M6x1

• Weight (kg): 0.034

• Weight (lb): 0.075

• Material: Steel,Carbon Steel
