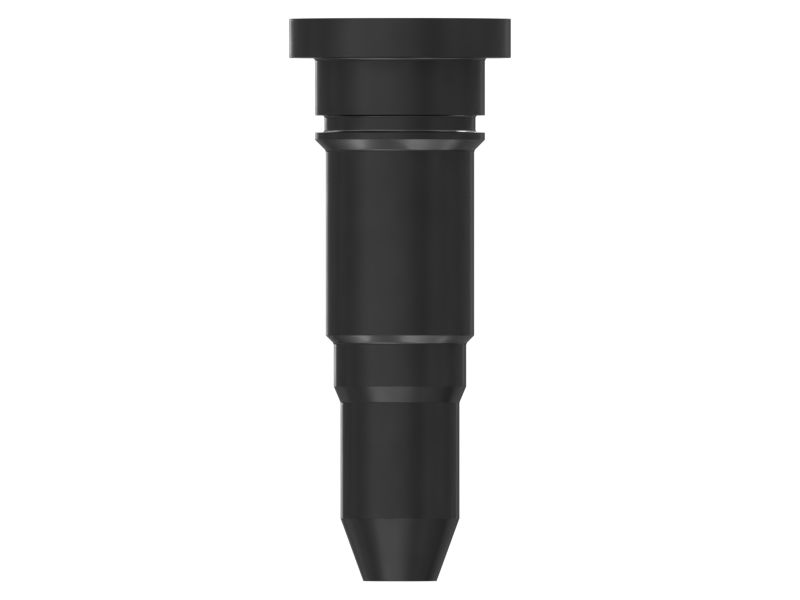

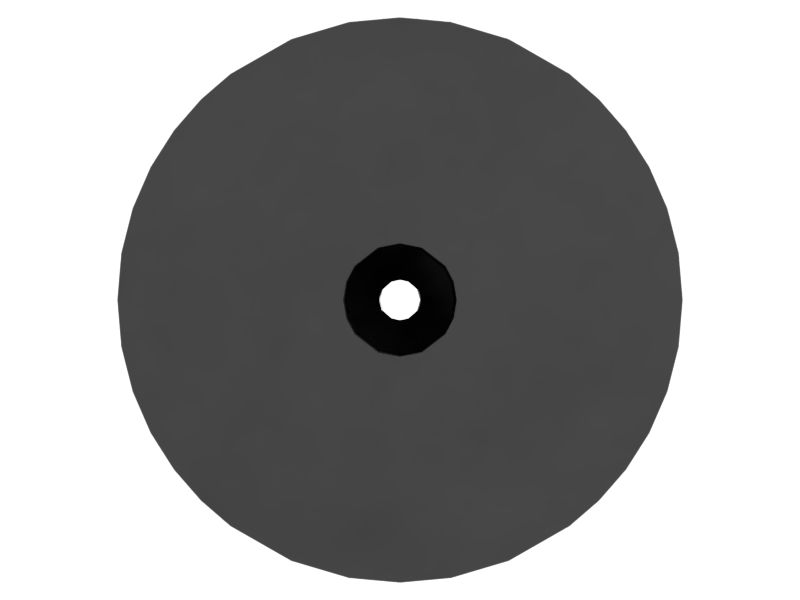

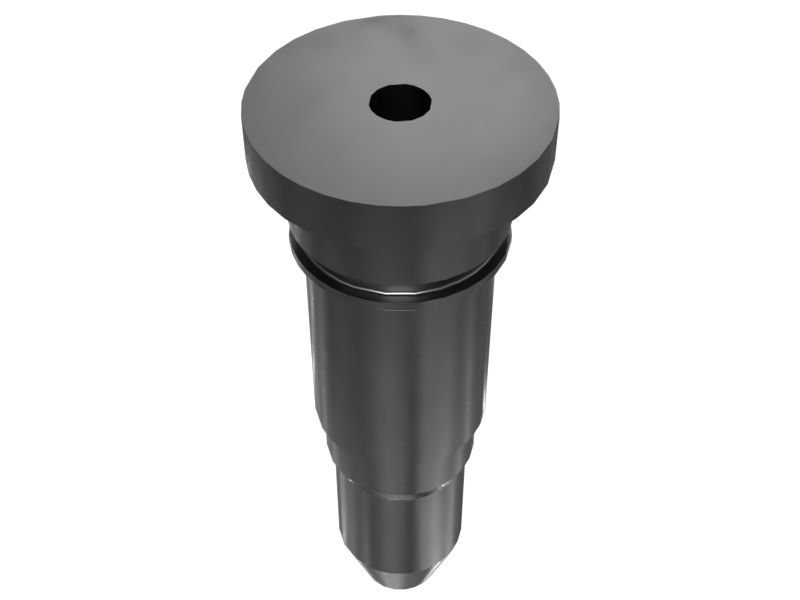

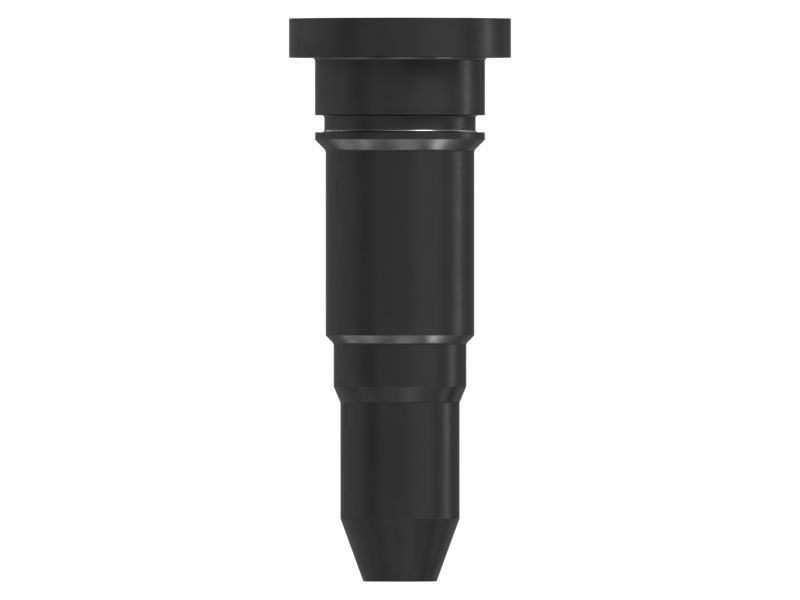

370-2284: Dummy Injector Plug Tool

The Dummy Injector Plug Tool is used in equipment engines to simulate the presence of a fuel injector without injecting fuel. This tool is required during engine diagnostic and testing procedures, allowing technicians to identify issues related to fuel injection systems without the risk of fuel entering the combustion chamber. It fits securely in place of the injector and seals the combustion chamber, maintaining the correct pressure and preventing air leaks. The tool is often used in scenarios where one or more cylinders need to be isolated during engine performance analysis. The primary function of the Dummy Injector Plug Tool is to temporarily replace the fuel injector in an engine, sealing the combustion chamber and allowing for accurate testing and diagnosis of the engine’s fuel injection system. It helps in isolating problems within specific cylinders or the fuel injection system without introducing fuel into the engine.

Attributes:
• Installs in place of fuel injector and has 1/4"-18 National Pipe Taper Fuel tapped port to allow for leak checking of cylinder head.
• Ensures accurate sealing of injector ports during engine testing.
• Prevents contamination of the combustion chamber by blocking fuel and debris.
• Provides a tight and secure fit to prevent air leakage.

Applications:
The Dummy Injector Plug Tool is used in the engine compartment at the location of the fuel injectors. It is installed in place of the injector during the diagnostic and testing of the cylinder pressure leak test procedure.

• Inner Diameter (mm): 4.7

• Inner Diameter (in): 0.185

• Outer Diameter (mm): 62

• Outer Diameter (in): 2.441

• Height (mm): 157.37

• Height (in): 6.196

• Internal Thread: 1/4"-18 NPTF

• Weight (kg): 1.563

• Weight (lb): 3.446

• Material: Steel,Low Alloy Steel,Coating Mixed
