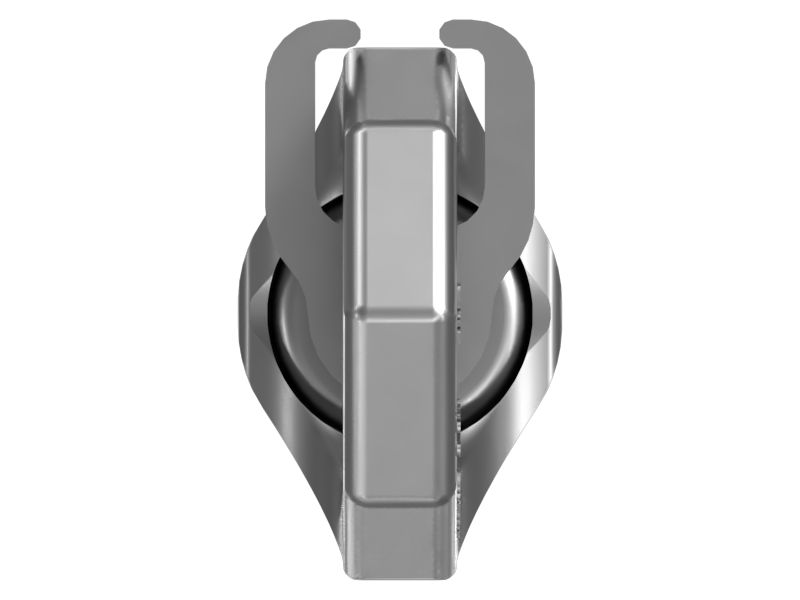

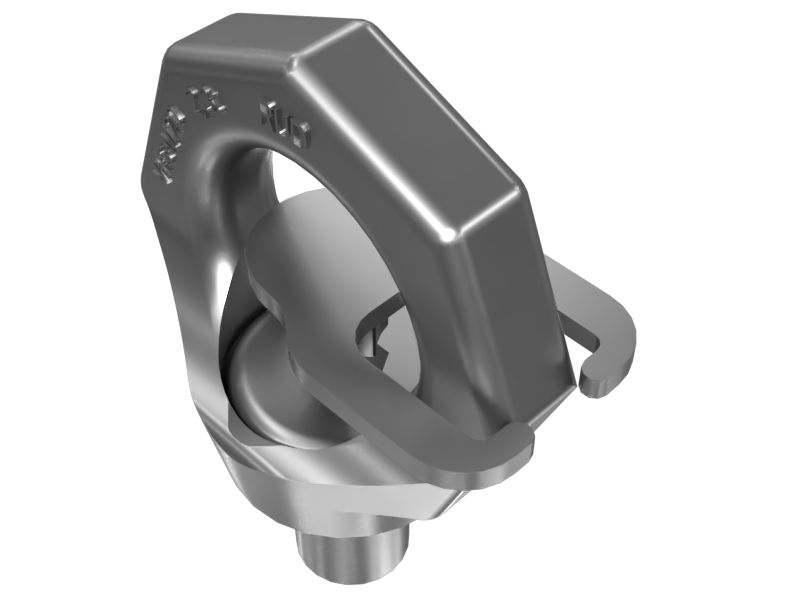

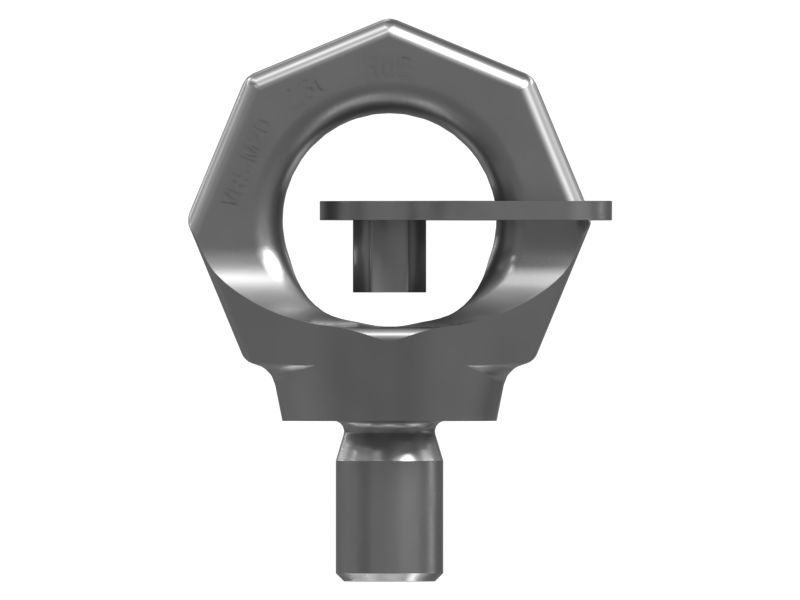

369-5916: M20 Lifting Eyebolt

The Lifting Eyebolt is used for safely lifting and handling engine and transmission parts during maintenance and replacement procedures. It provides a secure attachment point for lifting equipment and enables the efficient and controlled movement of large components. It withstands substantial loads and stresses, ensuring reliable performance and safety during operations. It features an eye through which lifting hooks or slings are attached, allowing for stable and balanced lifting of engine and transmission assemblies.

Attributes:
• Used with lift components with M20 x 2.5 threaded lifting hole.
• Eyebolt is European Union compliant, CE marked.
• The working load limit is 2.3 tons at a 90-degree lifting angle.

Applications:
The Lifting Eyebolt facilitates the safe and efficient removal and installation of engine and transmission components by offering a reliable point of connection, allowing technicians to lift and maneuver parts with accuracy, reducing the risk of damage.

• Overall Length (mm): 79.1

• Overall Length (in): 3.114

• Overall Width (mm): 75

• Overall Width (in): 2.953

• Overall Height (mm): 105.1

• Overall Height (in): 4.138

• Thread: M20

• Weight (kg): 0.56

• Weight (lb): 1.235

• Material: Carbon Steel
