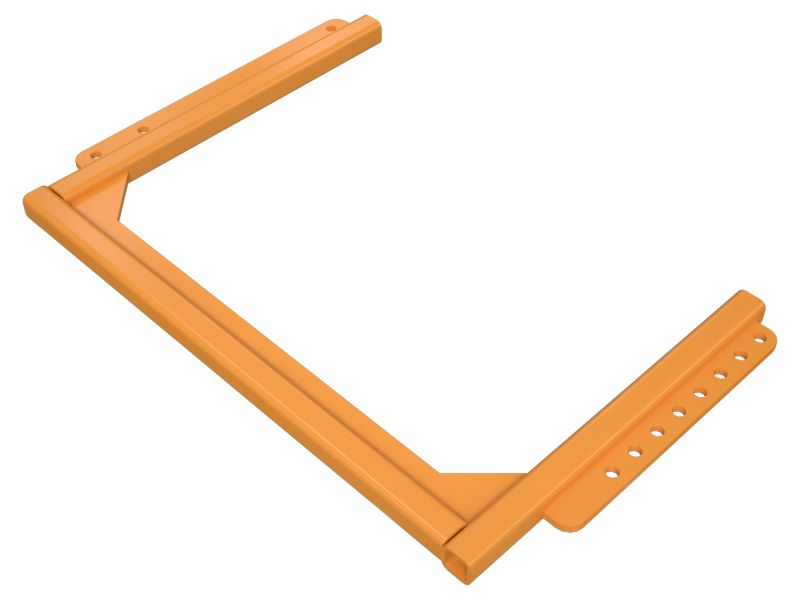

368-0005: C-Frame Manipulator Tool

The C-Frame Manipulator Tool is a lifting tool used for the efficient handling of heavy components in assembly operations. Its unique C-shaped frame design allows for easy access to workpieces, facilitating tasks such as lifting, rotating, tilting, and positioning with high precision. The tool is equipped with hooks and support rials enabling operators to manipulate loads safely and efficiently. The primary function of the C-Frame Manipulator Tool is to facilitate the safe and efficient handling of heavy and bulky components. It allows operators to lift, rotate, tilt, and position parts with precision, reducing the need for manual labor and improving workplace safety.

Attributes:
• Lift loads up to 750 pounds ( 340.2 kilograms)
• Reduces operator fatigue and increases productivity.
• Compact design and easy to integrate into existing setups.

Applications:
The C-Frame Manipulator Tool is located at strategic points on equipment where lifting operations are required. These include attachment points on the chassis, engine block, hydraulic components, and other large assemblies that need to be lifted and positioned during maintenance or assembly.

• Overall Length (mm): 787.4

• Overall Length (in): 31

• Overall Width (mm): 50.8

• Overall Width (in): 2

• Overall Height (mm): 1117.6

• Overall Height (in): 44

• Weight (kg): 28.61

• Weight (lb): 63.07

• Material: Structural Steel,Carbon Steel,Alloy Steel
