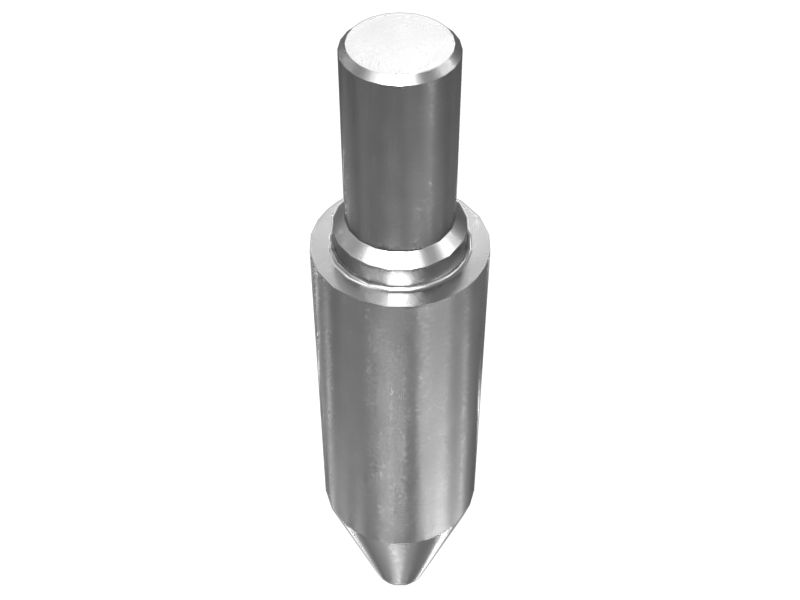

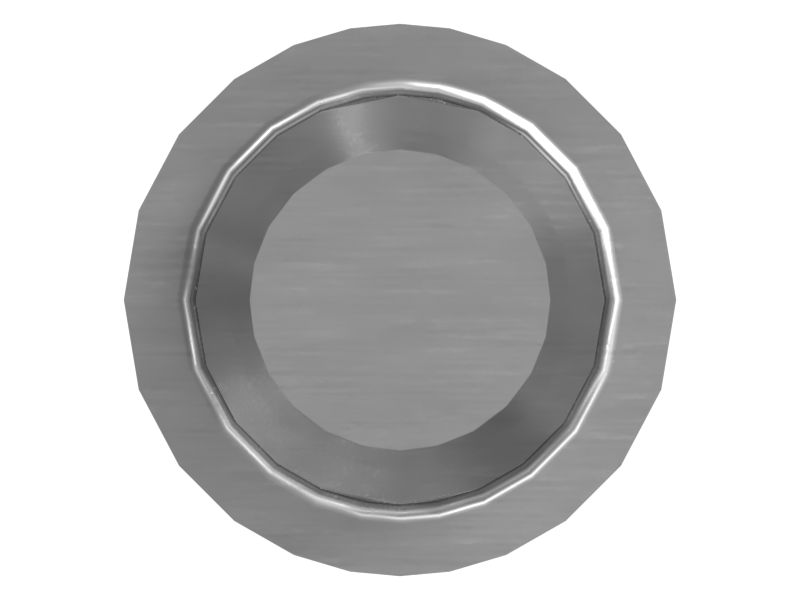

366-1820: Manifold Alignment Pin

The Manifold Alignment Pin is a tool used in the assembly and maintenance of exhaust manifolds in the equipment. It ensures accurate alignment and positioning of the manifold, facilitating a smooth and efficient assembly process. By providing an accurate guide, the alignment pin prevents misalignment and potential damage to the manifold and adjoining parts.

Attributes:
• Provides a secure hold to prevent misalignment of manifolds.
• For use with tier four manifolds 14-millimeter diameter holes at cylinders 2 and 5.
• Ensures safe and correct alignment of manifolds to avoid errors.

Applications:
The Manifold Alignment Pin is used during the assembly and disassembly processes of the exhaust manifold, ensuring proper alignment and positioning within the exhaust system of the equipment.

• Length (mm): 63

• Length (in): 2.48

• Pin Diameter (mm): 13.8

• Pin Diameter (in): 0.543

• Material: Steel,Carbon Steel

• Weight (kg): 0.051

• Weight (lb): 0.112
