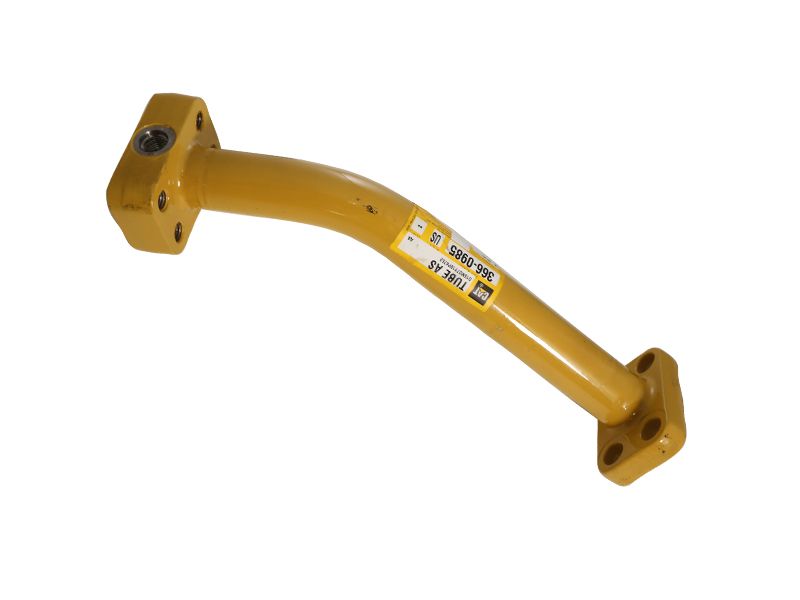

366-0985: ТРУБКА В СБОРЕ

A Coupler Hydraulic Lines Tube Assembly facilitates the channeling of hydraulic fluid to power the hydraulic cylinder and attachments located on the front of the machine. The tube is routed along the structure to minimize interference with other components and moving parts located on the frame. The tube ensures smooth hydraulic fluid flow and pressure drops. The assembly includes coupling and flange on both ends to ensure a secure and leak-free connection.

Attributes:
• Handle high pressure without deforming or breaking and provide leak leak-free connection
• Helps prevent fluid pressure fluctuations and ensures a reliable fluid supply to the hydraulic components
• Withstands relief valve pressure of 35000 kPa

Applications:
A Coupler Hydraulic Lines Tube Assembly is used to serve as a conduit for the flow of fluid to actuate the coupler thereby controlling the extension and retraction of the cylinder.

• Material: STEEL

• Outer Diameter (mm): 34

• Outer Diameter (in): 1.34

• Approximate Overall Length (mm): 334
