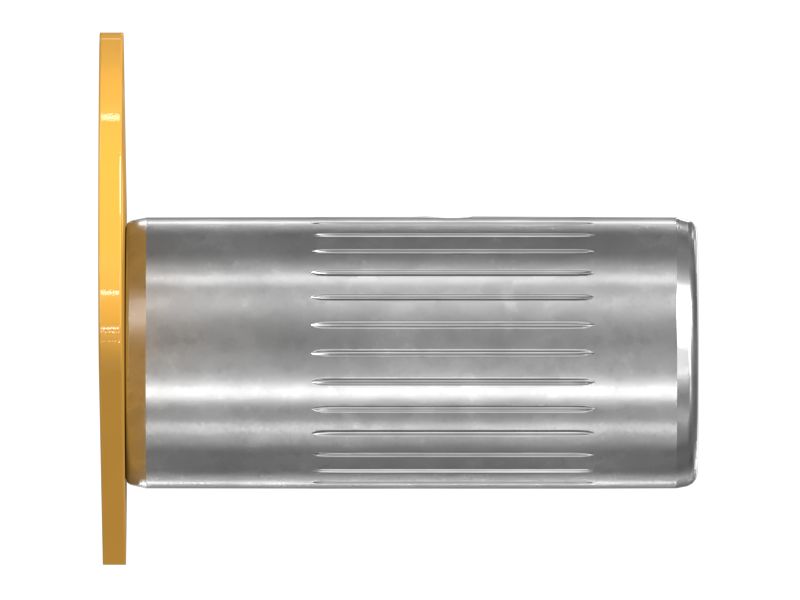

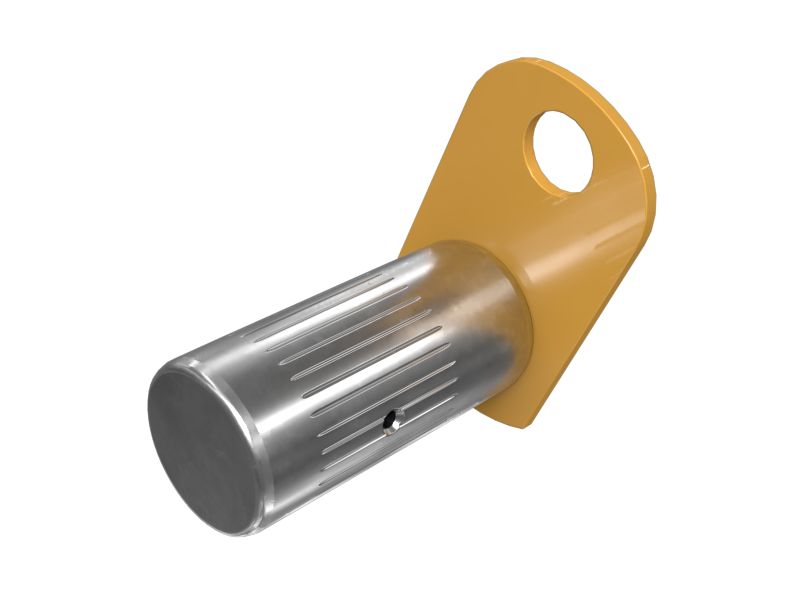

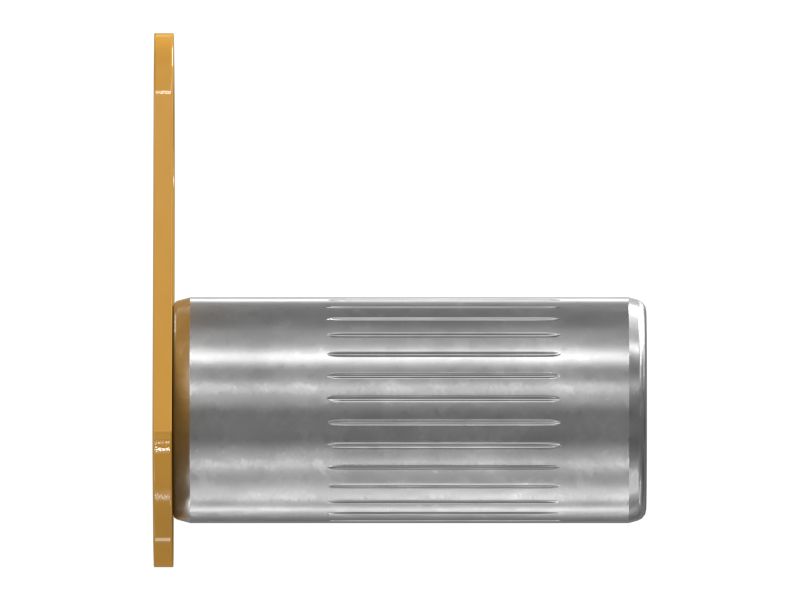

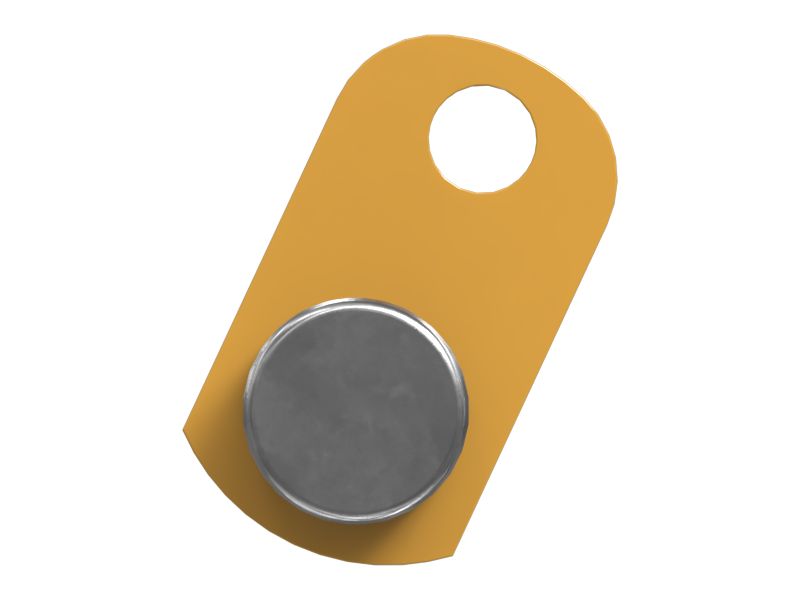

365-8332: Pin Assembly

Description:
Cat® Machine Linkage Pins support rotational movement between machine frames, linkages and work tools. They are found wherever rotation must occur between two structures. Genuine Cat Pins and Sleeve Bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, heat treatment, surface treatments and finish to each part to enable them to work and wear effectively with all the other neighboring and dependent parts.
Cat Linkage Pins are machined from high grade steel bar and hardened for exceptional strength and wear life. They work as part of the pin joint system for your specific Cat machine and are tested and proven in the world's most severe applications. The surface hardness, finish and plating are selected for optimum performance with the sleeve bearing. They result in a lower overall cost, outstanding strength and fatigue life, superior resistance to abrasive wear, and exceptional protection against pin galling, even in high-load conditions.

Applications:
Cat® Hardened Linkage Pins are designed for conditions that require superior load carrying capacity, strength and wear resistance for longer pin joint life. Cat Linkage Pins are the top choice for maximum performance in demanding applications. They are designed to match to the mating sleeve bearing. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 145

• Overall Length (in): 5.71

• Overall Width (mm): 80

• Overall Width (in): 3.15

• Overall Height (mm): 131

• Overall Height (in): 5.16

• Pin Diameter (mm): 60

• Pin Diameter (in): 2.36

• Countersink Diameter (mm): 24

• Countersink Diameter (in): 0.94

• Hole Size (mm): 29

• Hole Size (in): 1.14

• Length to Pin Hole - A (mm): 71.8

• Length to Pin Hole - A (in): 2.83

• Weight (kg): 3.065

• Weight (lb): 6.76

• Material: Alloy Steel
