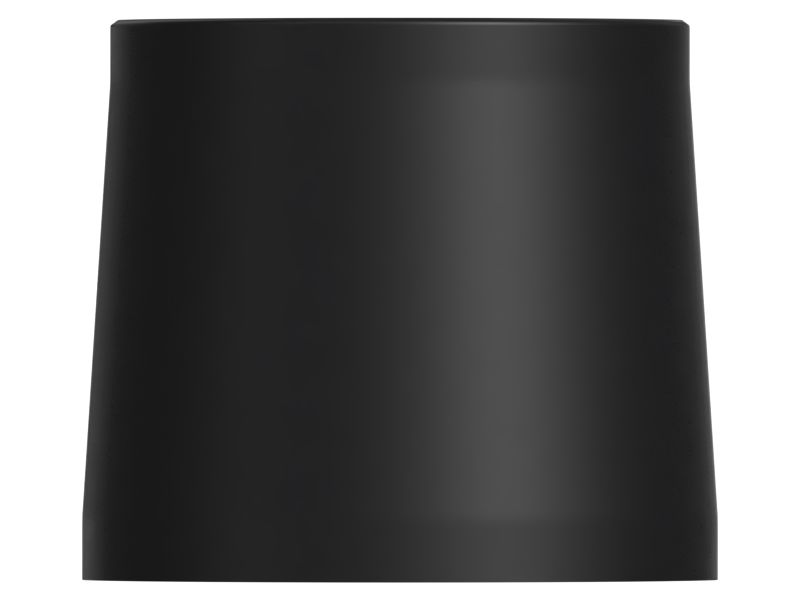

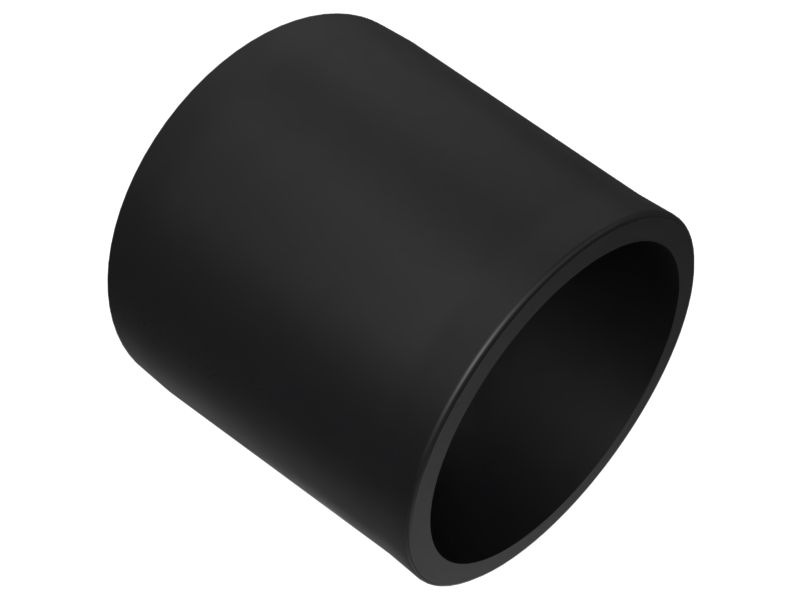

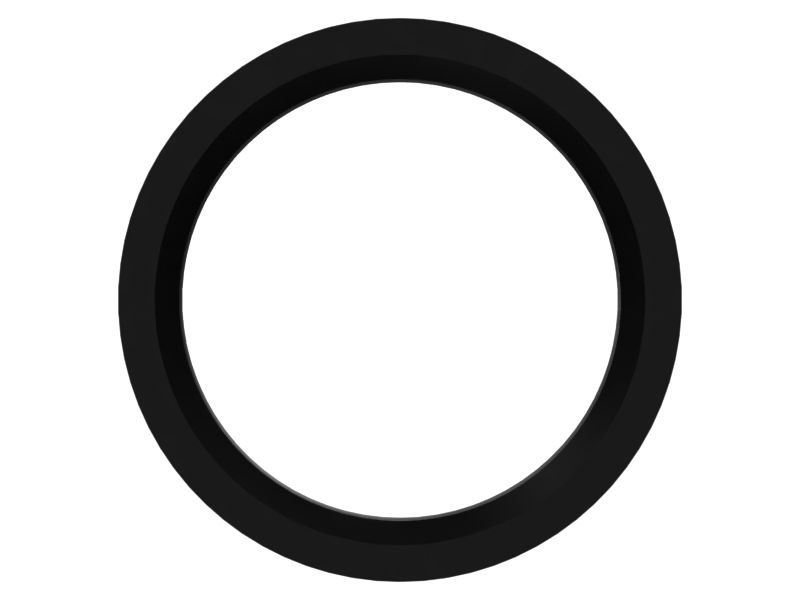

365-1766: Stick Cylinder Rod Seal Guide

The Stick Cylinder Rod Seal Guide is used during the assembly and maintenance of equipment stick cylinder for guiding seals onto the stick cylinder rod. The seal guide aligns the seal properly as it is installed, minimizing the risk of misalignment and damage. By maintaining accurate alignment, the tool ensures that the seal performs effectively, providing a leak-proof and secure seal around the rod. The tapered guide fits over the rod to prevent the seal from being damaged during installation.

Attributes:
• Directs the seal for accurate positioning within the cylinder rod.
• Facilitates easy installation and replacement of the cylinder rod seal.
• Ensures proper sealing to prevent hydraulic fluid leakage.
• Prevents damage to the sealing surface of the cylinder rod during operation.

Applications:
The Stick Cylinder Rod Seal Guide is used to ensure the accurate and efficient installation of seals onto the stick cylinder rod by guiding the seal into place preventing misalignment.

• Outer Diameter (mm): 64.95

• Outer Diameter (in): 2.557

• Inner Diameter (mm): 51

• Inner Diameter (in): 2.008

• Length (mm): 57.15

• Length (in): 2.25

• Material: Plastic,Nylon, 6, 6/12, 6/6 Plastic

• Weight (kg): 0.062

• Weight (lb): 0.137
