364-7972: ПЛАСТИНА В СБОРЕ

Description:

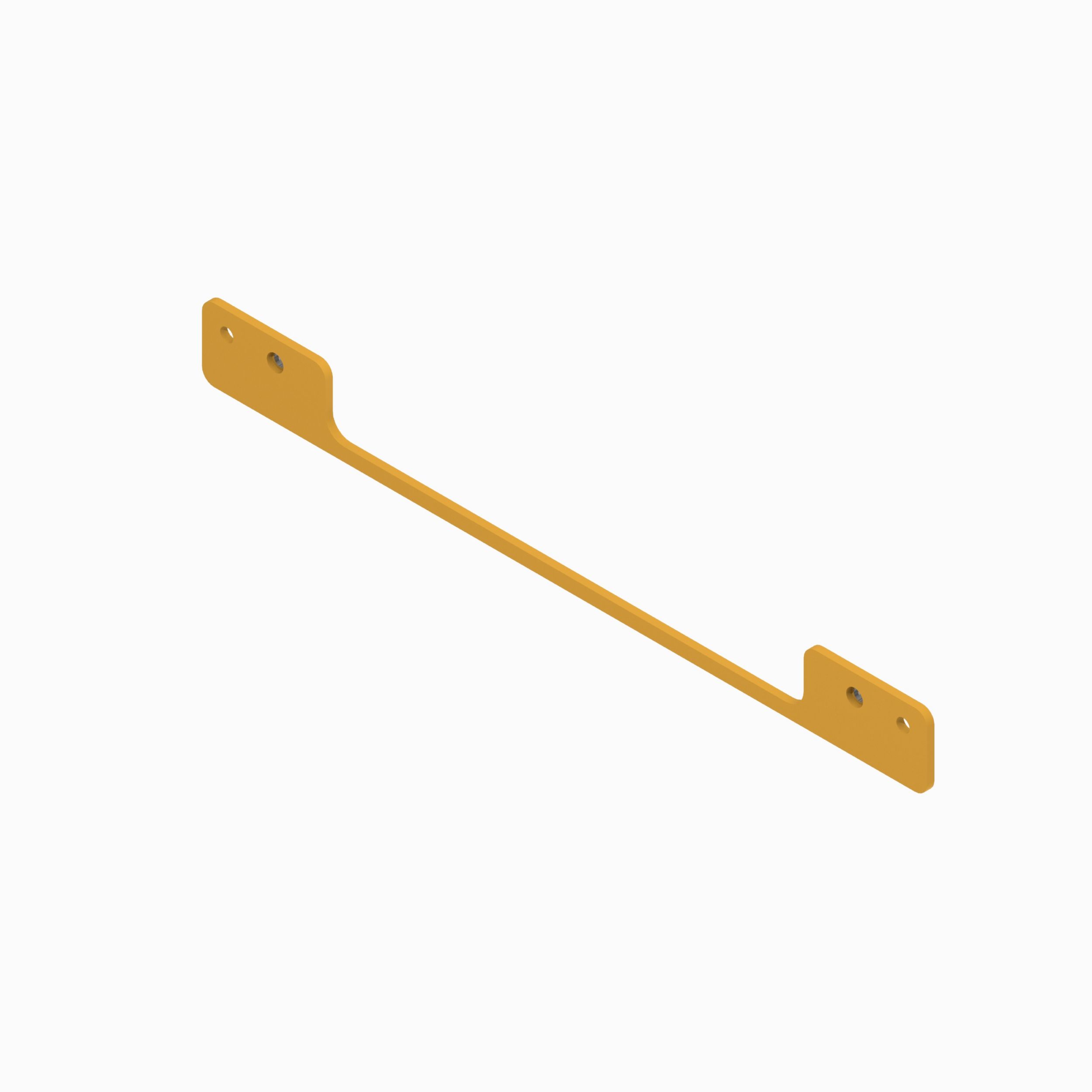

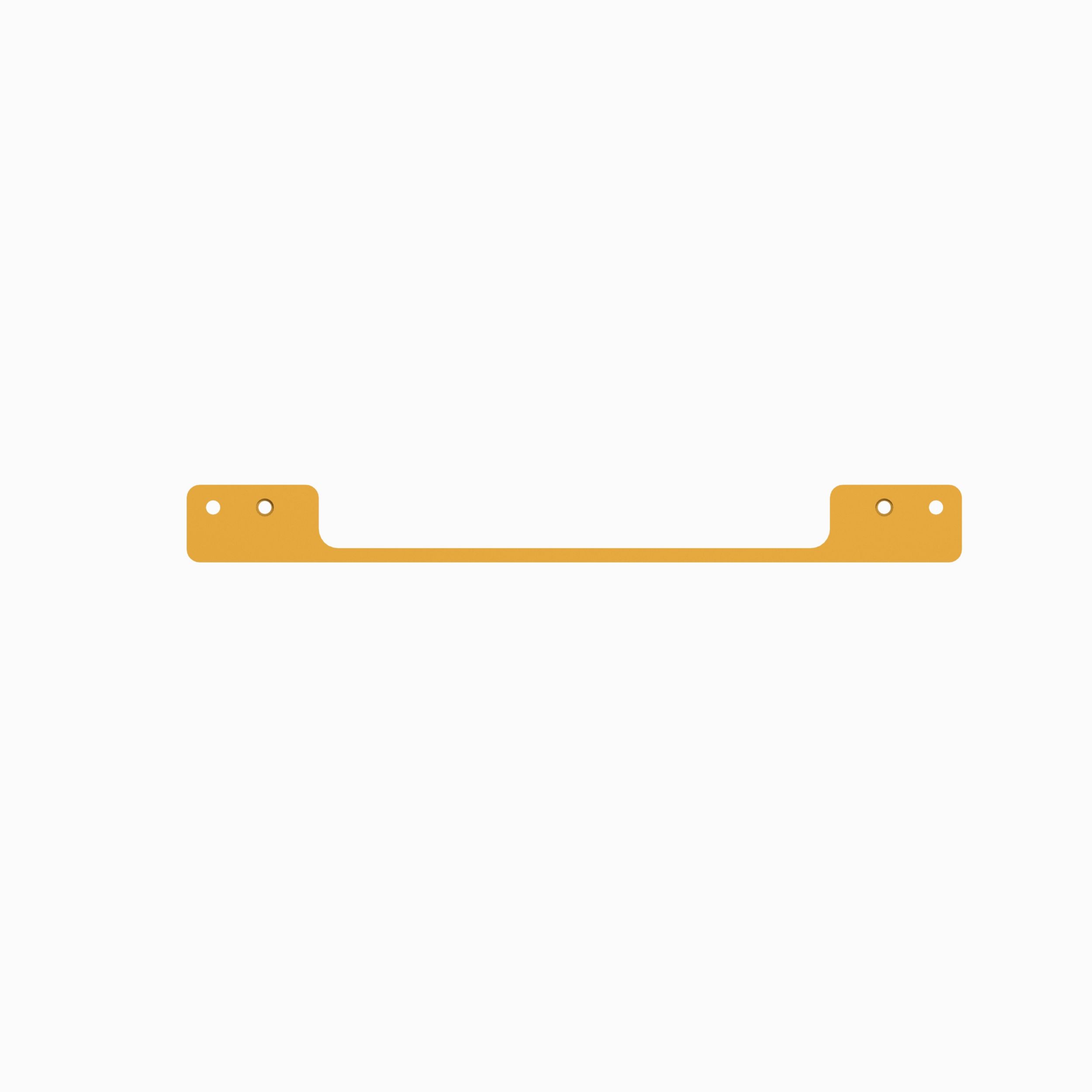

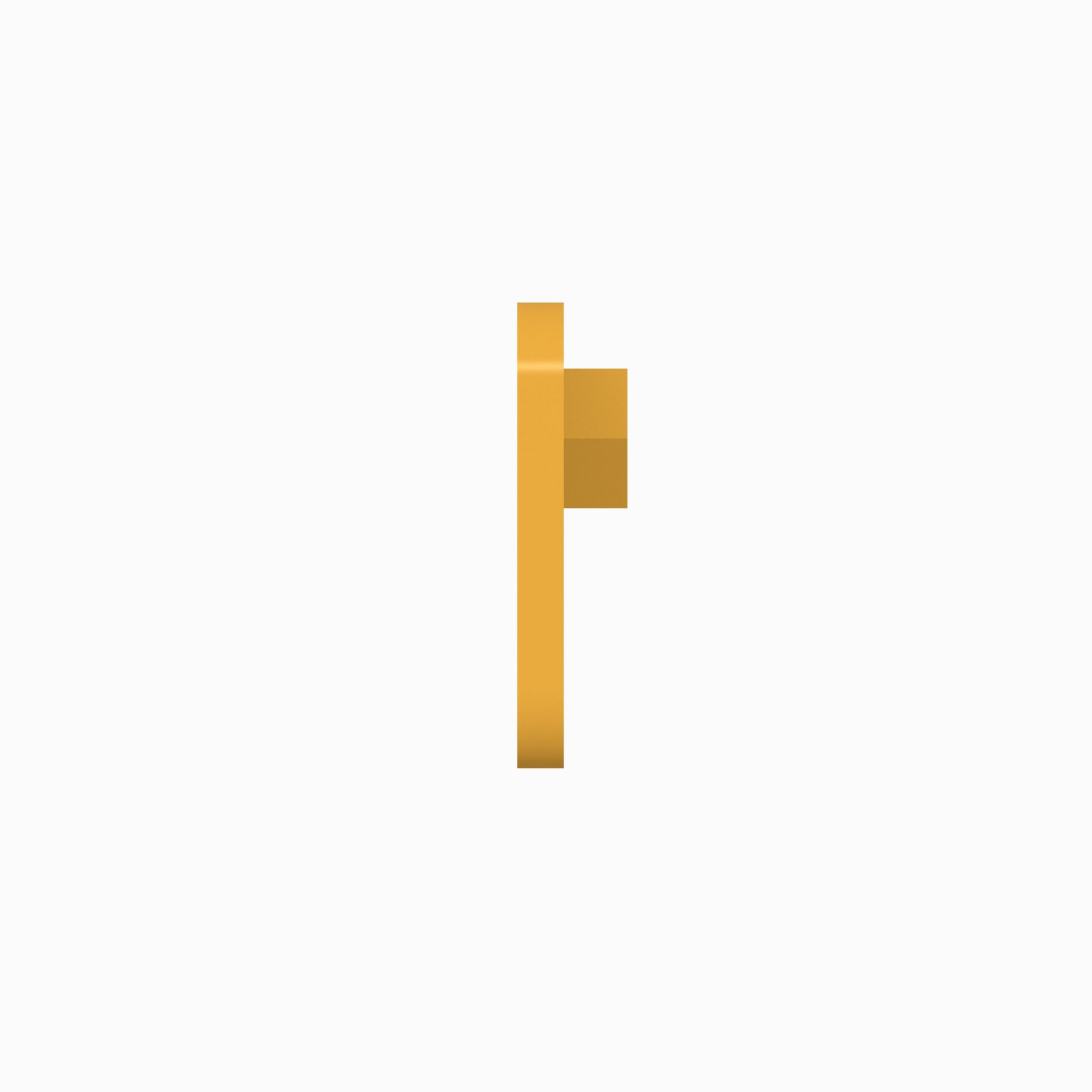

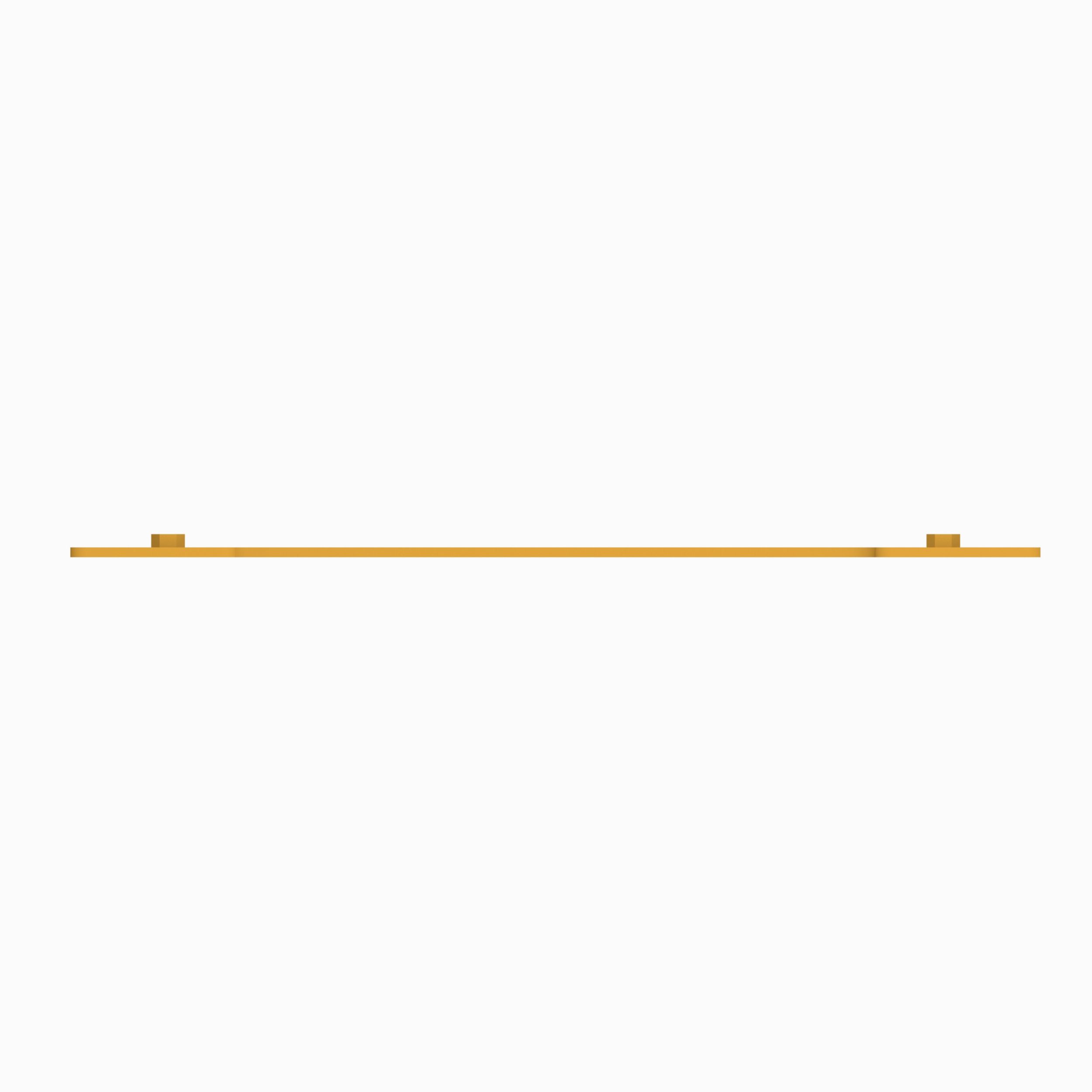

A Radiator Support Plate is a component used to provide additional support to the radiator. Plates can be made from various types of steel, including carbon steel, stainless steel, and alloy steel. The thickness of the plate can vary depending on the weight and size of the equipment it needs to support. Plates are typically drilled or punched with holes to accommodate bolts, screws, or other fasteners used to secure the equipment. Some plates may also be welded to the equipment to provide additional stability and support.

Attributes:
• Two M10x1.5 threaded nuts are welded together with the plate for mounting.
• Can withstand heavy loads and impacts.

Applications:
A Radiator Support Plate is used to hold the radiator in place and prevent it from moving or vibrating while the vehicle is in motion, mostly used in CAT 773E Trucks.

• Material: Steel,Alloy Mixed

• Overall Length (in): 23.58

• Overall Length (mm): 599

• Overall Width (in): 2.36

• Overall Width (mm): 60

• Thickness (in): 0.24

• Thickness (mm): 6

• Weight (kg): 0.78

• Weight (lb): 1.72
