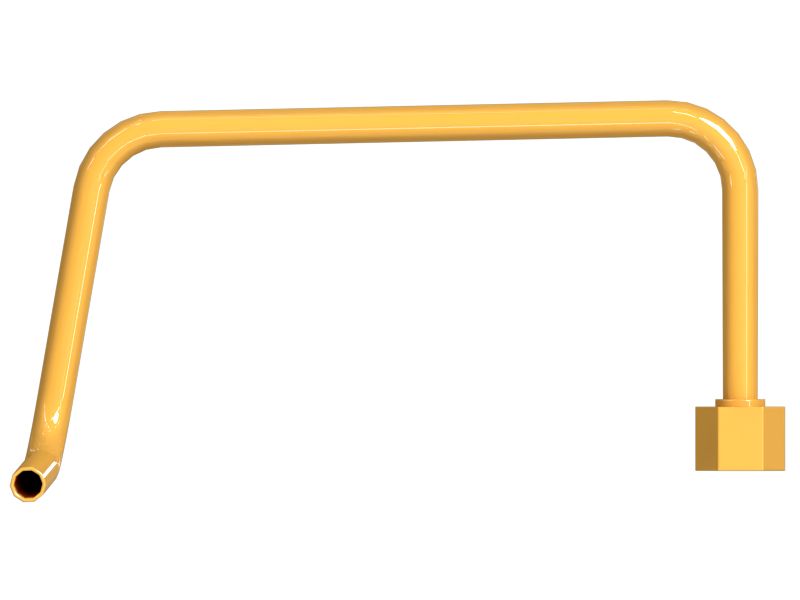

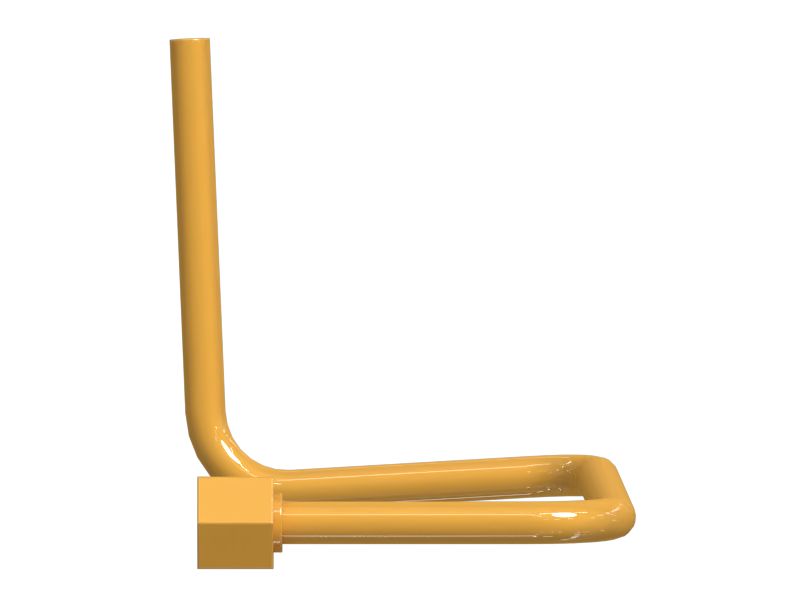

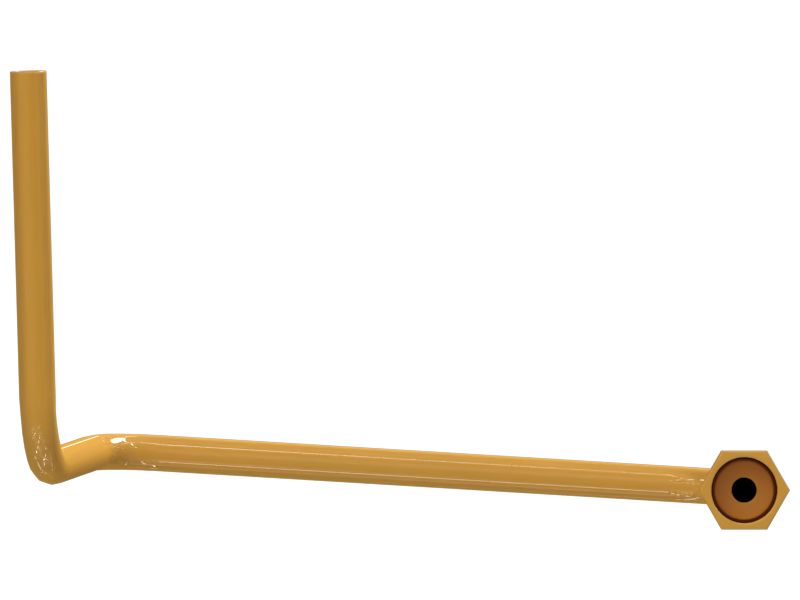

364-6979: Tube Assembly

Description:
Cat® Tubes Assemblies are held to the highest standards of quality and reliability. These rigid tube assemblies (also commonly referred to as pipes) are designed to convey liquids or gases and are precisely engineered for each unique application. Each Cat tube assembly utilizes superior materials and processes, fabricated specifically to withstand the application’s pressure and flow requirements which will ensure a long life and proper machine functionality.
Minimum Burst Pressure : 64168 kpa (9306.781 psi)
Tube Length : 43 mm (1.692 in)

Application:
Cat® Steel Tubes are used in applications where line flexibility is not required. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Length (mm): 120.6

• Overall Length (in): 4.75

• Overall Height (mm): 106.5

• Overall Height (in): 4.19

• Overall Width (mm): 205.2

• Overall Width (in): 8.08

• Hex Size (mm): 20.64

• Hex Size (in): 0.81

• Width (mm): 17

• Width (in): 0.67

• Thread Size (in): 11/16-16

• Outer Diameter (mm): 15.75

• Outer Diameter (in): 0.62

• Sleeve Inner Diameter or Thread (mm): 9.68

• Sleeve Inner Diameter or Thread (in): 0.38

• Sleeve Length (mm): 9.5

• Sleeve Length (in): 0.37

• Working Pressure (kPa): 21000

• Working Pressure (psi): 3045.798

• Weight (kg): 0.104

• Weight (lb): 0.23

• Material: Alloy Mixed
