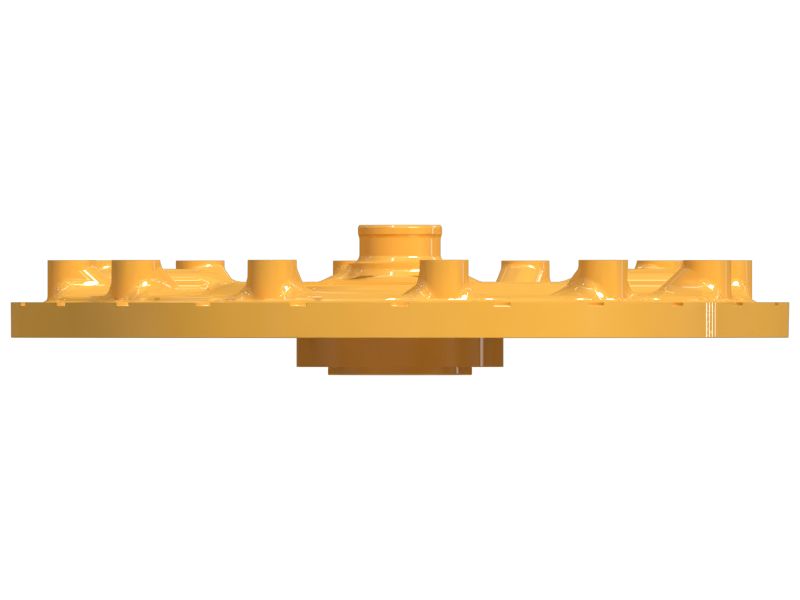

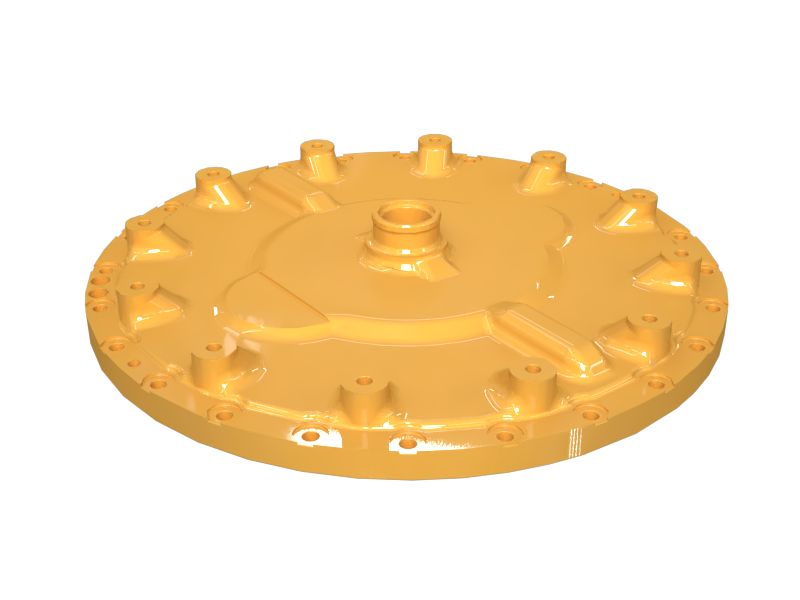

364-5469: КОЖУХ В СБОРЕ

Description:
Part # 364-5469 provides a clutch housing for the TC42833-ESLFT torque converter.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat housing assemblies provide a durable housing for clutch components in the drive train system of Cat machines.

Attributes:
• Clutch housing with sleeve bearing
• Cast iron housing
• Bearing Bore Diameter: 76.288 mm (3.003 in)
• Housing Outside Diameter: 478 mm (18.82 in)
• Width: 92 mm (3.62 in)
• Port Type: SAE -20 STOR, 1-5/8-12

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Cast Iron

• Bore Diameter (mm): 76.29

• Outside Diameter (mm): 478

• Width (mm): 92

• Bore Diameter (in): 3.00

• Outside Diameter (in): 18.82

• Width (in): 3.62

• Port Type: SAE -20 STOR, 1-5/8-12
