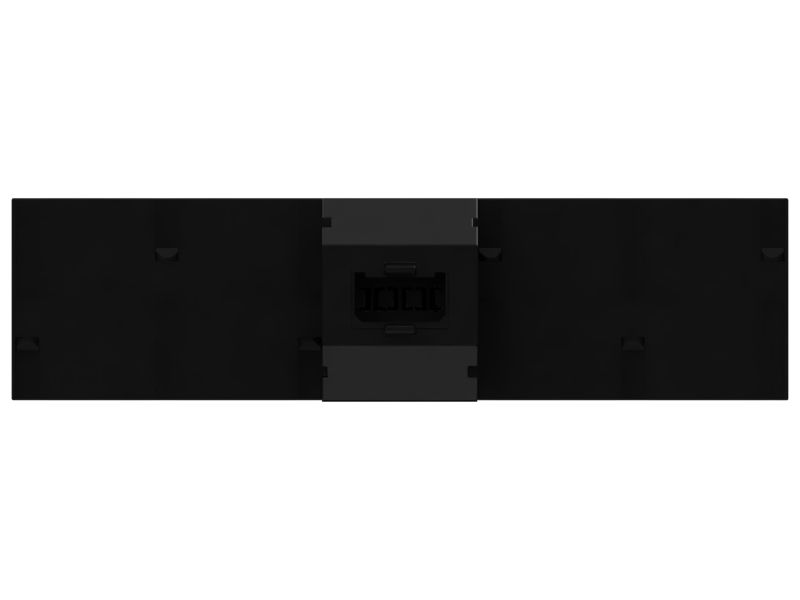

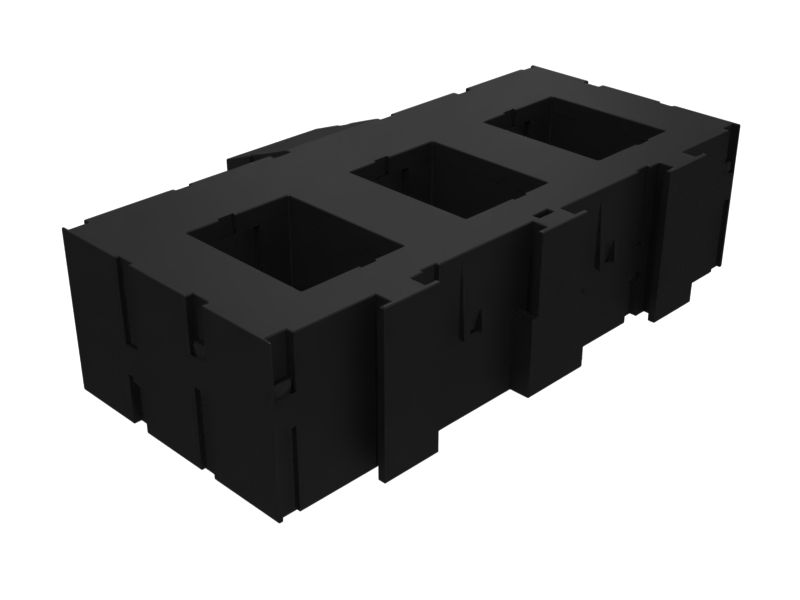

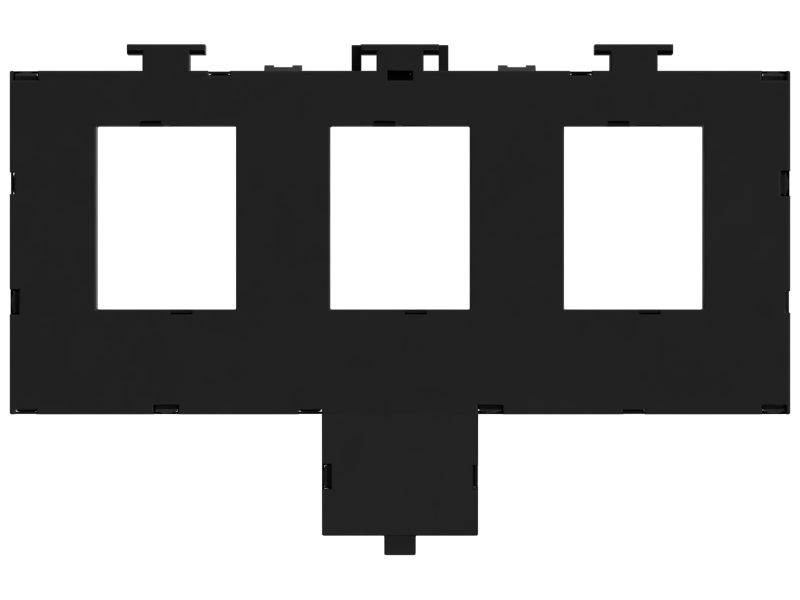

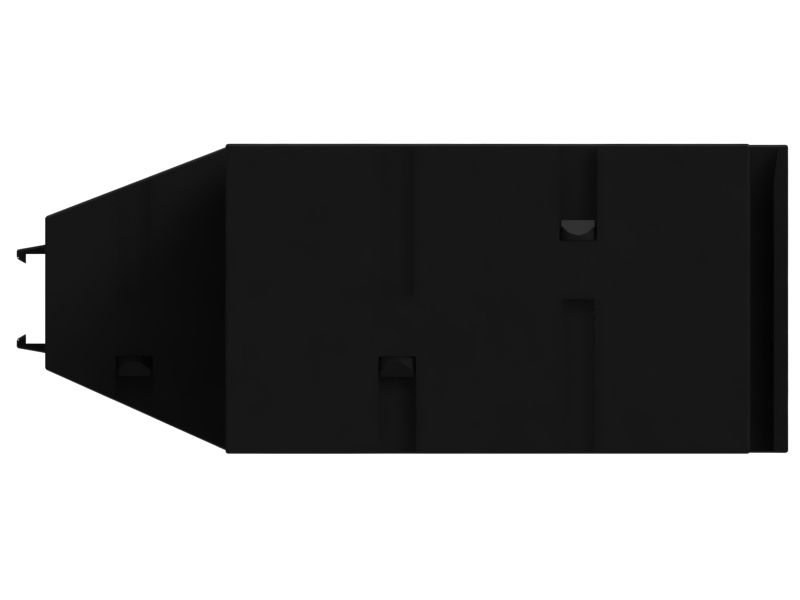

361-9095: ТРАНСФОРМАТОР

Description:
A 3-Phase 800/5 Ratio Current Transformer (CT) refers to a specific current transformer that has a turn ratio of 800:5. This ratio indicates the relationship between the primary current and the secondary current of the CT. In this case, the primary current is stepped down by a factor of 800, while the secondary current is reduced by a factor of 5. This means that for every 800 amps of current flowing through the primary winding, a proportional secondary current of 5 amps is generated.

Attributes:
• The primary current rating of 800 amps indicates the maximum current that the CT can handle on the primary side.
• The secondary current rating of 5 amps specifies the maximum current that can flow through the secondary winding of the CT.
• Burden connected to the secondary winding matches the specifications of the CT to maintain accuracy and reliable operation.

Applications:
A 3-Phase 800/5 Ratio Current Transformer measures or monitors the currents in a 3-phase electrical system and is mainly used in Cat 2206, 2506, C13, C15, PRO500, and XQP500 Generator Set, P450-6 Generator Set - 2206 Eu3a, P550-6 Generator Set - Perkins 2506 Eu3a.

• Length (in): 9.84

• Length (mm): 250

• Material: Plastic,Polyamide Plastic

• Overall Height (in): 6.11

• Overall Height (mm): 155.3

• Overall Width (in): 2.56

• Overall Width (mm): 65

• Weight (kg): 1.1

• Weight (lb): 2.43
