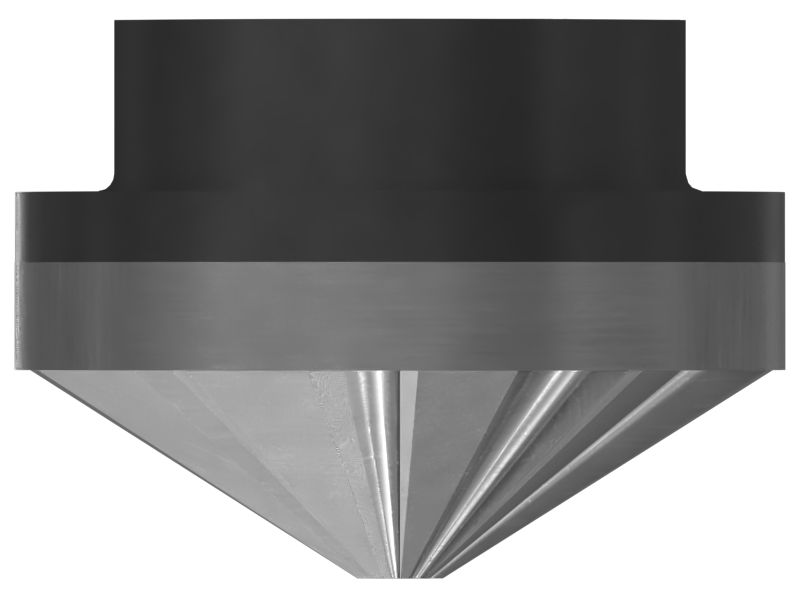

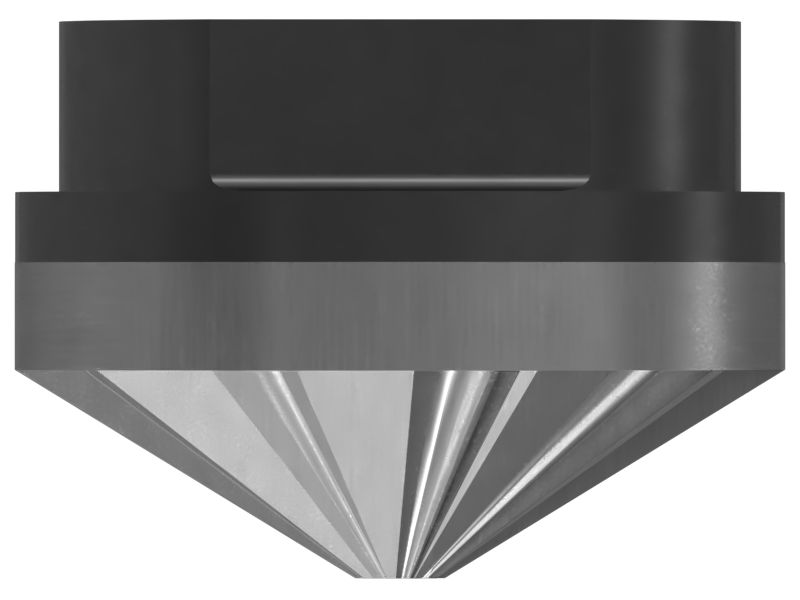

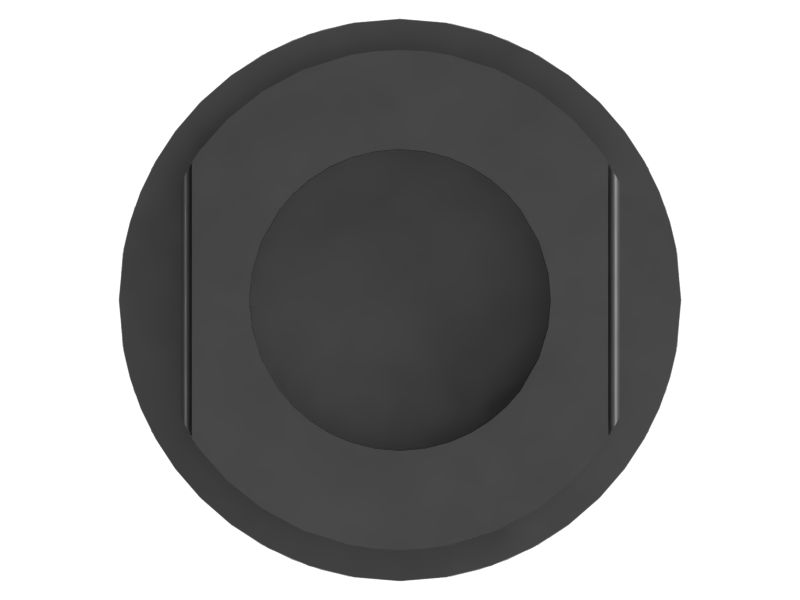

361-1591: 117-Degree Carbide Cutter

The Carbide Cutter is used in the maintenance and repair of hydraulic control valves, specifically for machining and reshaping the relief valve seats. This carbide cutter ensures that the valve seats are restored to their original specifications for maintaining the proper function of hydraulic systems. It ensures that the relief valves function correctly, as any imperfections in the seat lead to leaks, pressure loss, and reduced efficiency of the hydraulic system.

Attributes:
• Cutter features 10 teeth at a 117-degree angle with a zero-degree rake.

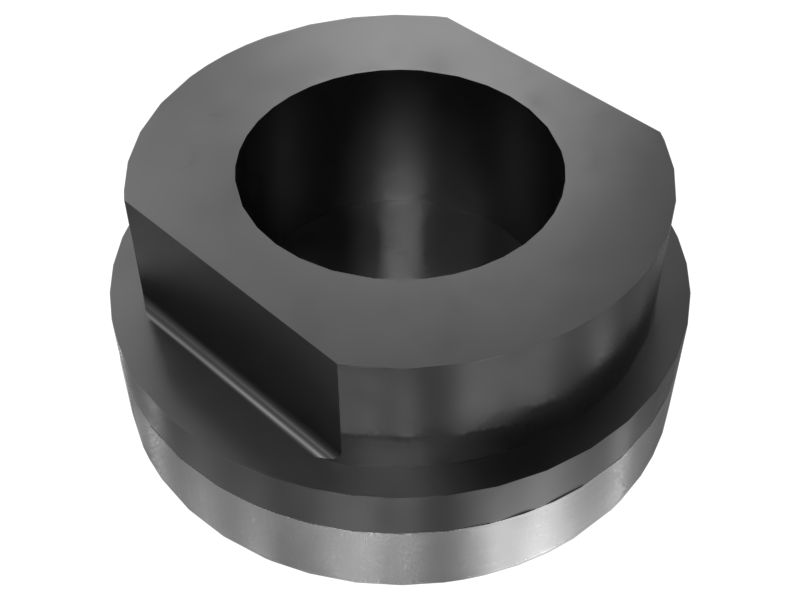

• Adapter assembly threads into the relief valve tool and then attaches to the line relief port on the main hydraulic control valve.
• Excellent wear resistance ensures extended tool life in demanding environments.
• Restore valve seat geometry to original specifications.

Applications:
The Carbide Cutter accurately cuts the valve seats, restoring them to their accurate shape and ensuring a tight seal when the valve is closed for the smooth operation of the equipment.

• Internal Thread: 1/2"-20-2B

• Weight (kg): 0.034

• Weight (lb): 0.075

• Material: Alloy Tungsten,Low Alloy Steel,Alloy Mixed
