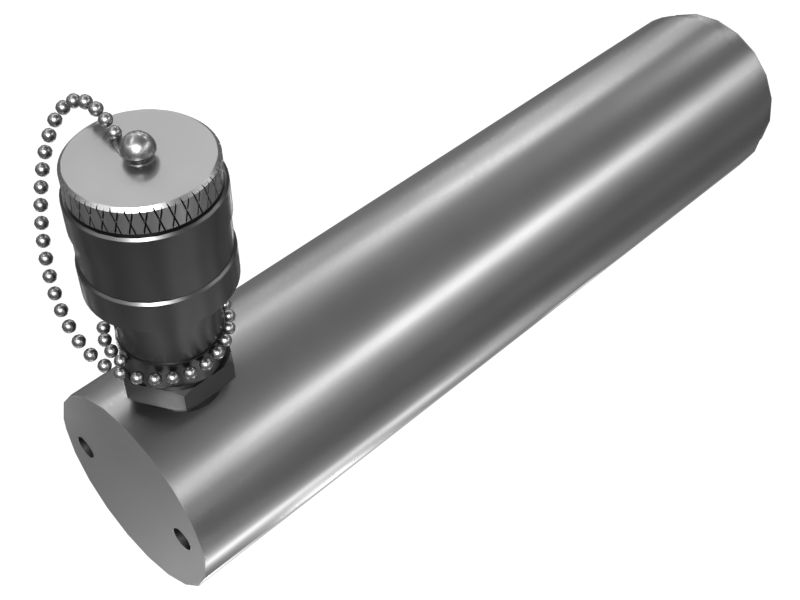

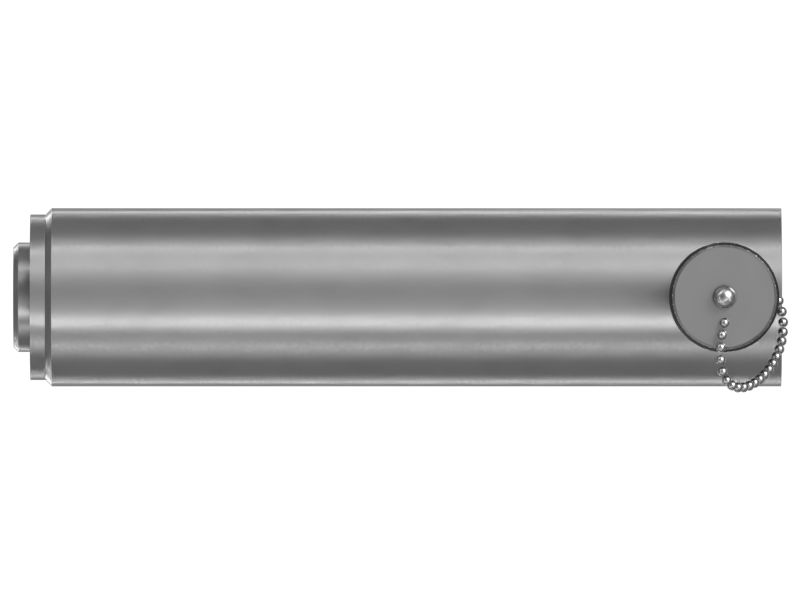

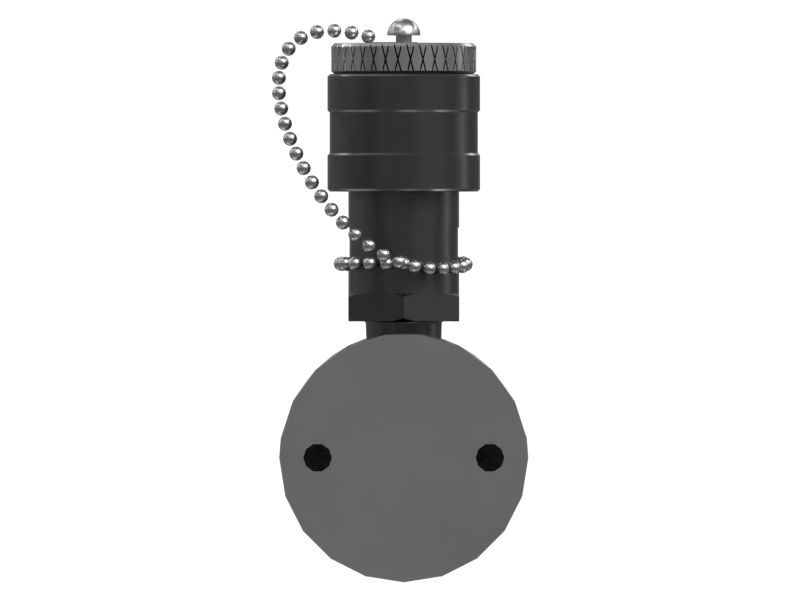

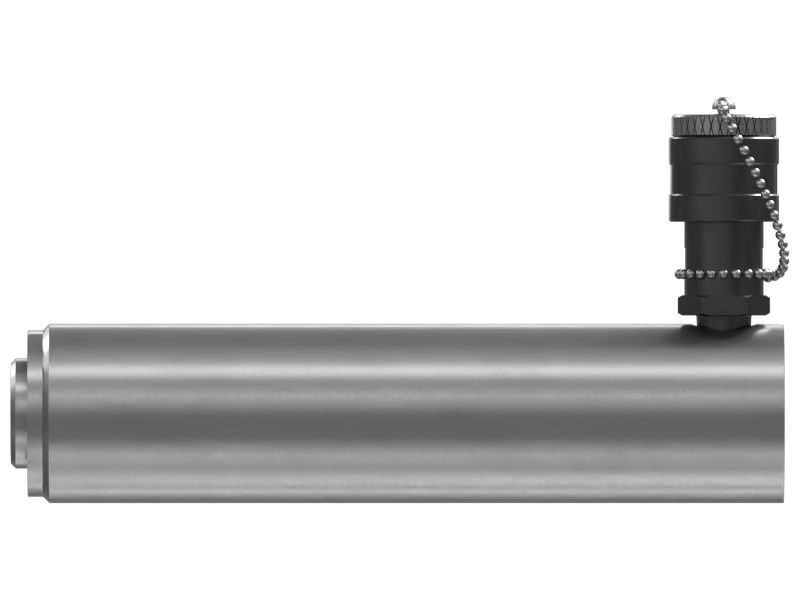

360-6957: Single Acting Hydraulic Pusher Cylinder

The Single Acting Hydraulic Pusher Cylinder is used to provide lifting force for elevating loads within the equipment. This hydraulic cylinder operates by using hydraulic pressure to generate a powerful lifting action, enabling it to handle large components with ease. By converting fluid power into vertical force, the cylinder ensures smooth and controlled lifting for tasks such as equipment maintenance, material handling, and component assembly.

Attributes:
• Provides 10.14 metric tons of lifting force.
• Features a 154.69-millimeter stroke length for accurate movement.
• Ensures smooth and controlled lifting operations.

Applications:
The Single Acting Hydraulic Pusher Cylinder is used to deliver powerful and accurate lifting force for raising loads, by converting hydraulic pressure into vertical movement, this cylinder enables efficient handling of large components and materials, improving operational efficiency and safety.

• Overall Height (mm): 130.81

• Overall Height (in): 5.15

• Internal Thread: 5/16"-18, 3/8"-18 NPTF, 1"-8

• Thread: 2-1/4"-14

• Bore Diameter (mm): 42.93

• Bore Diameter (in): 1.69

• Working Pressure (kPa): 68900

• Working Pressure (psi): 9993.1

• Weight (kg): 4.45

• Weight (lb): 9.811

• Material: Steel,Carbon Steel
